Power supply: 65 kW + 60 kW (circulating oil boiler)
Power: three phase 380 V 50 Hz; controlled power: 220 V or as per client request

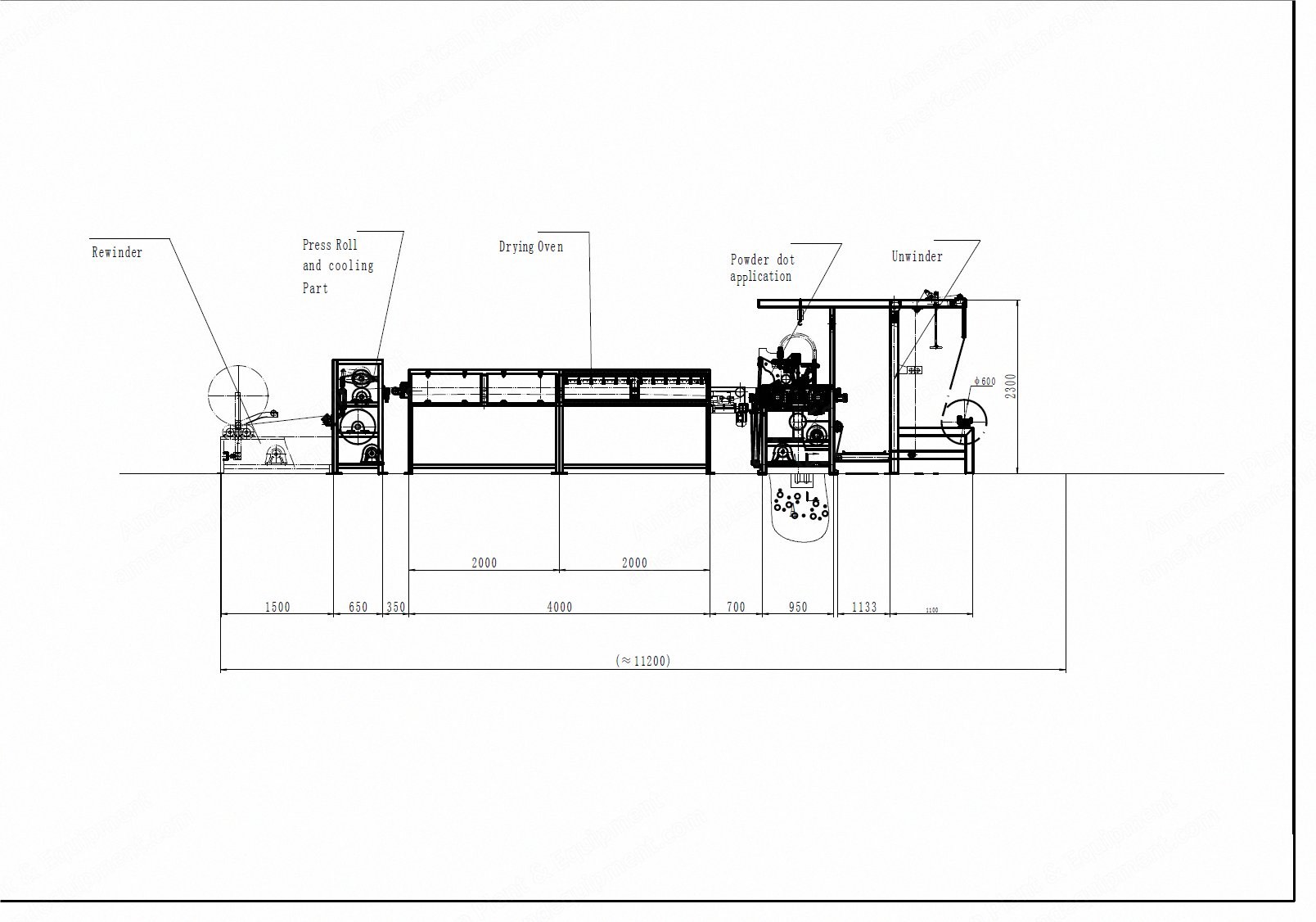

Unwinder
Unwind creel is suitable for flat fold or fabric roll
Ability to adjust fabric feeding tension with hand wheels
Photoelectric control on the front of the powder dot application unit
Operator’s board to feed fabric conveniently
Machine’s frame made of channel bar
5 guide rollers: 80 mm x 1800 mm diameter
Powder Dot Application
Consisting of pre-heating roller, main heating roller, engraved roller, and auxiliary heating roller and hopper
The movement of the heating roller, auxiliary heating roller and hopper are controlled by 3 sets of air cylinders: you can manually adjust the air pressure
Outer diameter of preheating roller, heating roller and auxiliary heating roller is 270 mm, the width is 2000 mm
They are heated by circulating oil
The surface temperature of heating roller can be set from 150 °C to 240 °C
Temperature of hot melt glue has a variation of less than ±3 °C
The machine is delivered with 2 engraved rollers, outer diameter 270 mm, one is 28 mesh, 28 to 30 gsm, and uses HDPE, the second roller should be decided by the buyer in regards to mesh and size of the powder dot
At the front, back and side of hopper it has cooling water, ensuring the powder dot will not agglomerate
The angle of the front scraper can be adjusted to obtain the best position for coating
At each end of the heating roller are rotary joints and HDPE seals, to ensure the circulating oil can flow easily
Water tank and circulation system
Main heating roller, auxiliary heating roller and engraved roller with driving gear
Fine adjustment device to adjust the distance between the main heating roller, the auxiliary heating roller and the engraved roller
Steel frame, inside cover and surface is sprayed on with liquid plastic
Drive gear down motor 2.2 kW
Circulating oil boiler
Drying Oven
Hot oil circulation system
Automatic temperature control system: quantity 2 sets
Several high temperature resistant brake valves and washers
Dryer oven itself
Teflon conveyor net features good curing effect, heat shrinkage minimized
Heating with far-infrared quartz glass tubes, control with three-phase voltage regulator and automatic temperature control system, the dryer has a constant temperature
Fluctuation of temperature displayed on the meter is less than ±2 °C
Several stainless steel support rollers
Conveyor belt position control system
Length of the whole dryer oven is 4 meters composed of two sections
Roller pressing and cooling part 570 mm diameter
Consisting with three rollers, among them one is 570 mm aluminum roller, one is 240 mm aluminum roller, one is 230 mm silicone rubber roller, all of three rollers are filled with cooling water to assure good cooling effect of laminated fabric
Press is controlled by air cylinder (80 caliber), manual valve adjusts the pressure
Gear down motor with frequency speed control (2.2 kW)
There are rotary joints connected with stainless metal tube
Entrance with adjustable metal bowed roller 30 x 2000 mm
Exit with adjustable rubber bowed roller 100 x 2000 mm
Rewinder
Surface rewind, two rewind roller 200 x 2000 mm
Baffle device for the unload center tube
Gear down motor 1.5 kW
Guide roller 80 x 2000 mm
Independent operating table
Master drive with frequency speed control (3 sets)
Three phase adjust for the drying oven, PID temperature controller
Solid module PID temperature controller for the water tank
Main electric components use Schneider Electric
High pressure fan
A batch of air pipe, manual valve, adjust valve is supplied
Accessories
Vacuum cleaner
Circulation oil (170 kg)
Spare Parts
4 blades
Rotary joint for the cooling water left and right
Metal tube 2 pcs
Electric heating bar for the water tank 3 pieces
Quartz capsule for dryer oven 6 pieces
Three phase adjust pressure module PID temperature controller
Temperature controller probe 3 pieces
Grainflat rubber 50 meters
