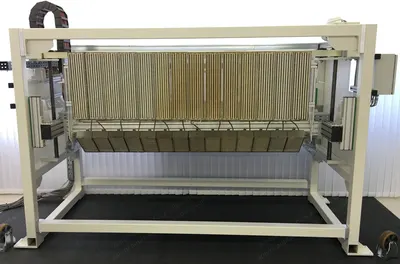

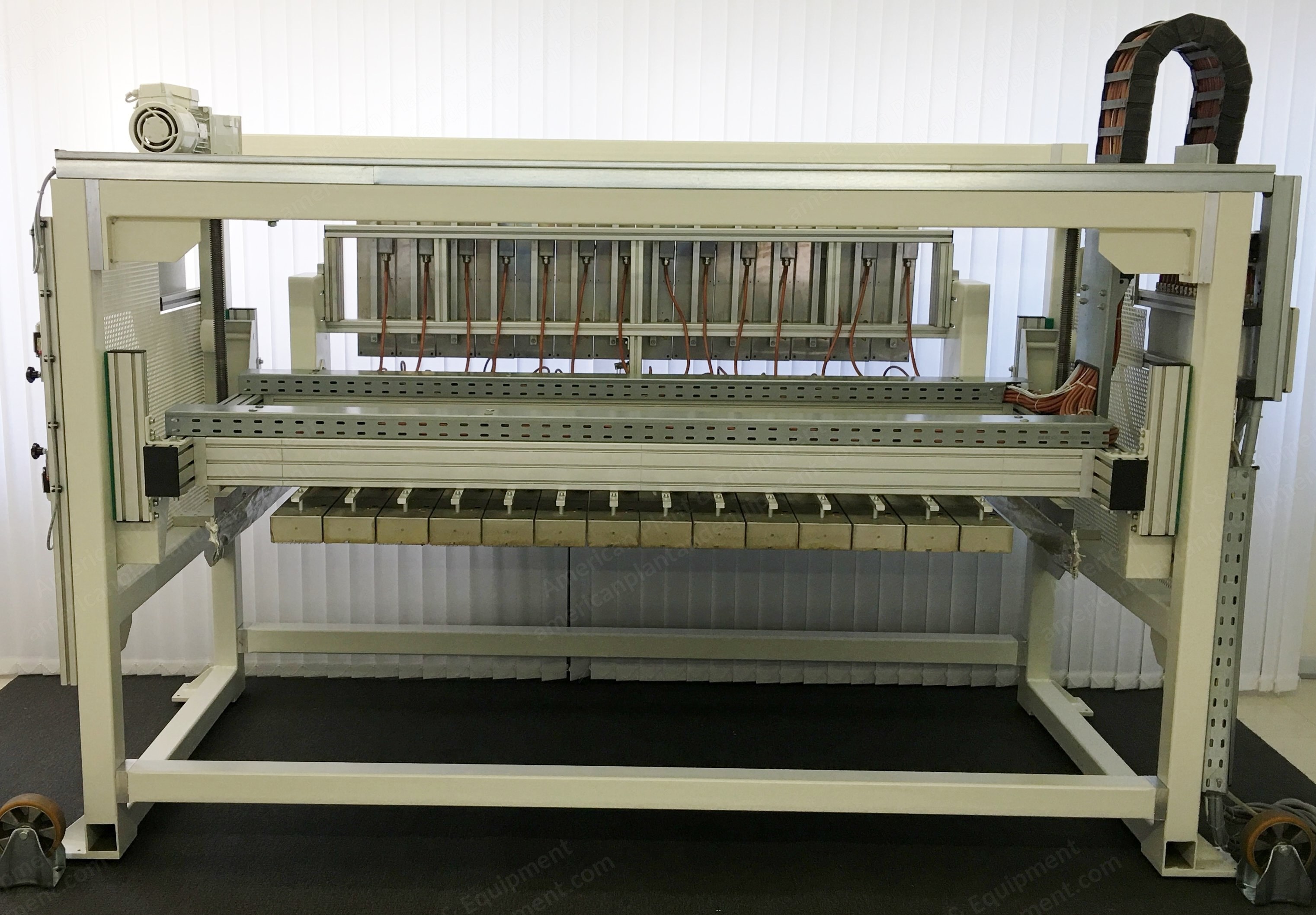

Herbert-Meyer, IRhH 1750, Infrared-Zone Laminating Machine, 1750mm Heatable Width, 98 kW Total Power

Herbert-Meyer, IRhH 1750, Infrared-Zone Laminating Machine, 1750mm Heatable Width, 98 kW Total Power

Description

  1. Overview
    1. Medium-wave IR surface radiators with short heating up and cooling down cycles.
    2. Heating elements consist of high heat-resistant insulation material and a specially developed metal foil.
    3. Heating-up temperature of metal foil: 800 degrees Celsius.
    4. Manual height adjustment: 30-100 mm.
    5. Automatic power switch-off in case of line stop.

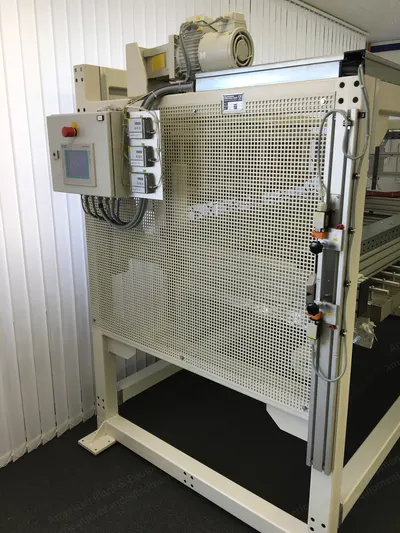

    6. Touch panel TP 177A, 5.7”.
    7. Roller: 2 fixed rollers / 2 guide rollers.
    8. 2 manually operated brakes.
    9. Positioning system not included.
  2. Ir Radiator “Horizontal”
    1. Heatable width: 1750 mm.
    2. Length: 1000 mm.
    3. Elements: 28 (each 125 x 500 mm).
    4. Control zones: 125/125/1,250/125/125 mm.
    5. Power per heating element: 28 x 2 kW.
    6. Total power: approx. 56 kW.
  3. Ir Radiator “Bevel”
    1. Heatable width: 1750 mm.
    2. Length: 250 mm.
    3. Elements: 14 (each 125 x 250 mm).
    4. Control zones: 125/125/1250/125/125 mm.
    5. Power per heating element: 14 x 1 kW.
    6. Total power: approx. 14 kW.
  4. Ir Radiator “Vertical”
    1. Heatable width: 1750 mm.
    2. Length: 250 mm.
    3. Elements: 14 (each 125 x 500 mm).
    4. Control zones: 125/125/1250/125/125 mm.
    5. Power per heating element: 14 x 2 kW.
    6. Total power: approx. 28 kW.

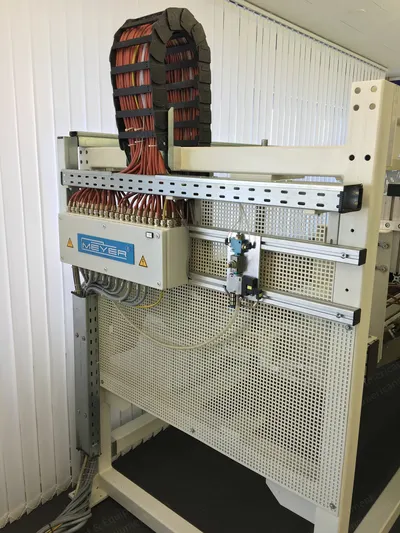

  5. Electric Controls “Horizontal”
    1. Electric control with 3 control circuits infinitely controllable.
    2. 2 x 0 – 8 kW, 1 x 0 – 40 kW.
    3. Setting range from 0 – 100%.
    4. 1 pyrometer for center area.
    5. Edge area in subject to center area (%).
  6. Electronic Controls “Bevel”
    1. Electronic control with 3 control circuits infinitely controllable.
    2. 2 x 0 – 2 kW, 1 x 0 – 10 kW.
    3. Setting range from 0 – 100%.
    4. 1 pyrometer for center area.
    5. Edge area in subject to center area (%).
  7. Electronic Controls “Vertical”
    1. Electronic control with 3 control circuits infinitely controllable.
    2. 2 x 0 – 4 kW, 1 x 0 – 20 kW.
    3. Setting range from 0 – 100%.
    4. 1 pyrometer for center area.
    5. Edge area in subject to center area (%).
