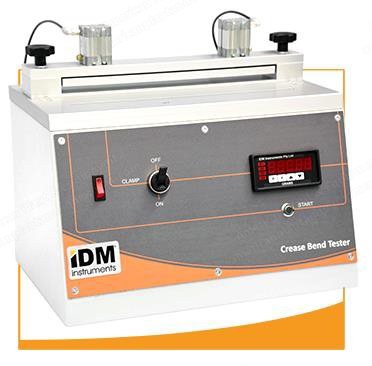

IDM, B0012, Crease Bend Tester, 0-10000gf Force Range, 300mm Max Sample Width (New)

IDM, B0012, Crease Bend Tester, 0-10000gf Force Range, 300mm Max Sample Width

Description

  1. Overview
    1. Crease bending tester used to monitor scoring equipment to ensure box performance by measuring the bending resistance of creased board at the time of folding at the crease.
    2. Measures the maximum force required to bend the sample board.
    3. Corrugated converters use the crease bending tester to aid in making adjustments to improve quality, thus ensuring the end user will have boxes that run effectively on their production line.
    4. Applications: board, corrugated board.
  2. Specifications
    1. Range of 0 to 10,000 x 1 gf.
    2. Maximum sample width: 300 mm.
    3. Digital display.
    4. Pneumatic sample clamp.
    5. Motorized load bar.
    6. Adjustable folding distance from 10 to 110 mm.
    7. Peak memory function.
    8. Easy to operate.
    9. Quick and simple testing.
    10. Accuracy: 1% FS.
  3. Connections
    1. Air: 80 psi maximum.
    2. Electrical: 220/240 VAC at 50 Hz or 110 VAC at 60 Hz (specify when ordering).
  4. Dimensions And Weight
    1. Height: 360 mm.
    2. Width: 400 mm.
    3. Depth: 350 mm.
    4. Weight: 25 kg.
