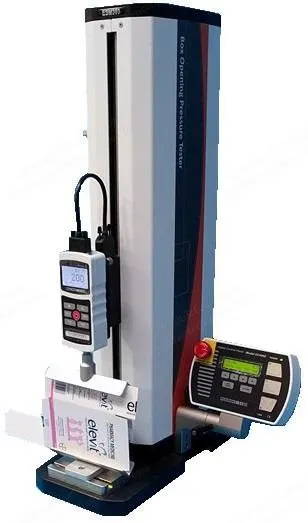

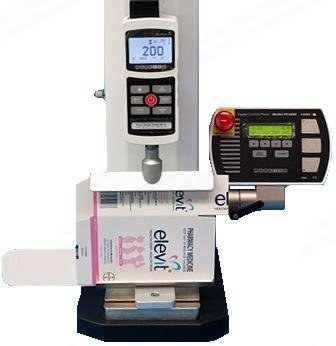

IDM, B0013, Box Opening Pressure Tester, 1.5kN Capacity, USB Output

Name: IDM, B0013, Box Opening Pressure Tester, 1.5kN Capacity, USB Output
Brand: IDM Instruments
SKU: L-1644

‹ Go Back Next Product ›

Description

Overview
1. Designed to measure the opening force of flat stacked carton boxes
2. Used for development and quality control of cartons during production, speeding up production set-up time
3. Motorized test stand is a highly configurable single column force tester for tension and compression measurement applications up to 300 lbf (1.5 kN)
4. Rugged design suitable for laboratory and production environments
5. Generous travel, clearance and depth dimensions allow a wide range of tests including break testing, cycling, limit testing to a load or distance, load holding, elongation testing, tensile testing, compression testing and more
6. Force and travel data can be output to a PC for graphing and analysis using Mesur™ Gauge software or fully control the stand by a PC through custom written program
Applications
1. Cartons
Features
1. Small and medium hook
2. Limit switches
3. Simple controller interface
4. Peak readings and set points always displayed
5. Programmable travel limits
6. Overload protection
7. Auto return
8. Break detection
9. Selectable speed setting
10. Password protection
11. Stepper motor driven
12. USB output
13. Configurable audio alarms and key tones
14. Large backlit graphic display
15. 1,000 point data memory with statistics and outputs
16. Averaging mode
17. 5 selectable units of measurement
18. External trigger mode
19. Adjustable, removable controller with intuitive menu navigation
Limit Switches
1. Adjustable upper and lower solid state limit switches stop test stand travel with 0.001. repeatability
Simple Controller Interface
1. Rugged aluminium up/down/stop keys are designed for industrial environments
2. Zero travel and FollowMe™ keys add convenience
3. Can also be removed for remote use
Mesur™ Gauge Data Collection Software
1. Output force vs. time or force vs. distance data from the USB port
2. Mesur™ Gauge graphs, tabulates, calculates statistics, and provides reporting and output tools
Test Stand Specifications
1. Load capacity: 200 lbf (1 kN) @ >24 in/min (610 mm/min)
2. Maximum travel: 18.0 in (457 mm)
3. Speed range: standard 0.5 - 13 in/min (13 - 330 mm/min); optional 0.02 - 45 in/min (0.5 - 1,100 mm/min)
4. Speed setting accuracy: ±0.2% of setting
5. Speed variation with load: ±0% (stepper motor driven)
6. Travel accuracy: ±0.002 in per 10 in (±0.05 mm per 250 mm)
7. Travel resolution: 0.001 in / 0.02 mm
8. Limit switch repeatability: 0.001 in (0.03 mm)

Additional Specifications

HS code	9024.80

Specifications

Applications	['Cartons']
Features	['Small and medium hook', 'Limit switches', 'Simple controller interface', 'Programmable travel limits', 'Overload protection', 'Auto return', 'Break detection', 'Stepper motor driven', 'USB output', '1,000 point data memory']
