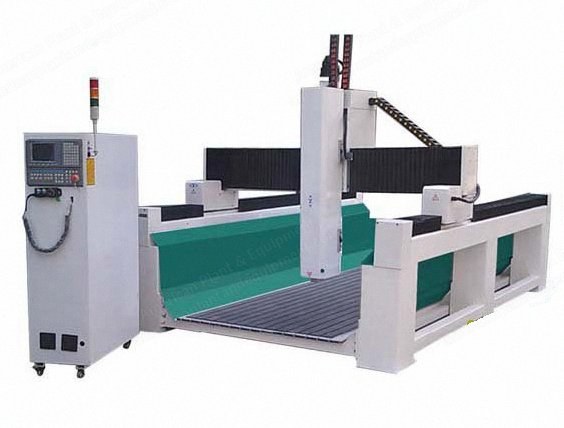

NovaStar, FN321, EPS Foam Mold CNC Router, 1500x3000x1000mm, 7.5 kW Spindle, Syntec-6MA Control (New)

NovaStar, FN321, EPS Foam Mold CNC Router, 1500x3000x1000mm, 7.5 kW Spindle, Syntec-6MA Control

Description

  1. Overview
    1. Dimensions: 1500 mm x 3000 mm x 1000 mm
    2. Table structure: aluminum
    3. Orbit: hiwin or pmi square orbit
    4. Transmission type: x, y rack (z ball screw)
  2. Specifications
    1. Working accuracy: ±0.01
    2. Repositioning accuracy: ±0.01
    3. Maximum air movement speed: 16000 mm/min
    4. Maximum working speed: 10000 mm/min
    5. Spindle cooling type: water cooling
    6. Spindle power: 7.5 kW
    7. Spindle speed: 0.12000 r/min
    8. Inverter: 7.5 kW sunfar inverter
    9. Drive system: 850W japan yaskawa servo
    10. Command code: g code
    11. Control system: syntec-6ma
    12. Oiling system: automatic
    13. Working voltage: ac480v (60hz)
