Extrac-Tec, CS-120, Alluvial Mining Wash Plant, 120 tph, 15kW (New)

Extrac-Tec, CS-120, Alluvial Mining Wash Plant, 120 tph, 15kW

Description

  1. Overview

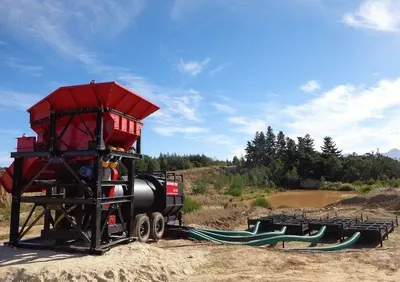

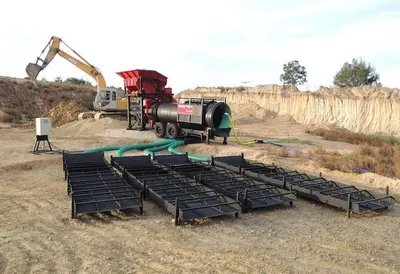

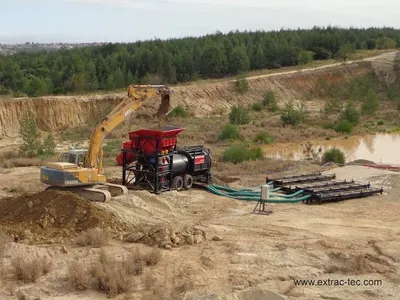

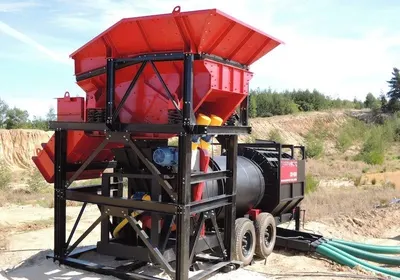

    1. Consists of 3 process modules: feed system, scrubbing and screening unit, and recovery system.
  2. Feed System

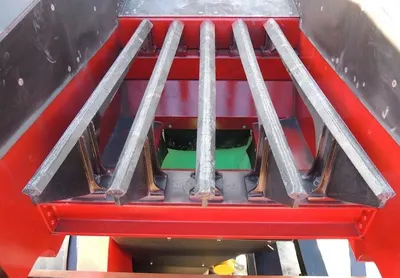

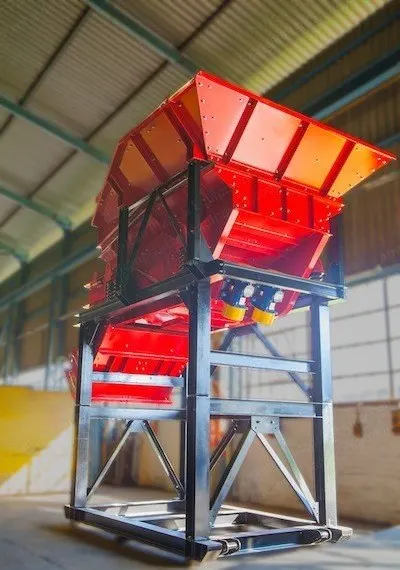

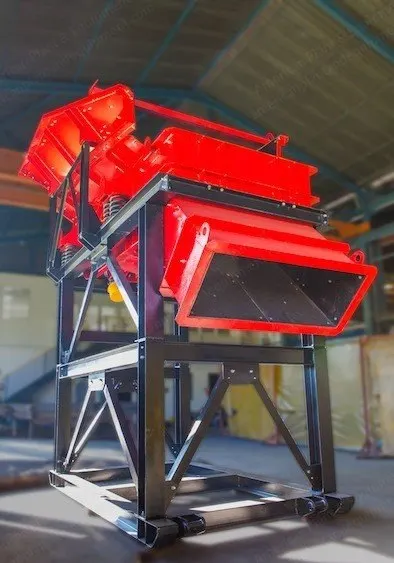

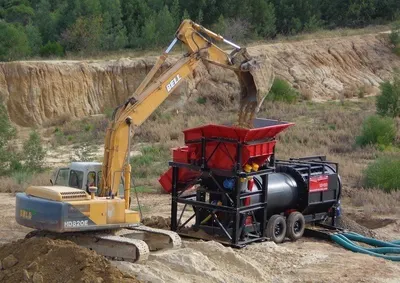

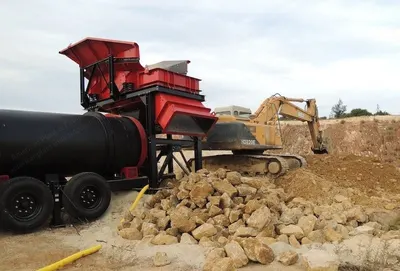

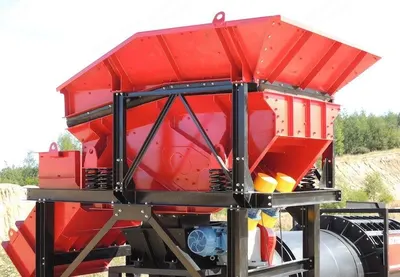

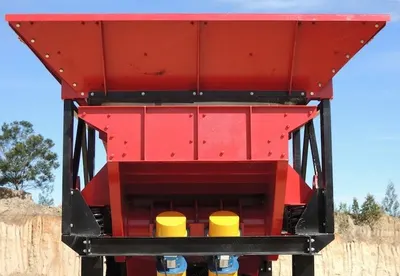

    1. The VF-120 feeder module is an excavator-fed, fully independent grizzly scalping feeder 1200 wide x 2650 long with one row of 1550 long grizzly bars.
    2. Fitted with a dynamic underpan and a static oversize chute and mounted on a skid base for standard container shipping.

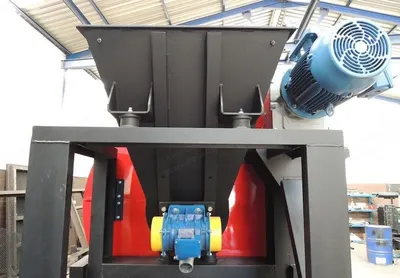

    3. The grizzly is mounted on steel coil isolation springs and driven by 2 x 2.0 kW pole vibrator motors.
    4. The VF-120 can also be equipped with a high-pressure grizzly washbar system for rinsing of oversize rocks prior to discharge.
    5. Optionally a simplified feed chute can be supplied or the system can also be fed with a high-capacity hopper / conveyor if material is best suited to this technique.
  3. Scrubbing And Screening Unit

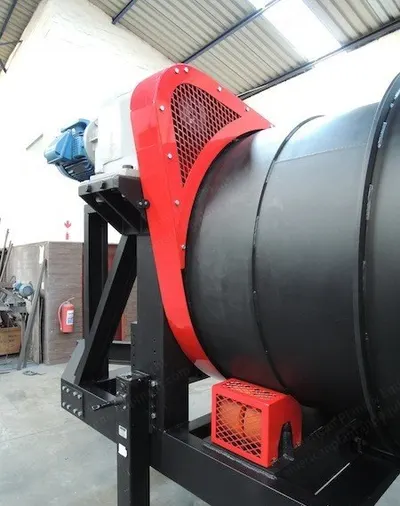

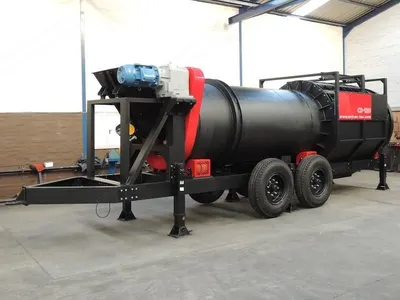

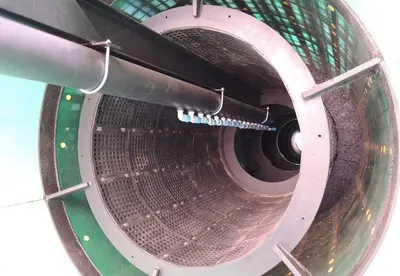

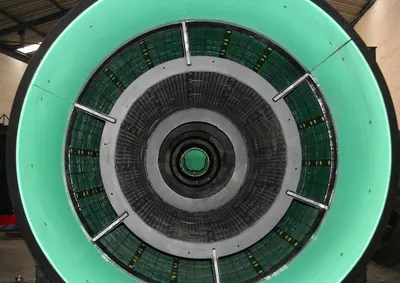

    1. This is a 3-chamber rotary trommel scrubber with double-drum, heavy-duty rubber/urethane mining screen and undersize slurry distributor.
    2. The screening section of this unit includes rubber and urethane screening panels which can be exchanged / chosen to size material specifically for your ever-changing material profiles, allowing you to optimize classification based on the exact particle sizing of your deposit.

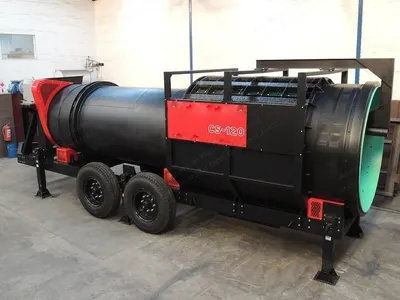

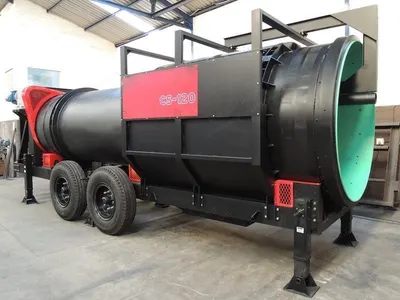

    3. The entire unit is 7.6 m long and mounted on a towable trailer with landing legs and fitted with 15 kW variable speed drive system, replaceable wear-liners and custom-fitted / interchangeable rough and fine screen panels.
    4. Slurry distributor permits control of gravity feed via slurry hoses to 1, 2, 3 or 4 recovery units.
  4. Recovery System
    1. You can choose between standard and high-recovery options.

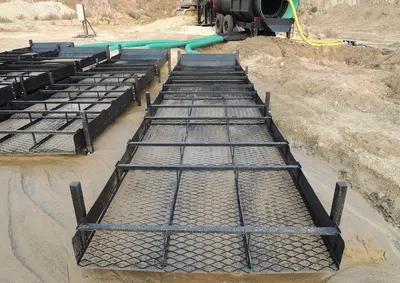

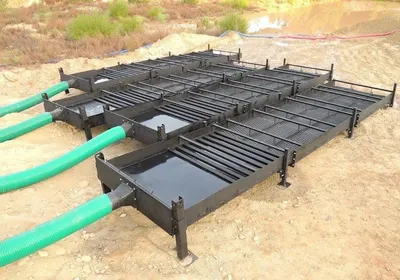

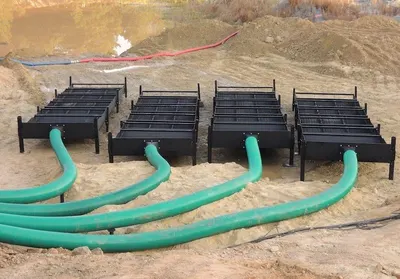

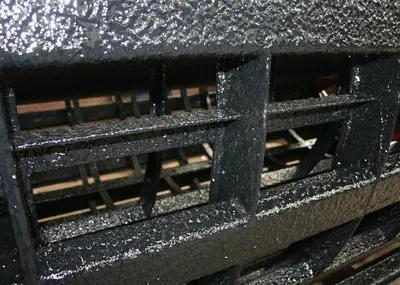

    2. The standard recovery system is a set of 4 x high-capacity recovery sluice boxes fitted with riffles, concentrate matting and riffle locks.
    3. With the high-recovery option, slurry from the scrubbing/screening unit is split and fed to 4 x HPC-30 recovery units, offering the highest capacity and recovery option possible.
  5. Specifications
    1. Drive system: 15 kW variable speed drive system.

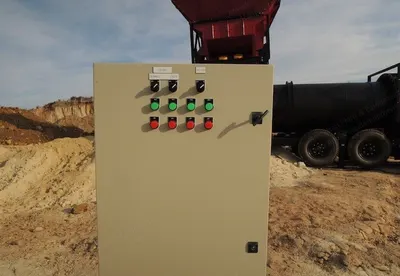

    2. Electrical supply requirements: 380 V – 15 kW trommel motor, 2 x 1.75 kW SPV 7.0-A vibrating motors (generator sizing for the CS-120 must take into consideration any additional equipment to be run as well as startup amperage requirements).

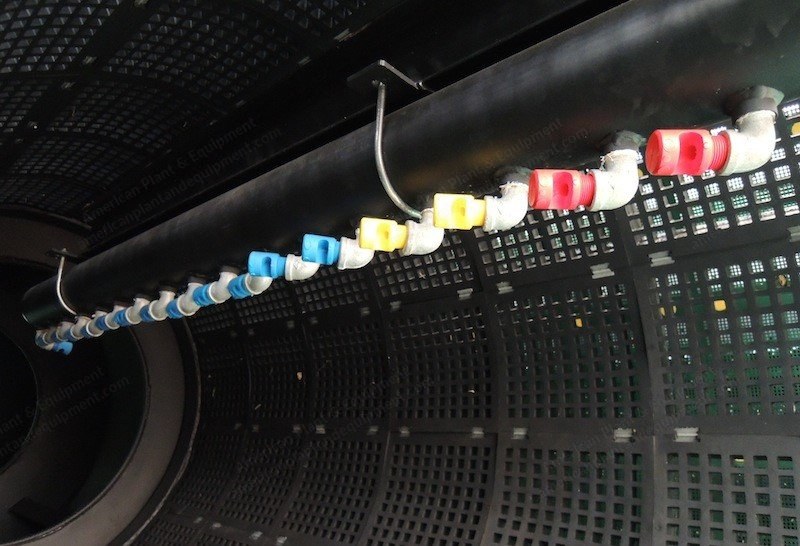

    3. Water supply requirements: approx. 2000 liters/minute or 120 m³/hour (500 gallons/minute) at a pressure of approximately 310 kPa (45 psi). Any electrical, petrol or diesel powered pump capable of providing this water flow may be used. The water supply must be connected via a 6” hose (“lay-flat” or discharge hose) clamped onto the inlet nipple on the water manifold. Note: water pump and connection hose are not supplied.
    4. Feed material: -150 mm (-6”) material is fed from the VF-120 to the CS-120.
    5. Feeder VF-120: an excavator fed, fully independent vibrating grizzly scalping feeder 1200 wide x 2650 long with one row of 1550 long grizzly bars, fitted with a dynamic underpan and a static oversize chute and mounted on a skid base for standard container shipping.
    6. Trommel: three chamber rotary trommel scrubber fitted with replaceable wear liners plus double-drum, heavy-duty classification screen with replaceable screen panels and undersize slurry distributor. The screening section of this unit includes rubber and urethane screening panels which can be chosen to size material specifically for your ever-changing material profiles, allowing you to optimize classification based on the exact gold particle sizing of your deposit.
    7. Recovery system (2 options available): the standard recovery system is a set of 4 x high-capacity recovery sluice boxes fitted with riffles, concentrate matting and riffle locks. With the high-recovery option, slurry from the scrubbing/screening unit is split and fed to 4 x HPC-30 recovery units. This option offers the highest capacity and recovery option possible.
    8. Dimensions: length 7600 mm (299”) x width 2190 mm (86”) x height 2590 mm (102”).
    9. Weight: 10,150 kg / 22,376 lbs.

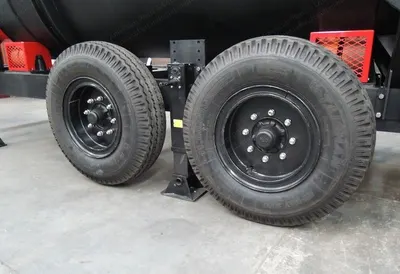

    10. Mounted on a towable trailer with landing legs and detachable A-frame.
