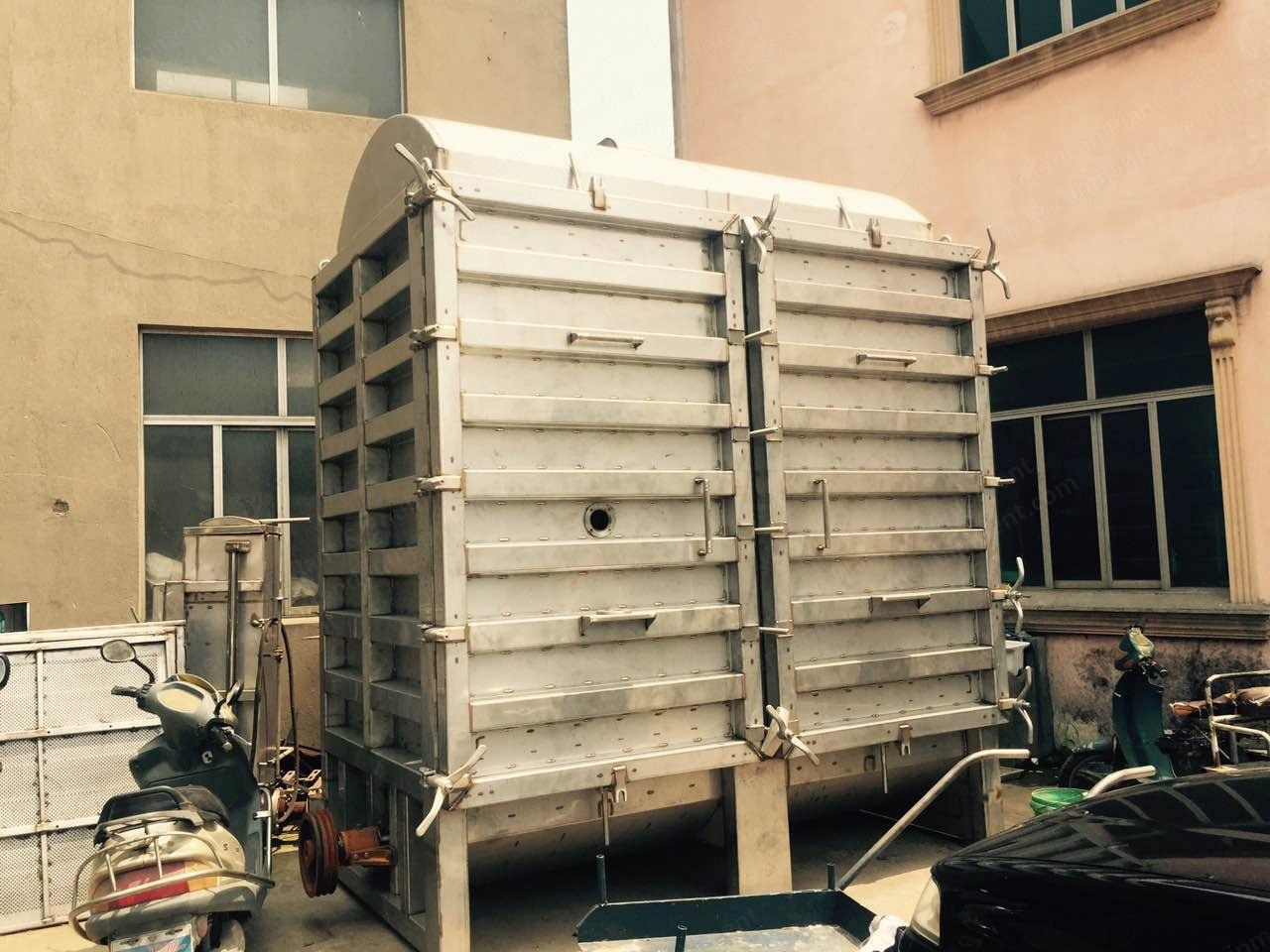

NovaStar, DG413, Hank Cabinet Dyeing Machine, 300 kg Capacity, Stainless Steel (New)

NovaStar, DG413, Hank Cabinet Dyeing Machine, 300 kg Capacity, Stainless Steel

Description

  1. Overview
    1. CapacitY: 300 kgs
    2. Dimensions: 3510 mm long x 2178 mm wide x 3305 mm high
    3. Power: 11 kW
    4. DYe ratio rate: 1:20
  2. Specifications
    1. Computer temperature control
    2. Inverter speed control
    3. Manual water in / out
    4. Stainless steel grade 316L
    5. Water input pipe diameter: DN50
    6. Water output pipe diameter: DN100
    7. Steam input pipe diameter: DN40
    8. Valve: water input / output tank with double cYlinder ball valve
    9. Heating valve (Y tYpe) pneumatic valve
    10. Feeding pneumatic valve (Y tYpe)
    11. Feeding tank diameter: 700 mm with pump and recYcling sYstem
  3. Electrical Components
    1. Delta inverter
    2. Schneider push button
    3. Siemens contactor
