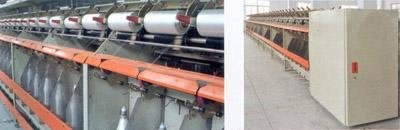

NovaStar, WN230, Two For One Twister, 80 Spindles, Gauge 432mm, 5kg Capacity (New)

NovaStar, WN230, Two For One Twister, 80 Spindles, Gauge 432mm, 5kg Capacity

Description

  1. Overview
    1. Application: For twisting filament yarn (5 kg).
    2. Application: Filament yarn, elastic yarn, short fiber.
    3. Suitable for all kinds of filament yarn twisting, high speed, large package, etc.
  2. Machine Features
    1. Compared with the traditional process, the consumption of waste is reduced more than 80%, and the winding package is increased by more than 5 times.
    2. Using oil bath gear box, mechanical and electrical integration of the whole PLC control system, to ensure the high winding speed of the quality of the bobbin forming.
    3. Quality of the yarn path, the yarn damage to the minimum, more suitable for high quality yarn requirements.
  3. Specifications
    1. Number of spindles: 80 spindles (10 spindles / section).
    2. Spindle speed: ≤10000 r/min.
    3. Spindle gauge: 432 mm.
    4. Twisting yarn count: max. 8000 D.
    5. Twist range: 50-1800 t/m.
    6. Winding tube length: 230 mm, 250 mm, 270 mm, 290 mm (as per customer requirements).
    7. Winding angle: 10°, 14°47’, 16°36’, 18°41’, 20°07’.
    8. Winding weight: 5 kg.
    9. Winding speed: max 100 meter/min.
    10. Control system: Full PLC control, serve forming.
    11. Overall dimension: 19800 mm x 820 mm x 1750 mm (L x W x H).
  4. Packing
    1. With a layer of waterproof plastic bag.
    2. We separate the whole machine into sections and put each section one by one in a 40 GP container.
