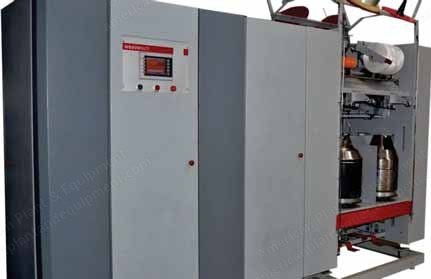

NovaStar, T-500 / C-500, Two For One Twister and Direct Cabler, 500mm Gauge, 40 to 96 Spindles (New)

NovaStar, T-500 / C-500, Two For One Twister and Direct Cabler, 500mm Gauge, 40 to 96 Spindles

Description

  1. Overview
    1. Gauge: 500 mm
    2. Spindle type: 200-DF / 300-PT
    3. Yarn range: 600 to 9000 MP / 150 to 14000
    4. Twist range: 30 to 300 TPM / 30 to 1000 TPM
    5. Spindle speed (process / max): 5000 out of 8000 / 5000 out of 7000
    6. Can offer 270 mm and 310 mm baskets
  2. Spindles
    1. Feed package type: double-flanged bobbin / cheese
    2. Feed package length/diameter: 255 out of 185 / 290 out of 300
    3. Feed package weight (max): 5000 gms / 11000 gms
    4. Feed tensioner type: ball-ceramic
    5. Spindle break: individual foot break
  3. Take-Up
    1. Overfeed type: posifeed roller system with triple loop
    2. Take-up tube / traverse stroke length: 290 mm / 255 mm
    3. Traverse GB system: cheese with anti-patterning and edge-breaking system
    4. Cradle system: steel cradle with damping and auto-pressure adjustment
    5. Max. package diameter / weight: 330 mm / 12000 gms
    6. Max. operating speed: 120 CPM and 120 meters per minute
  4. Direct-Cabling (Optional)
    1. Direct-cabling spindle: optional
    2. Creel tensioner system: ball ceramic at creel
    3. Cabler tensioner system: unitensioner – spring loaded adjustable
    4. Yarn path: complete ceramic yarn path with positive rollers
  5. Drive System
    1. Spindle drive: tangential belt with inverter control for RPM
    2. Take-up drive: central cam gearbox with inverter control for TPM
    3. Overfeed drive: individual positive drive with central gear ratio setting
    4. RPM and TPM control: PLC based touch-screen control system
    5. Machine width / height at take-up: 1000 mm / 1750 mm
  6. Dimensions and Power Data
    1. Number of spindles: 40, 48, 56, 64, 72, 80, 88, 96**
    2. Power connected (HP): 20, 20, 20, 25, 25, 30, 30, 30
    3. Machine length (m): 11.80, 13.80, 15.80, 17.80, 19.80, 21.80, 23.80, 25.80
