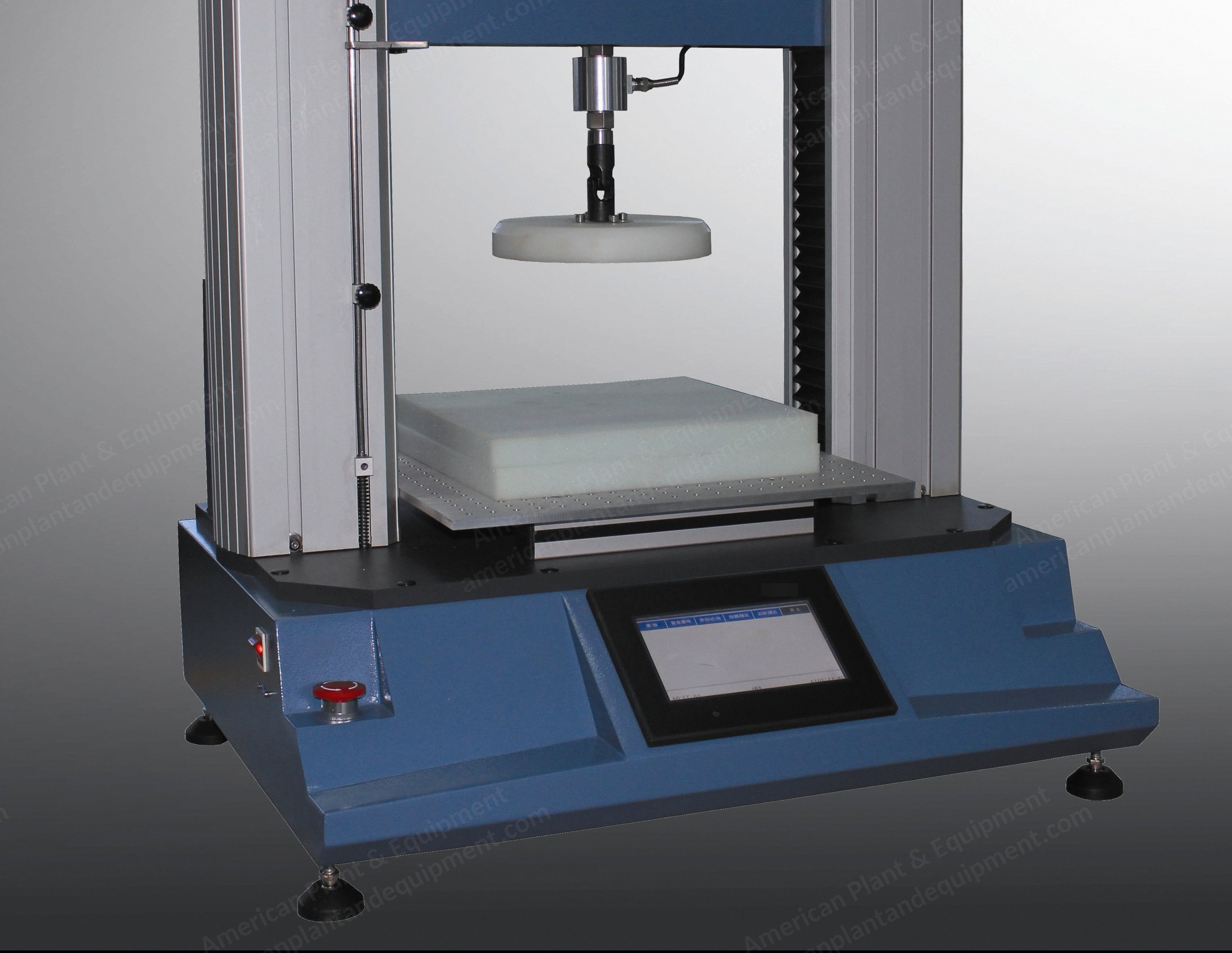

NovaStar, MC152, Foam IFD Tester, Capacity 500kg, Stroke 200mm, 720x580x850mm (New)

Description

Overview
1. Used to determine the indentation hardness of porous elastic material
2. Examples: flexible cellular polyurethane, latex foam, rubber foam, carpet underlay, etc.
3. Standards: ISO 2439:1997, GB/T 10807, GB/T 12825, GB/T 18942
Control and Display
1. Control method: PLC programmable control, 7 inch touch
2. Sensing method: force sensing automatic display
3. Screen: color display
4. Unit switch: kg, N, lbs
Specifications
1. Capacity: 500 kg
2. Decomposition rate: 1/1000
3. Accuracy: 0.5 (±0.5%)
4. Max stroke: 200 mm
5. Test speed: 100 ± 20 mm/min
Platen and Fixture Details
1. Upper pressure plate dimensions diameter: 200 mm
2. Bottom fillet: R1 mm
3. Lower plate: 420 mm x 420 mm
4. Air vent diameter: 6 mm
5. Spacing: 20 mm
Specimen Dimensions
1. Side length: 380 mm
2. Thickness: 50 mm
Safety and Shutdown
1. Automatic shutdown device stroke upper and lower limits
Physical and Electrical
1. Dimensions (W x D x H): 720 x 580 x 850 mm
2. Weight (approx.): 70 kg
3. Power supply: 1∮ AC220V, 2.6A
