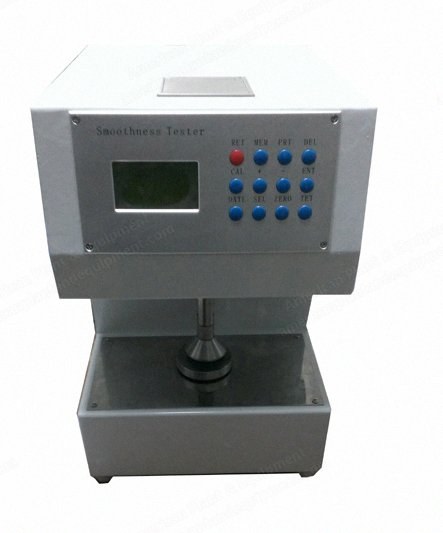

NovaStar, GL173, Bekk Type Smoothness Tester, ISO 5627, AC220V, 300x370x420mm (New)

NovaStar, GL173, Bekk Type Smoothness Tester, ISO 5627, AC220V, 300x370x420mm

Description

  1. Overview
    1. Designed according to the Bekk smoothness testing principle
    2. Equipped with a high-precision sensor and imported oil-free vacuum pump
    3. Essential testing instrument for the papermaking industry and for inspection and research to test the smoothness of paper and cardboard
    4. Standards: ISO 5627
  2. Key Features
    1. Adopted imported high precision sensor and oil-free vacuum pump, low noise, high precision
    2. Rapid measurement: choose a small volume to measure, the measuring time is only one-tenth of a large volume, saving time
    3. Adopted imported electromagnetic valve and stainless steel vacuum chamber, advanced sealing technology, test results will be much more accurate and stable
    4. Large LCD display screen, automatic tests, displays the results of measurements and statistics; friendly user interface makes operation simple and convenient
  3. Specifications
    1. Power supply: AC220V ± 10% 50Hz
    2. Measuring scope: (1 to 9999)s, can be divided to (1 to 15)s, (15 to 300)s, (300 to 9999)s, manual operation and automatic operation
    3. Time accuracy: ± 1s within 1000s
    4. Vacuum system volume: the bigger volume (380 +/- 1 ml), the smaller volume (39 +/- 1 ml)
    5. Vacuum scope: 50.66 to 29.33 kPa, 50.66 to 48.00 kPa, 50.66 to 48.00 kPa
    6. Air volume (50.66 kPa down to 48.00 kPa): big vacuum volume (10.00±0.20ml), small vacuum volume (1.00 ± 0.05 ml)
    7. Dimension: 300 x 370 x 420mm
    8. Net weight: 37kg
