Technidyne, Profile Plus, Roughness and Porosity Machine, 14 to 600 gsm, 37 kg (New)

Technidyne, Profile Plus, Roughness and Porosity Machine, 14 to 600 gsm, 37 kg

Description

  1. Overview
    1. List number: L-2176
    2. Profile plus roughness and porosity machine
    3. Measurements in seconds
    4. Top and bottom side measurement
    5. Conforms to industry standards
    6. Multiple measurements (averaging, statistics, and trending capabilities)
    7. Average, maximum test value, minimum test value and standard deviation
    8. Tabular and graphical display of results
  2. Sample Types And Grammage
    1. Sample types: MD and CD strips, single sheets, A3 + A4 letter paper, handsheets (25 to 1000μm)
    2. Grammage range: 14 to 600 grams per square meter
  3. Data Output And Display
    1. Data out: RS232C, to printer (DB9 and DB25)
    2. Display options: graphical, tabular
  4. Power And Air Supply
    1. Power: 100 to 250 VAC / 49 to 61 Hz
    2. Air supply: 205 to 275 kPa
    3. Testing air pressure: adjustable 1.48 kPa, 0.74 kPa and 2.20 kPa
  5. Roughness Reporting And Ranges
    1. Roughness reporting and ranges: Bendtsen units, 30 to 5,000 milliliters per minute
  6. Testing Modes
    1. Testing modes: single tests with statistics, profile testing with statistics
  7. Configurations
    1. Porosity only
    2. Top side roughness only
    3. Top side roughness with porosity
    4. Bottom side roughness only
    5. Bottom side roughness with porosity
    6. Top and bottom side roughness only
    7. Top and bottom side roughness with porosity
  8. Porosity Reporting And Ranges
    1. Oil Gurley (seconds/100ml oil): 1 to 340,000 sec/100ml
    2. 2.5 ml HP Gurley (seconds/2.5ml Hg): 1 to 3400 sec/2.5ml Hg
    3. 10 ml HP Gurley (seconds/10ml Hg): 1 to 13,774 sec/10ml Hg
    4. Bendtsen (ml/min): 0 to 5,000 ml/min
    5. Sheffield (S.U.): 0 to 400 S.U.
  9. Results
    1. Individual roughness – porosity values
    2. Profile roughness – porosity values
    3. Porosity values (profile test)
      1. Statistics
      2. Mean value
      3. Maximum value
      4. Minimum value
      5. Standard deviation
  10. Standards
    1. ISO 5636
    2. TAPPI T460
    3. SCAN P19
    4. PAPTAC D.14
    5. BS 2925
    6. DIN 53120
    7. ISO 5636/14
    8. TAPPI 547
    9. ISO 8791
    10. SCAN P21
    11. DIN 53108
    12. BS 4420
  11. Dimensions And Weight
    1. Weight: 37 kgs (82 lb)
    2. Height: 660mm (26.0 in)
    3. Depth: 460mm (18.1 in)
    4. Width: 267mm (10.5 in)

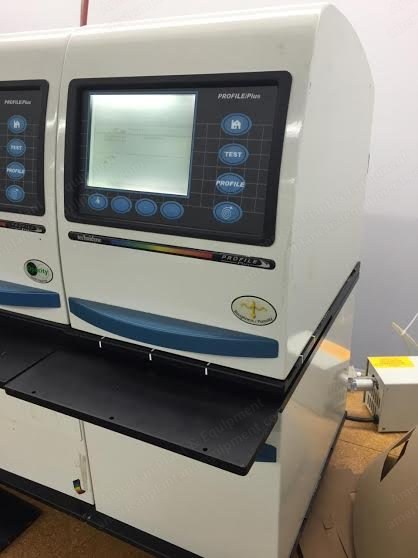

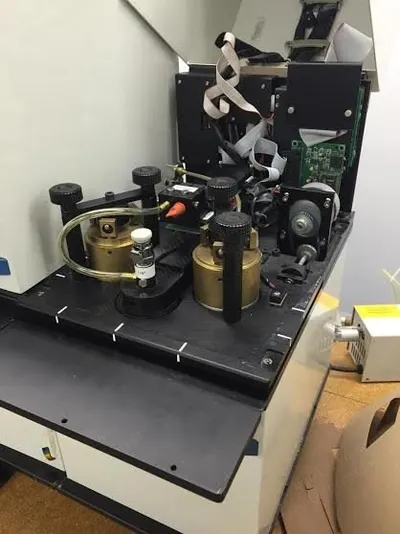

  12. Image
