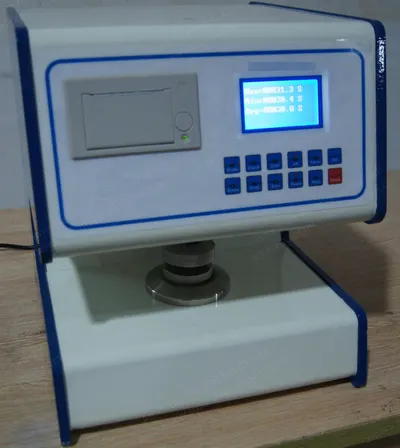

NovaStar, GL174, Bekk Smoothness Tester for Paper or Cardboard, Measuring Range 10+/-0.05cm2, Pressure 100kPa
Scroll to zoom
100%
Description
Overview
Bekk smoothness tester for paper or cardboard
Measures smoothness as the time in seconds required to draw a definite quantity of air at atmospheric pressure between the surface of the test piece and a ring-shaped plane surface under specified conditions of contact
Suitable for a wide range of papers and boards, especially recommended for smooth papers and boards
Measurement times may be impractically long for very smooth samples
Specifications
Measuring range: 10 +/- 0.05 cm²
Pressure: 100 kPa +/- 2 kPa
Display: English menu and LCD screen
Printer: Thermal printing, high speed and no noise
Ambient conditions: temperature 10-30 °C, relative humidity <85%
Dimensions: 318 mm x 362 mm x 518 mm
Weight: 35 kg
Standards
ISO 5627, GB/T 456, QB/T 1665
