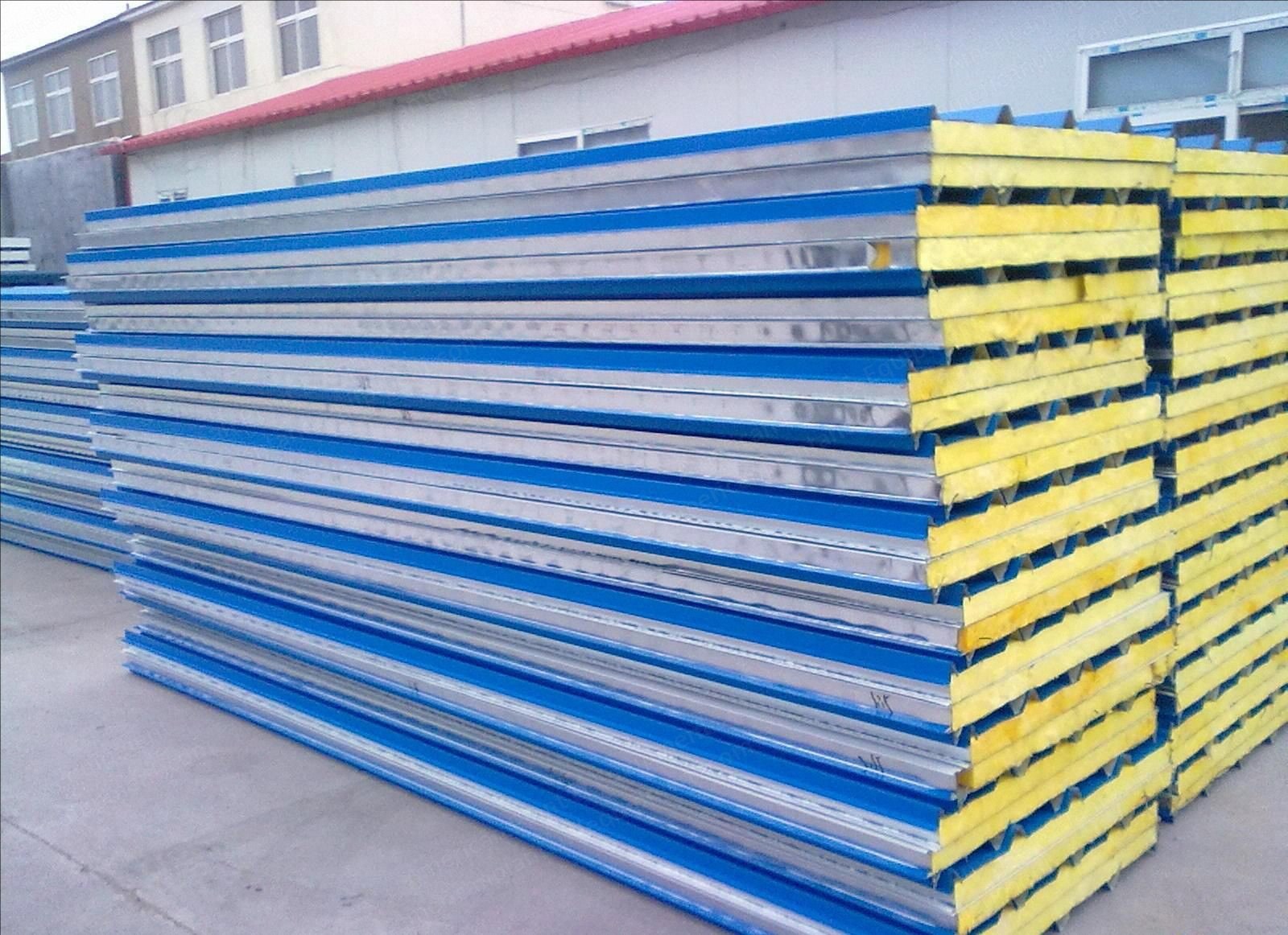

NovaStar, PN103, EPS Foam Sandwich Panel Production Line, 0.27-0.8mm Plate Thickness, 50-300mm Core Thickness, 4-4.5 m/min Capacity (New)

NovaStar, PN103, EPS Foam Sandwich Panel Production Line, 0.27-0.8mm Plate Thickness, 50-300mm Core Thickness, 4-4.5 m/min Capacity

Description

  1. Included Components

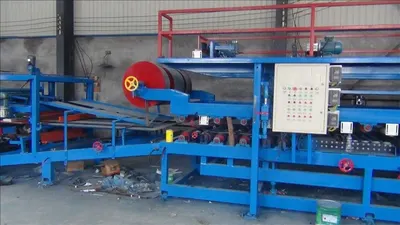

    1. Uncoiler

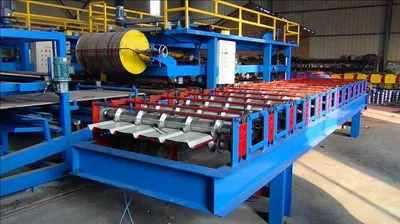

    2. Roll forming machine
    3. Feeding device

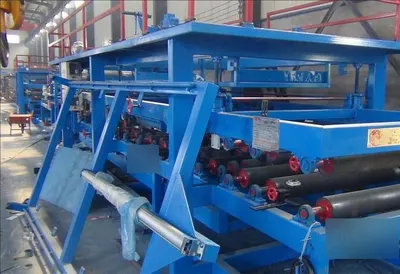

    4. Forming of sandwich panel
    5. Sandwich panel cutter
    6. Collection table
  2. Processes
    1. Composite decoiler
    2. Roll forming
    3. Laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)
    4. Cutting system
    5. Runout table
  3. Specifications
    1. Coil material: EPS
    2. Plate thickness: 0.27 to 0.8 mm
    3. Core thickness: 50 to 300 mm
    4. Panel profile: 960 mm, 970 mm, or 980 mm
    5. Production capacity (according to glue): 4 to 4.5 meters per minute (fastest), 2 to 2.5 meters per minute (slowest)
    6. Dimensions of entire line (approx.): 34000 mm long x 2500 mm wide x 2500 mm high
    7. Packed into two 40 foot containers
