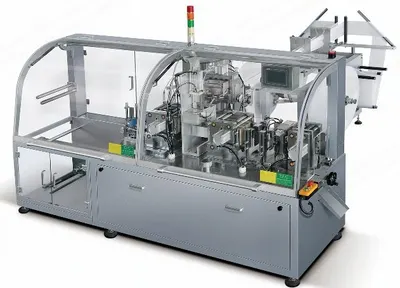

NovaStar, WP118, Automatic Wet Wipes and Alcohol Pad Packing Machine, 4-Side Sealing, 120-160 Bags/Min
Scroll to zoom
100%
Description
Performance And Structural Features
Suitable for four-sided sealed products of all types, including wet wipes, tissues, and alcohol swabs/pads.
Single bag or two bags in a row can be set freely (max four bags in a row for alcohol swabs).

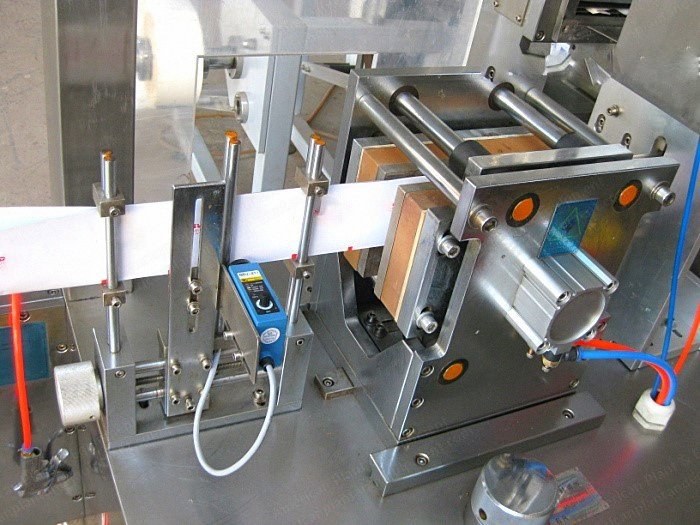

Fully automatic pouch forming machine with photo electricity correction, no blank edge and fault forming.
Tissue can be folded in different types: max 8 folding vertical and 4 folding horizontal, fold freely by unfold nonwoven width and length.
Adopts Japan imported spray pump for accurate adding with tolerance of 0.01 ml/time; multical kinds of liquid are available; can add per liquid per bag or add all the liquid in the same bag.

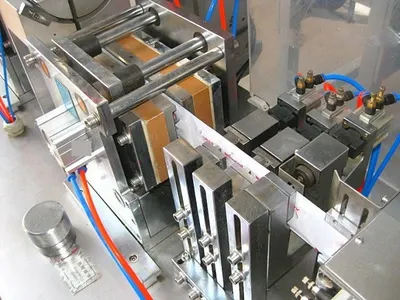

Double times sealing better to ensure the liquid adding volume and avoid leaking.
Full machine is covered with stainless steel for good appearance, easy to clean and durable; low operation and maintenance cost.
Confined glass cover to avoid contamination and reduce noise.
Sealing molds are made of aluminum alloy with very high thermal shock resistance and no thermal deformation.
Technical Parameters
Packaging form: horizontal four-side sealing.
Packing material: CPP, PE, BOPP CPP film, PE film, BOPP film.
Wet tissue material: 40-80 g/m² air laid paper, nonwoven, spun lace nonwoven fabric, etc.
Folding way: max 10 folding vertical and 4 folding horizontal.
Packing specs length: for alcohol pad 30 mm-50 mm; for wet wipes 50 mm-125 mm; for special design max 220 mm.
Packing specs width: 40 mm-110 mm.
Max size: for alcohol pad L50 mm × W50 mm; for wet wipes L120 mm × W110 mm; for special design L170 mm × W110 mm.
Packing speed: for alcohol pad 120-160 bags/minute; for wet wipes 60-120 bags/minute; for special design 60-100 bags/minute.
Liquid added range: 0-10 ml with precision ±0.5 ml; coefficient of viscosity should be under 20000 (cP).
Total power: 2.8 kW.
Power supply type: single phase two wire 220 V, 50/60 Hz.
Machine noise: ≤64.9 dB(A).
Air supply: 0.6-1.0 MPAS.
Air consumption: 300-500 L/min (W-1.0/10 air compression machine is needed).
Machine dimensions: for alcohol pad L2800 × W1080 × H1800 mm; for wet wipes L2800 × W2800 × H1800 mm; for special design L3000 × W2800 × H1800 mm.
Machine weight: for alcohol pad 1000 kg; for wet wipes 1100 kg; for special design 1300 kg.
Apparatus List
Machine cover: stainless steel 304, 1 set.
Origami shelf: spray-paint, 1 set.
Bracket of glass cover: aluminum alloy and stainless steel, 1 set.
Synthetic glass and polycarbonate panels cover: thickness 2 mm + 8 mm, 1 set.
