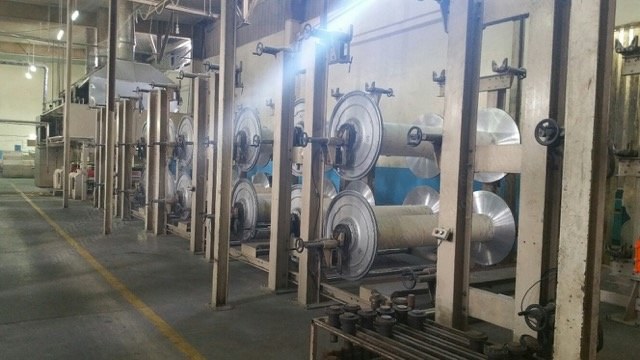

Tsudakoma, HS-40, 2006, Sizing and Warping Machines, Width 1800mm & 2200mm, 36 Creels, 14 Dry Cylinders

Tsudakoma, HS-40, 2006, Sizing and Warping Machines, Width 1800mm & 2200mm, 36 Creels, 14 Dry Cylinders

Description

  1. Overview
    1. Tsudakoma sizing machine
    2. Model: HS-40
    3. Year: 2006

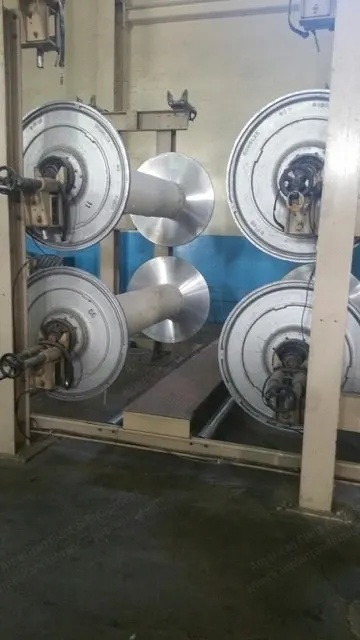

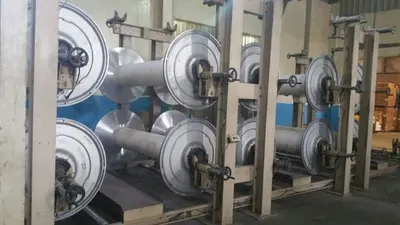

    4. Creels: 36
    5. Beam diameter: 1000 mm
    6. Creel width: 2200 mm to 1800 mm

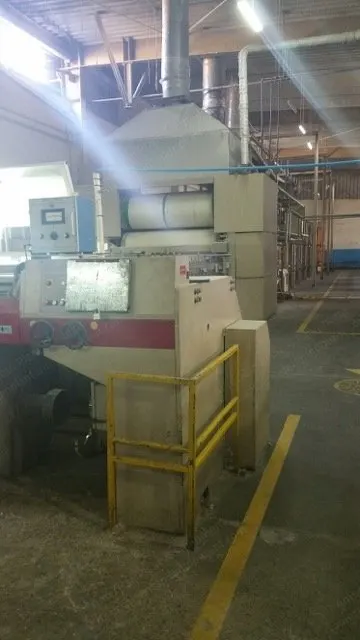

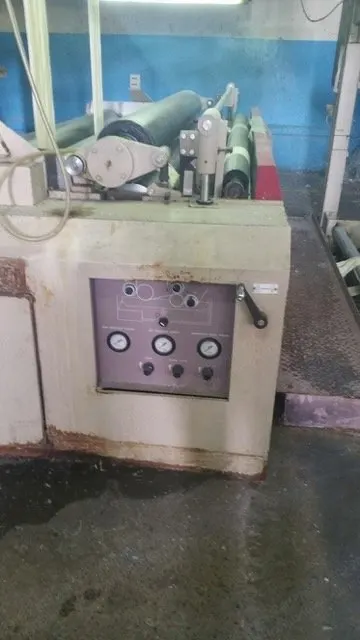

  2. Size Box
    1. 2 double squeeze single dip
    2. Working width: 2200 mm
    3. Roller face width: 2300 mm

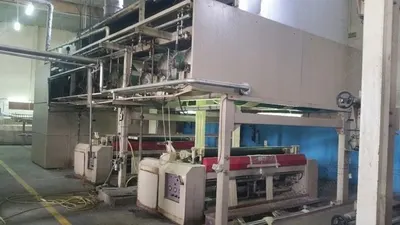

  3. Dry Cylinder
    1. 14 cylinders, all with teflon coating
    2. Diameter: 800 mm
  4. Head
    1. Working width: 3900 mm
  5. Cooking Kettles and Storage
    1. 2 cooking kettles with 1000 liter capacity each
    2. 1 storage tank with 1000 liter capacity
  6. Drive
    1. PLC base

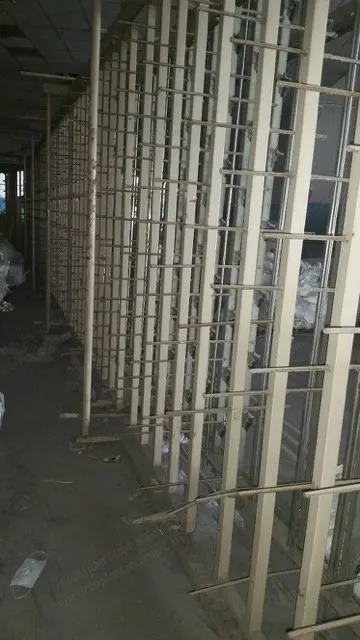

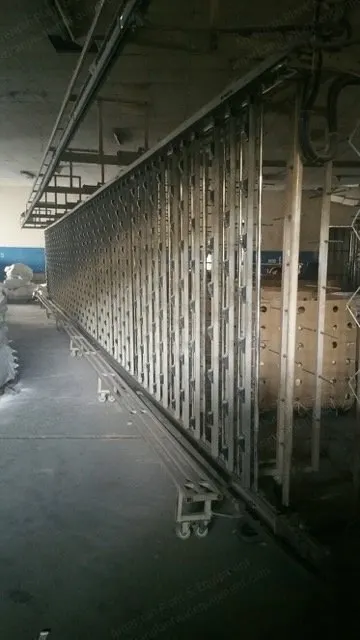

  7. Tsudakoma Warping
    1. Width: 1800 mm
    2. Vertical pitch: 300 mm
    3. Horizontal pitch: 260 mm
    4. Stop-motion type: opti sensor
    5. Number of ends: 854
