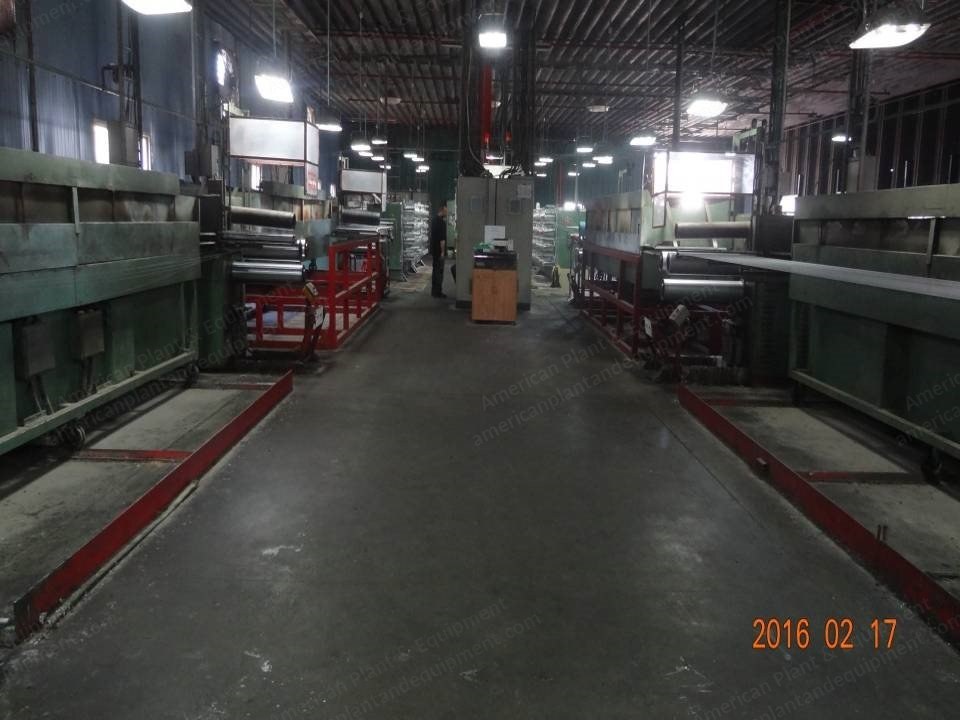

Yarn Bonding, Coating, and Stretching Line, 210 to 6,000 Denier, with Nuova Protex Winder

Yarn Bonding, Coating, and Stretching Line, 210 to 6,000 Denier, with Nuova Protex Winder

Description

  1. Overview
    1. For bonding nylon and polyester sewing threads from 210 to 6,000 denier.
  2. Machine Components And Dimensions

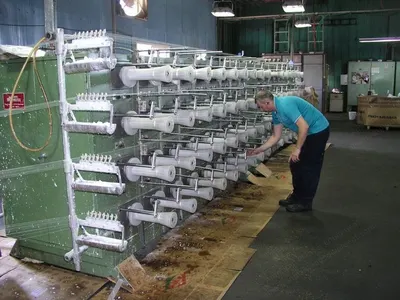

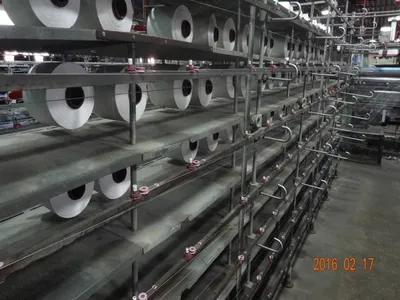

    1. Creel: 2 machines, height 1.700 m, width 0.70 m, length 6.2 m.
    2. Bath: 1 machine, height 2.90 m, width 10.80 m, length 1.35 m.
    3. First oven: 1 machine, 100 kW, height 2.00 m, width 1.90 m, length 5.20 m.
    4. Stretching device: 1 machine, 22 kW, height 1.80 m, width 2.20 m, length 0.80 m.
    5. Second oven (infra): 1 machine, 75 kW, height 2.00 m, width 1.90 m, length 5.20 m.
    6. Stretching device: 1 machine, 22 kW, height 1.80 m, width 2.20 m, length 0.80 m.
    7. Hot lubrication device: 1 machine, 7.5 kW, height 1.50 m, width 1.10 m, length 0.70 m.
    8. Nuova Protex winder: 1 machine, 10.50 kW, height 2.00 m, width 2.00 m, length 7.70 m.
    9. Control and monitoring section: 1 machine, height 2.50 m, width 0.80 m, length 0.70 m.
