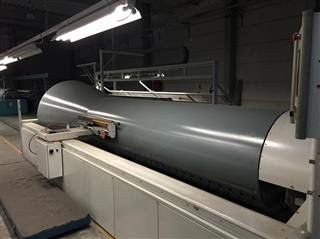

Matthys, M-Warp, 2011, Sectional Warping Machine, Width 3450mm, 768 Positions Creel

Matthys, M-Warp, 2011, Sectional Warping Machine, Width 3450mm, 768 Positions Creel

Description

  1. Overview
    1. Matthys M-Warp sectional warping machine
    2. Year 2011
    3. Width: 3450 mm
    4. Drum conus: 350/1750 mm (11°)
    5. Max beam diameter: 1250 mm
  2. Specifications
    1. Max speed: 1000 meters per minute in warping, 330 meters per minute in beaming
    2. Max tension: 1300 N in warping, 7000 N in beaming
    3. Air pressure: min. 5 bar – max. 8 bar
    4. Yarn count: 250 to 5000 dtex
    5. Electrical connection: 3 x 380 volts (65 kva) – 50 Hz
  3. Features
    1. Waxing device
    2. Beaming with pneumatic pressure rollers
    3. Siemens S7 PLC
    4. Photoelectronic break detection
    5. Dust blowing system
  4. Creel
    1. With Matthys creel, 768 positions (16 package cartridges of 4 x 6 tiers)
    2. 16 spare package cartridges available
    3. Creel with DTR-Z (dynamic tension regulation)
