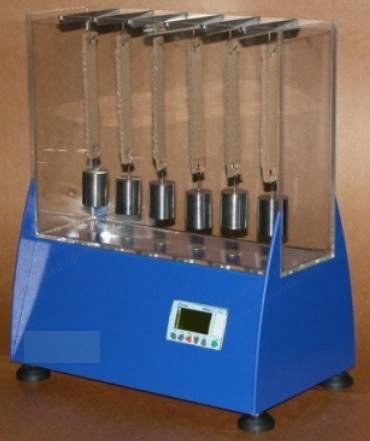

NovaStar, GL176, Water Resistance of Glue Bonding Tester, 6 Test Positions, 110/220V
Scroll to zoom
100%
Description
Overview
Determines the resistance of corrugated paperboard to withstand wet conditions by immersion in water
Test method is applicable to all types of corrugated paperboard, particularly types requiring a high degree of resistance to wet conditions
Tests simultaneously up to six test pieces with automatic time measurement for each test position and corresponding automatic registration of the exact time elapsed from start of test until failure of each test piece
Applications
Corrugated paperboard
Features
Aluminium frame with plastic cover and removable test reservoir for quick water change and cleaning
Test pieces: 20 x 150 mm
Test reservoir: 10 L in clear acrylic
Test weight: 250 g in stainless steel
Test control: built-in PLC controls time measurement and displays test results for each test piece
Measuring range and resolution: unlimited test time and resolution in minutes
Standards
ISO 3038
Fefco No. 9
Benefits
Easy to use
Fast measurement speed
Accurate
Connections
Electrical: 110/220 V, 50/60 Hz
100 W
Single phase
Dimensions
Width: 350 mm
Length: 220 mm
Height: 420 mm
Weight: 15 kg
