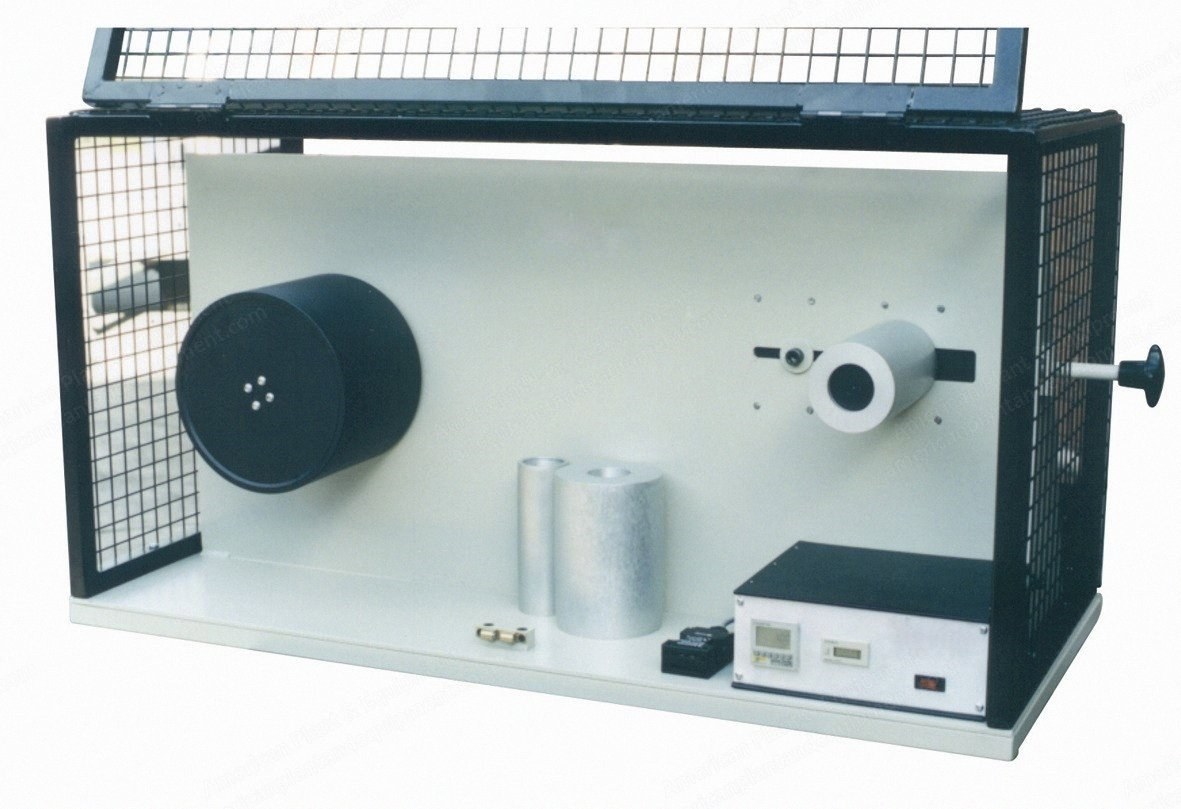

NovaStar, Belt Flex Tester, Model MC155, 3 Free-Wheeling Rollers, 1 Driven Roller, 500x1100x500mm (New)

NovaStar, Belt Flex Tester, Model MC155, 3 Free-Wheeling Rollers, 1 Driven Roller, 500x1100x500mm

Description

  1. Overview
    1. The tests carried out on this machine give an indication of the risk of spontaneous cracking of the shoe of soles due to flexing in wear.
    2. The sole forepart is attached to an endless belt which passes around two rollers, the smaller of which determines the severity of the flexing action.
    3. The endless belt usually accommodates up to six sole units.
  2. Applications
    1. Shoe soles
  3. Features
    1. 3 free-wheeling, crowned flexing rollers: 170 mm x 90 mm, 170 mm x 60 mm, 170 mm x 120 mm
    2. 1 driven roller: 170 mm x 225 mm
    3. Cycle counter
  4. Benefits
    1. Easy to use
    2. Fast results
    3. Accurate
  5. Standards
    1. STM 459F
  6. Connections
    1. Electrical: 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz (please specify when ordering)
  7. Dimensions
    1. Height: 500 mm
    2. Width: 1,100 mm
    3. Depth: 500 mm
    4. Weight: 75 kg
