NovaStar, RL125, 5 Tons per Day Battery Recycling Plant, 4-5 t/h Capacity, 380V (New)

NovaStar, RL125, 5 Tons per Day Battery Recycling Plant, 4-5 t/h Capacity, 380V

Description

  1. Overview
    1. Lead recovery ratio: 95% and above
    2. Plastic recovery ratio: 95% and above
    3. Acid recovery ratio: 90% and above
    4. Consisting of: lead/acid battery breaking and separating system, battery cutter, desulfurization unit, lead melting and reduction blast furnace, rotary furnace for lead melting, lead refinery kettle, and lead refinery pot.
    5. The battery breaking and separating are key steps for the entire battery recycling process.
    6. After battery breaking and separating, there are two outputs (lead, plastic PVC/PP).
  2. Plant Specifications (Excluding the Furnace)
    1. Overall dimensions: 14000 x 6000 x 5000 (mm)
    2. Capacity: 4 to 5 t/h
    3. Power: below 160 kW
    4. Voltage: 380 V 50 Hz (or as per customer’s request)
    5. Overall floorspace needed: 25 meters long x 20 meters wide x 5 meters high
    6. Actual floorspace needed: 23750 mm long x 9754 mm wide x 3961 mm high
    7. Capacity of the traveling crane is 10 tons
  3. Machinery List (4-5 t/h)
    1. Battery cutting machine: 4 sets, 7.5 kW motor
    2. Acid collecting bucket: model 600 x 1200, 2 sets, stainless steel material
    3. Shunt conveyor: model φ350 x 4200, 2 sets, 2.2 kW motor, stainless steel material

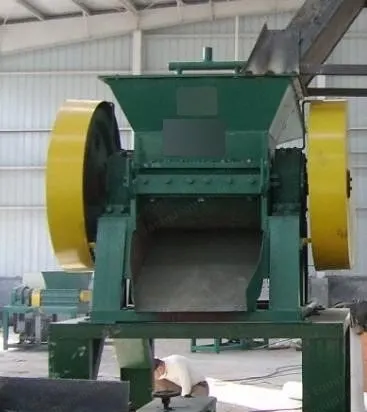

    4. Fine crusher: model X-650, 4 sets, with 45 kW motor, each with three pieces of 12 mm screen mesh, broken interior cavity and hopper is stainless steel
    5. Material hopper: model X900 x 900, 4 sets, stainless steel material

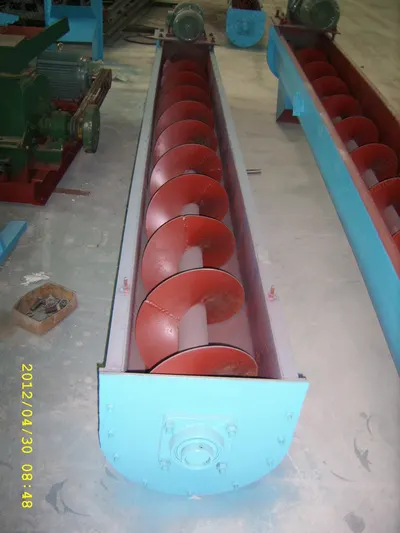

    6. Screw conveyor: model φ200 x 3000, 4 sets, 1.5 kW motor, stainless steel material
    7. Plastic washing tank: model X850 x 2500, 4 sets, 0.37 kW motor, stainless steel material
    8. Gravity separator: 4 sets, 1.1 kW motor, stainless steel material

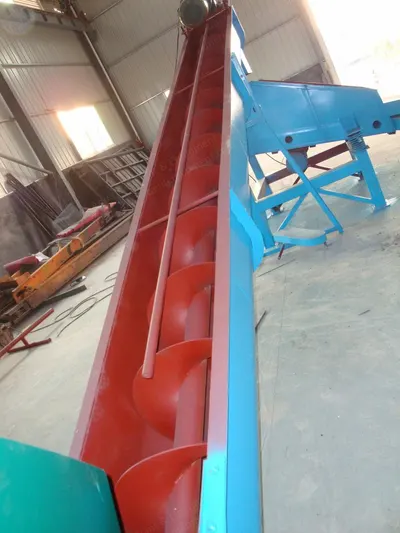

    9. Screw conveyor for lead collection: model φ350 x 4200, 2 sets, 2.2 kW motor, stainless steel material
    10. Screw conveyor for lead recovery: model φ200 x 3000, 4 sets, 1.5 kW motor, stainless steel material

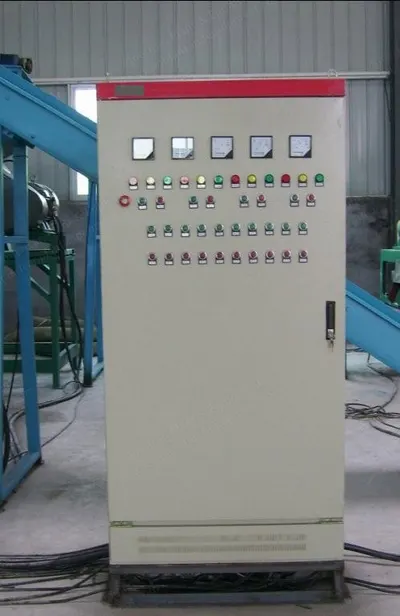

    11. Control cabinet: 2 sets
