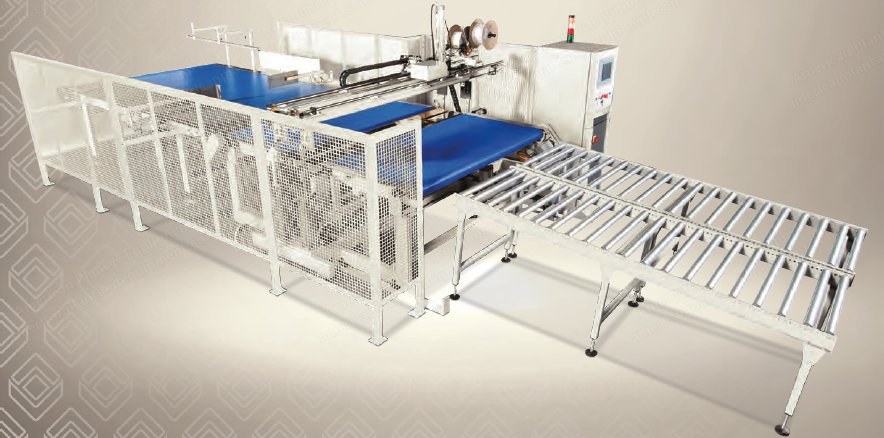

MPT Group, Auto-Tuft, Fully-Automatic Mattress Tufting Machine, Capacity 200 Mattresses per 8 Hours, Widths 2.5ft to 7ft (New)

MPT Group, Auto-Tuft, Fully-Automatic Mattress Tufting Machine, Capacity 200 Mattresses per 8 Hours, Widths 2.5ft to 7ft

Description

  1. Overview
    1. Auto-tuft system, a fully automatic tufting system complete with plc control using touch screen technology
    2. Supplied with product in-feed conveyor and exit conveyor
    3. Horizontal feed, suitable for all spring types, including pocket units
    4. Capable of tufting futons and latex mattresses
    5. Helical avoidance system
    6. Automatic product sizing
    7. Continuous roll feed tufts and washers
    8. Fast change over times between different tuft lengths
    9. Video monitoring system
    10. Auto-stops for tuft and washer replenishment
  2. Specifications
    1. Machine speed based on first to last tuft: 3 feet in 85 seconds, 4’6” to 5’ in 105 seconds
    2. Product widths up to 2’6” to 7’ wide
    3. Product lengths up to 7’
    4. Capable of tufting 200 mattresses per 8 hour work shift
    5. Available with either felt washers or pom-pom washers
    6. 5,000 tufts per role and 1,900 washers per role, to ensure continuous production of 80 to 100 mattresses without the need for downtime
    7. Power: 415 volts @ 50 or 60 Hz
    8. Air pressure: 60 to 90 psi
