Tecnopea, Ghibli, 2002, 20 Forms, 66 Dozen/Hour Max Production (New)

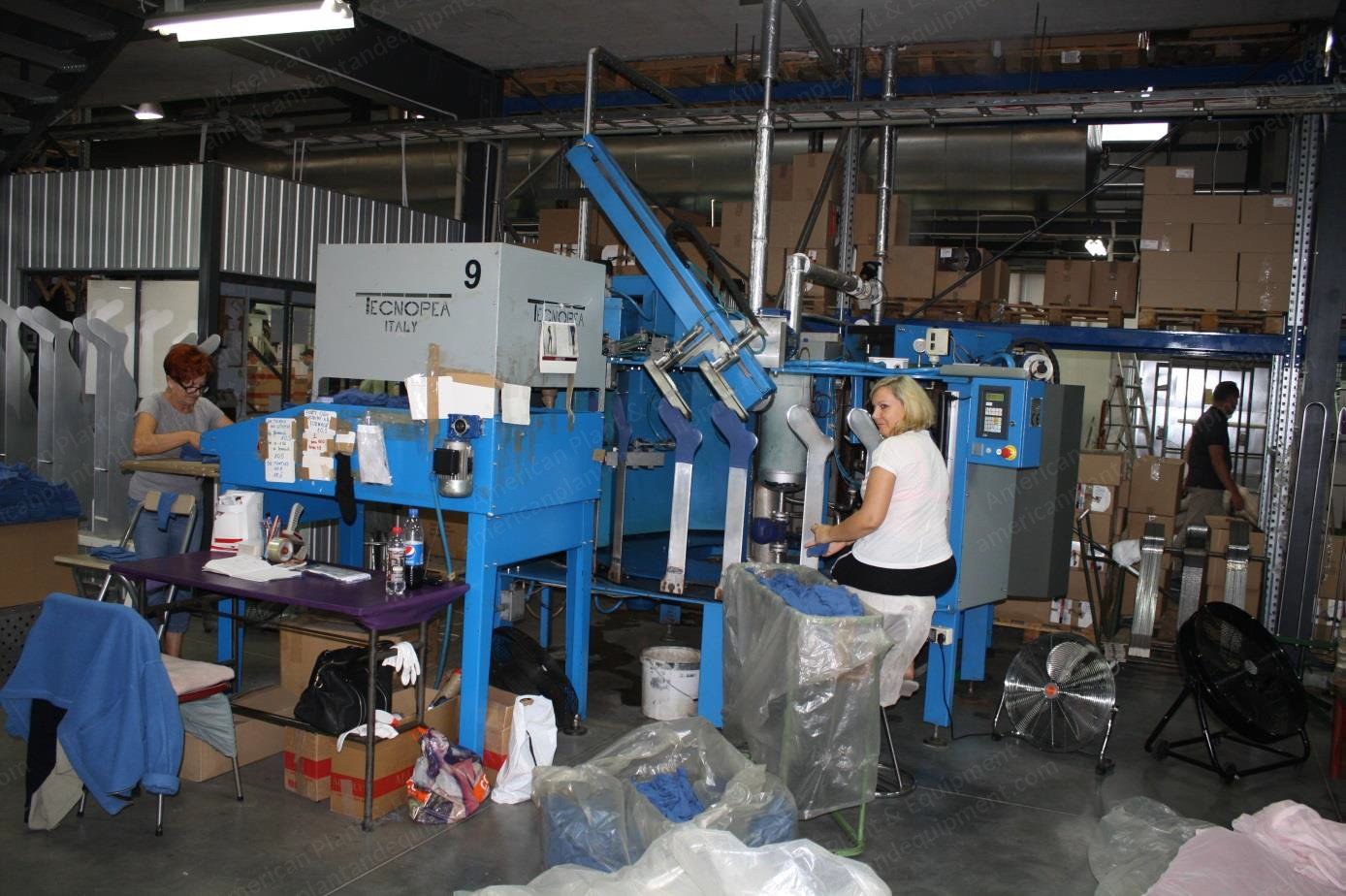

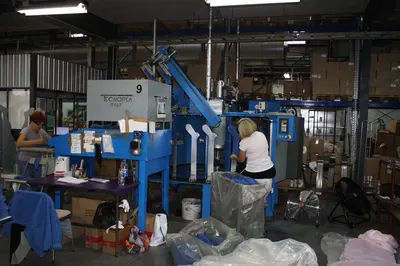

Tecnopea, Ghibli, 2002, 20 Forms, 66 Dozen/Hour Max Production

Description

  1. Overview
    1. Dimensions: 2850 x 3200 x 2700 mm
    2. Weight: 2,350 kg
    3. Power: 18 kW
    4. Absorbed power on average: 9 kW
  2. Specifications
    1. Air pressure: 6 bar
    2. Air consumption: 18 cubic meters per hour
    3. Minimum cycle: 4.5 seconds
    4. Max production: 66 dozen per hour
    5. Press max temperature: 250 degrees Celsius
    6. Max tunnel temperature: 180 degrees Celsius
    7. Max steam pressure: 3 bar
    8. Minimum steam line pressure: 6 bar
    9. Max steam consumption: 25 kg per hour
    10. Sizes: 11 to 12
    11. 20 forms
