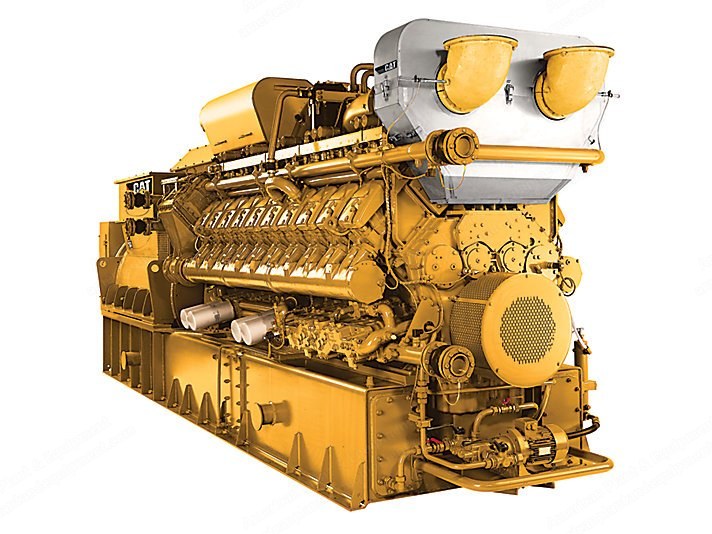

Caterpillar, CG170-20, 2MW, 400V, 1500 RPM, 50Hz, Natural Gas/Biogas Generator

Caterpillar, CG170-20, 2MW, 400V, 1500 RPM, 50Hz, Natural Gas/Biogas Generator

Description

  1. Overview
    1. Generator
    2. Make: Caterpillar
    3. Model: CG170-20
    4. Capacity: 2 MW
    5. Fuel: natural gas, biogas, coal gas
  2. Electrical Specifications
    1. Power: 400 volts @ 50 Hz
    2. Frequency: 50 or 60 Hz
    3. Maximum electrical efficiency: 43.7%
    4. Maximum standby rating: 2000
  3. Engine Specifications
    1. Speed: 1500 rpm
    2. Bore: 6.7 in
    3. Stroke: 7.7 in
    4. Displacement: 3240 cubic inches
    5. Aspiration: TA
  4. Dimensions and Weight
    1. Length: 294 in
    2. Width: 67 in
    3. Height: 86 in
    4. Dry weight: 43651.08 lbs
