NovaStar, FP192, Blending Line, New, 1500mm Hopper Width, 5 Hoppers, 1 Conveyor, 1 Blending Picker (New)

Description

Overview
1. Bale opener with weigh pan
2. Pre-opener
3. Transport fan
4. S-shaped magnet
Control System

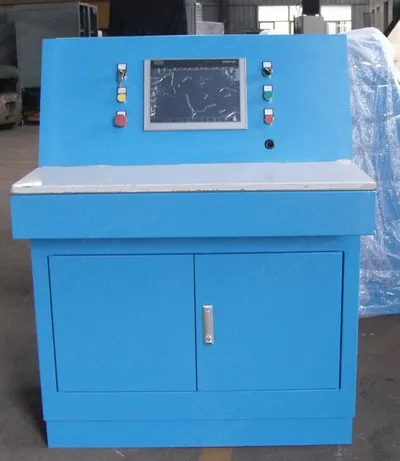

1. PLC with touch screen
2. Power as per client’s voltage and frequency
Bale Opener With Weigh Pan
1. Width: 1500 mm
2. Dimensions: 6950 mm x 2340 mm x 2650 mm
Pre-Opener
1. Working width: 2000 mm
2. Capacity: max 1000 kg/h
3. Raw material: 1 to 90 denier, length 38 to 76 mm cotton, wool, chemical fiber, etc.
4. Power: 9.0 kW
5. Aluminum pinned boards (long steel pins) are furnished on the cylinder to open fiber properly; infeed roller and transport fan are all inverter controlled
6. Infeed roller and beater come with needled felt to prevent fiber from accumulating on the shaft
7. Comes with a receiving conveyor at 400 mm deep and 10,000 mm long
8. Dimensions: 11800 mm (L) x 2650 mm (W) x 850 mm (H)
9. Weight: 4500 kg
Transport Fan
1. Dimensions: 600 mm x 600 mm x 700 mm
S-Shaped Magnet
1. Dimensions: 500 mm x 500 mm x 700 mm
Condition
1. More information is available upon request

Capacity	Max 1000 kg/h
Control system	PLC Touch Screen
