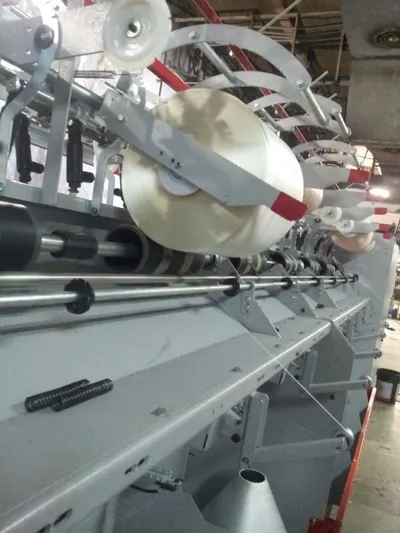

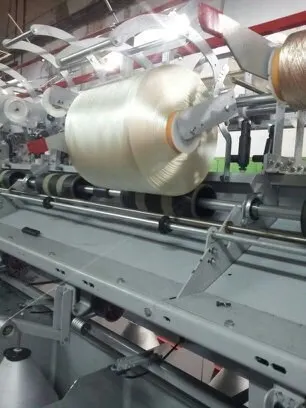

Description Take-Up Package: 290 mm cheese Knotless weight capacity: up to 8 kg Overfeed type: Posifeed, type dual-pulley system with dead weight arm Cradle type: high pressure cradle with dual ct-housings and vibration dampening plates Feed Spindle type: 200 mm / 230 mm / 270 mm / 310 mm Feed type: df bobbins (multi-ply) / cheese Tensioner type: ball-ceramic type Guards: belt guard, brake guard, large separator, split guard Drive Spindle drive: tangential belt with pressure pulley at each spindle Spindle brake: individual positions with mechanical detachable spindle housing Take-up drive: heavy-duty closed oil-circulation gearbox with motorized pump Control system: programmable rpm (std); programmable tpm (optional) Operating Parameters Yarn range (max): 300 to 9,000 denier Twist range (recommended): 60 to 800 tpm Spindle speed (max): 7,000 / 6,000 / 5,000 rpm Yarn speed (max): up to 140 meters per minute and 70 cpm Frame Structure Structure: single-deck, both sides Laser cut steel frame structure Spindles: 40 / 48 / 64 / 72 / 80 Power (40 to 64 spindles): 15 kw / 20 hp Power (64 to 80 spindles): 18.75 kw / 25 hp
