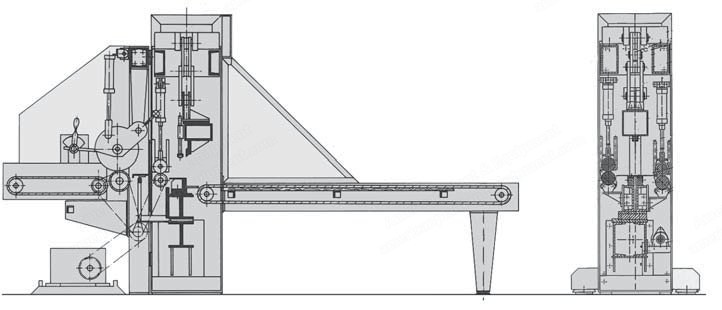

NovaStar, Type 66, Longitudinal and Cross Cutting Machine, Max. 80 Cuts/Min, 2500-6000mm Width

Description

  1. Overview
    1. Longitudinal and cross cutting
    2. Can also perforate many types of fleeces
    3. Hydraulic or pneumatic drives available
    4. Knife beam exchangeable for straight cut (scissor cut)
  2. Specifications
    1. Machine widths available from 2500 mm to 6000 mm
    2. Free passage of material: max. 300 mm
    3. Cutting frequency: max. 80 cuts per minute
    4. Duration of cut (hydraulic): 0.5 seconds
    5. The blades are directly driven over a shaft, not electrically
    6. Standard diameter of blades is 450 mm
    7. Extra big diameter blades available: 750 mm
  3. Additional information
    1. More information is available upon request
