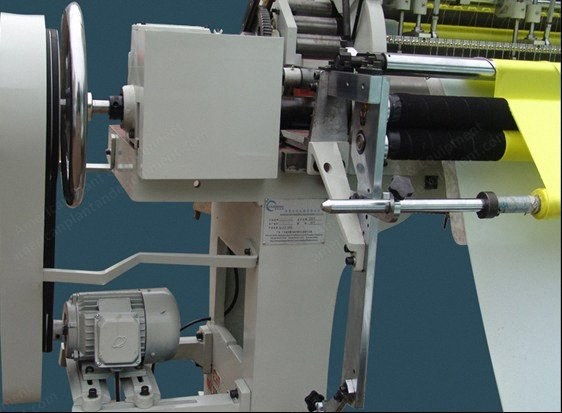

NovaStar, QL195, Mechanical Shuttle Multi-Needle Machine, 94 in Width, 2 Needle Bars, 200 to 500 RPM (New)

NovaStar, QL195, Mechanical Shuttle Multi-Needle Machine, 94 in Width, 2 Needle Bars, 200 to 500 RPM

Description

  1. Configuration
    1. Model: 94-2 with 2 rows of needles (2 needle bars)
    2. 94 inches wide
  2. Specifications
    1. Dimension (l x w x h): 4000 x 560 x 1600 mm
    2. Weight: 2200 kg
    3. Needle row distance: 1 - 2: 76.2 mm
    4. Needle row distance: 25.4 mm
    5. Saddle stroke: 203.2 mm (4)
    6. Output: 20-120 m/h
    7. Needle no.: #16, #19
    8. Max needle qty: 188 pcs
    9. Rotating speed: 200 to 500 rpm
    10. Voltage: 380 volts / 50 Hz, 220 volts / 60 Hz
    11. Output: 2200 kgs
