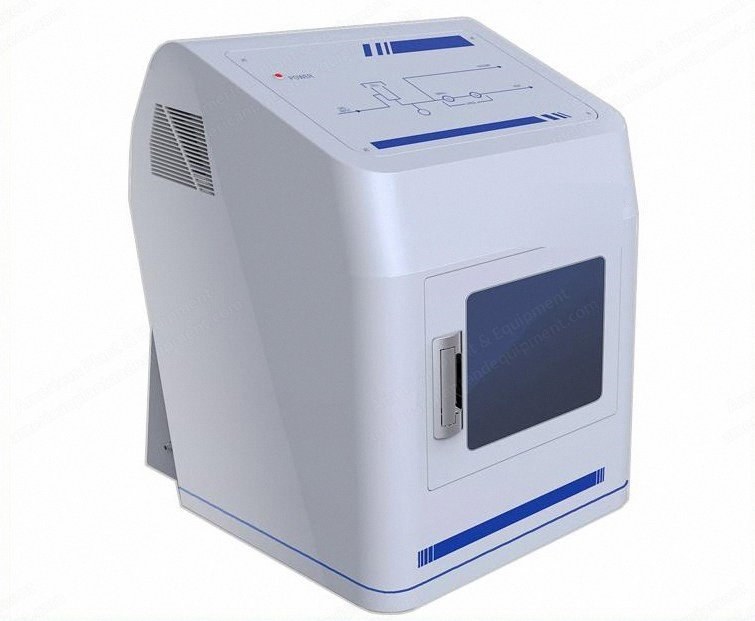

NovaStar, GL180, Density Analyzer, GL180 to 2 min Test Speed, Dual-Station Analysis (New)

NovaStar, GL180, Density Analyzer, GL180 to 2 min Test Speed, Dual-Station Analysis

Description

  1. Performance Parameters
    1. Test content: True density; density (focusing on materials without closing hold, such as metal, liquids and so on).
    2. Test precision: The accuracy is better than ±0.03%; repeatability is better than ±0.015%; and the resolution ratio is 0.0001 g/ml.
    3. Test speed: It will take GL180 to 2 min to complete the entire test process (constant temperature time is not included), dual-station analysis efficiency will be improved twice.
  2. Analytical Station
    1. D1: One analytical station, test one sample meanwhile.
    2. D2: Two completely separate analytical stations, test two samples at the same time.
  3. Applied Scope
    1. The sample density is not limited; it can be used to test the true density of some solid samples, such as a variety of powder form, granular form, block form, foam form and so on, as well as of the pulpous materials, non-volatile liquid samples and so on.
    2. Also it can test the percentage of the opening area and the percentage of the closing area of the foaming materials, metallic materials and so on.
    3. Test volume: More than 0.01 ml, adaptive to samples with a variety of volumes.
  4. Technical Features and Advantages
    1. Full-auto: One key to complete gas channel swashing, sample swashing, system constant-temperature, multiple and repeated test and provide results.
    2. Test method: It adopts a “bottom-installing type” test method that takes sample instruments that change the volume of cavity by filling; it is featuring of an advantage of high utilization ratio for sample test cavity volume, so that it can improve the test precision.
    3. “Bottom-installing bayonet type” sample cell can meet the demands of micro volume and large volume sample-installing conveniently, so as to realize the target of improving test precision.
    4. Constant temperature mode: Full-auto programmed constant temperature mode, the constant temperature precision error is <0.1 ℃; programmed control constant temperature process, and enter into test process automatically.
    5. Valve type: Gas-controlling valve; it can eliminate the change of benchmark cavity temperature resulting from heat when the magnetic valve structural movement in similar instruments and the nonuniformity of temperature, so as to guarantee an ideal constant temperature effect.
    6. It has shifted the status fundamentally that adopting software correction method to minimize the error resulting from magnetic valve heating that damages constant temperature effect.
