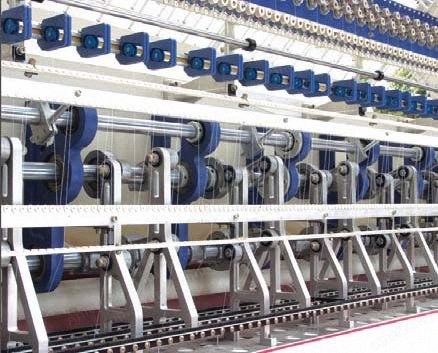

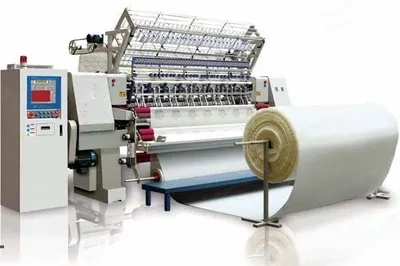

NovaStar, QL197, Computerized Lock Stitch Multi-Needle Quilting Machine, 2 Needle Bars, 2450mm Width, 3.5 kW (New)

NovaStar, QL197, Computerized Lock Stitch Multi-Needle Quilting Machine, 2 Needle Bars, 2450mm Width, 3.5 kW

Description

  1. Overview
    1. 2 needle bars
    2. Needle #: #16, #19
  2. Specifications
    1. Dimensions: 4500 mm x 1120 mm x 1750 mm
    2. Width: 2450 mm
    3. Space between needle rows: 76.2 mm
    4. Space between needles: 25.4 mm
    5. X-axis movement displacement: 305
    6. Thickness of quilting: less than or equal to 25 mm
    7. Stitch length: 2 to 5 mm
    8. Speed of production: 20 to 100
    9. Speed of main shaft: 550 to 600 rpm
    10. Total power: 3.5 kW
    11. Power: 380 volts @ 50 Hz or 220 volts @ 60 Hz
    12. Weight: 2300 kgs
