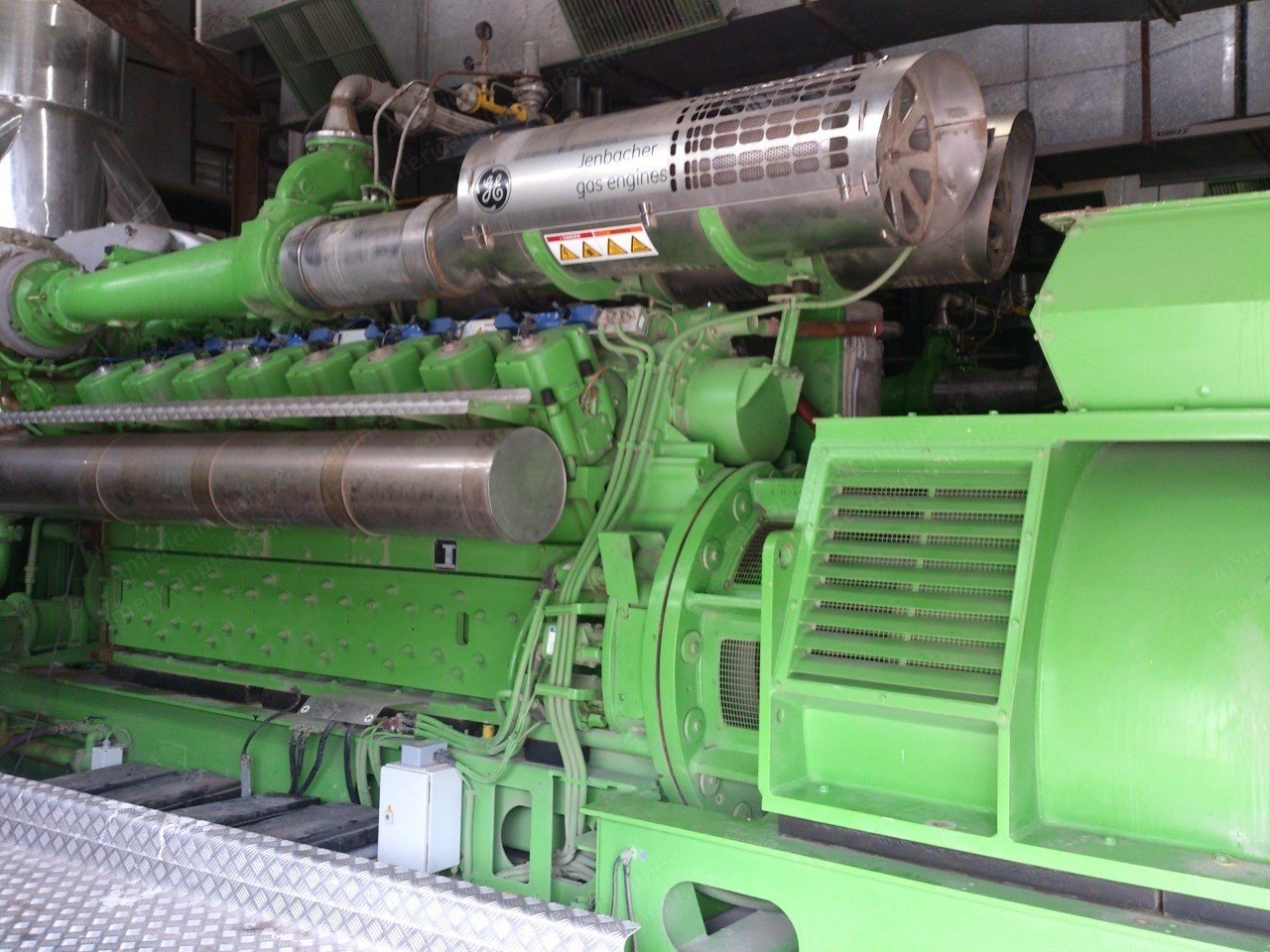

Natural gas based spark ignited gas engine with accessories
Alternator, 11 kV, 50 Hz, 1.0 P.F., 1500 rpm
Standard tools
Flexible coupling for engine/alternator
Common base frame
Anti-vibration isolators
Flexible connections
Combustion Air Intake and Exhaust System
Intake air filters
Exhaust silencer
Flexible bellow at T/C outlet (after turbo)
Exhaust ducting from genset to chimney (total running 15 meters per set in silencer loop only) and flexible bellows
Support structure for above referred exhaust piping
Exhaust stack/chimney
Cooling System
HT pump
HT water circulating pump
LT pump with motor
Jacket water preheater
TCV in HT circuit
Mixture intercooler water thermostat
Expansion water tank (HT + LT)
Radiator in HT circuit
Interface cooler (LT circuit)
LT cooling water distribution system
Jacket water filling system (HT circuit)
Hot water piping from genset to VAM including pumps, valves, etc.
Lube Oil System
Fresh lube oil filling system comprising of tank, pump, piping with necessary valves, bends and fittings
Lube oil cooler
Lube oil filters
Solenoid valves for automatic oil top up
Arrangement for used lube oil
Starting System
Starting battery, motor and cables
Starting battery, 24 V
Engine electric starter motor
Cables with clamps
Charger for above 24 V battery
Fuel Gas System
Fuel gas pipework along with necessary supports from the main gas valve up to the genset
Gas train unit
Flexible gas pipe/hose
Gas flowmeter in the gas inlet line to engine
Electrical Power and Control System
Control panel for engine management, control and supervision all relevant functions of gas engine, with single synchroniser
Master control panel (island mode/grid mode)
Battery bank with charging system for GCBP
Generator incomer power panel
PAP (plant auxiliary panel) for genset auxiliaries
Auxiliary transformer, bus PT and NGR panel
Earthing strips from earthing station to the earthing grid near the earthing pits
Earthing strips for vendor supplied electrical installations within the GE house
Electrical Installation Material
Power cables from alternator to the genset power panel
Control and instrument cables with termination kits, lugs, cable trays/racks, etc. as required for interconnecting the system within the GE house between the genset and genset panel supplied by the vendor
General
Air conditioner for the control room
Ventilation system for giving provision for combustion air and room air flow out of the power house as per vendor requirement
