NovaStar, CA104, Corrugated Cardboard Production Line, 1600mm Width, 80 m/min, Steam Heated (New)

NovaStar, CA104, Corrugated Cardboard Production Line, 1600mm Width, 80 m/min, Steam Heated

Description

  1. Overview
    1. Width: CA104 mm
    2. Flute type: E, diameter 280 mm chrome plated
    3. Steam heated
    4. Speed: 80 meters per minute
    5. Economic working speed: 60 to 70 meters per minute
    6. Raw paper requirement: CA104 mm
    7. Length of entire line: approx. 20 meters
    8. Cutting length: 400 to 2400 mm
    9. Cutting accuracy: ±1 mm at steady working speed
  2. Paper Specifications
    1. Face paper: 150 g/m² to 180 g/m² (moisture 8 to 10%)
    2. Corrugated paper: 125 to 150 g/m², pressure index (NM/g) (moisture 8 to 10%)
    3. Core paper: 110 to 135 g/m², pressure index (NM/g) (moisture 8 to 10%)
  3. Power
    1. Power: 55 kW
  4. Included Components

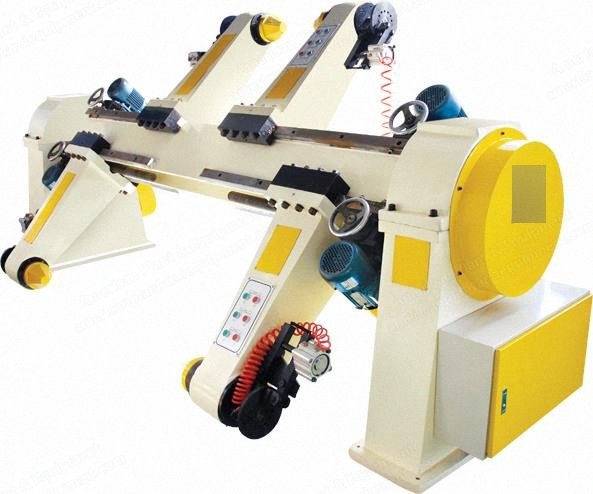

    1. Electric shaftless holder: 1 set, size Φ1500 mm x CA104 mm, manual brake, electric moving, with 2 suits rack
    2. Single facer: 1 set, size 1600/Φ280 mm, alloy chrome plated roller Φ280 mm, 48CrMo material, hardness HRC55°
    3. Cutting machine: 1 set, CA104 model, continuously variable transmission adjust the cutting sizes, easy to operate
    4. Glue mixer: 1 set, 800 mm
    5. Steam boiler: 1 set, 1 ton capacity, includes boiler, pumps, pipes
    6. Diesel oil burner: 1 set, Italy brand, imported
