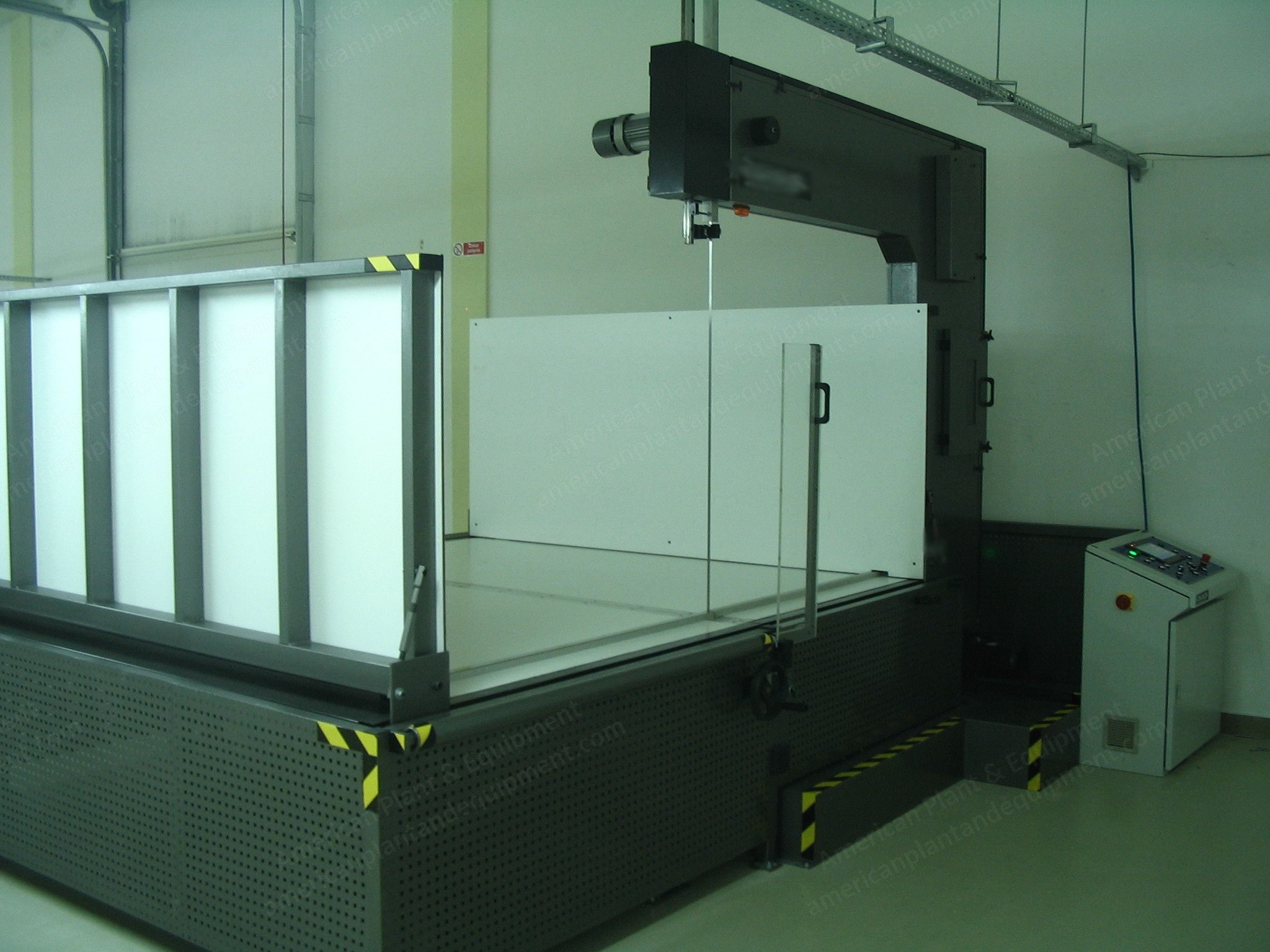

Description Overview Standard table sizes available in multiple configurations Standard cutting height: 1200 or 1300 mm Table can be adjusted with a blower, enabling easy movement of heavy blocks Table Size Options Option A: Right from blade 1250 mm x left from blade 1250 mm x cutting length 2100 mm Option B: 1500 mm x 1500 mm x 2200 mm (2400 mm) Option C: 2050 mm x 2050 mm x 2450 mm (2650 mm) Wall Combinations Option A: Just the right wall Option B: Left + right only in vertical position Option C: Right wall vertical + left wall vertical / horizontal Motors and Drivers 3 servo drives (Mitsubishi): one for moving the cutting head, one for the left wall and another for the right wall 3 motors: one for blade movement, one for the blade guide, blade sharpeners, and one as an option for a blower
