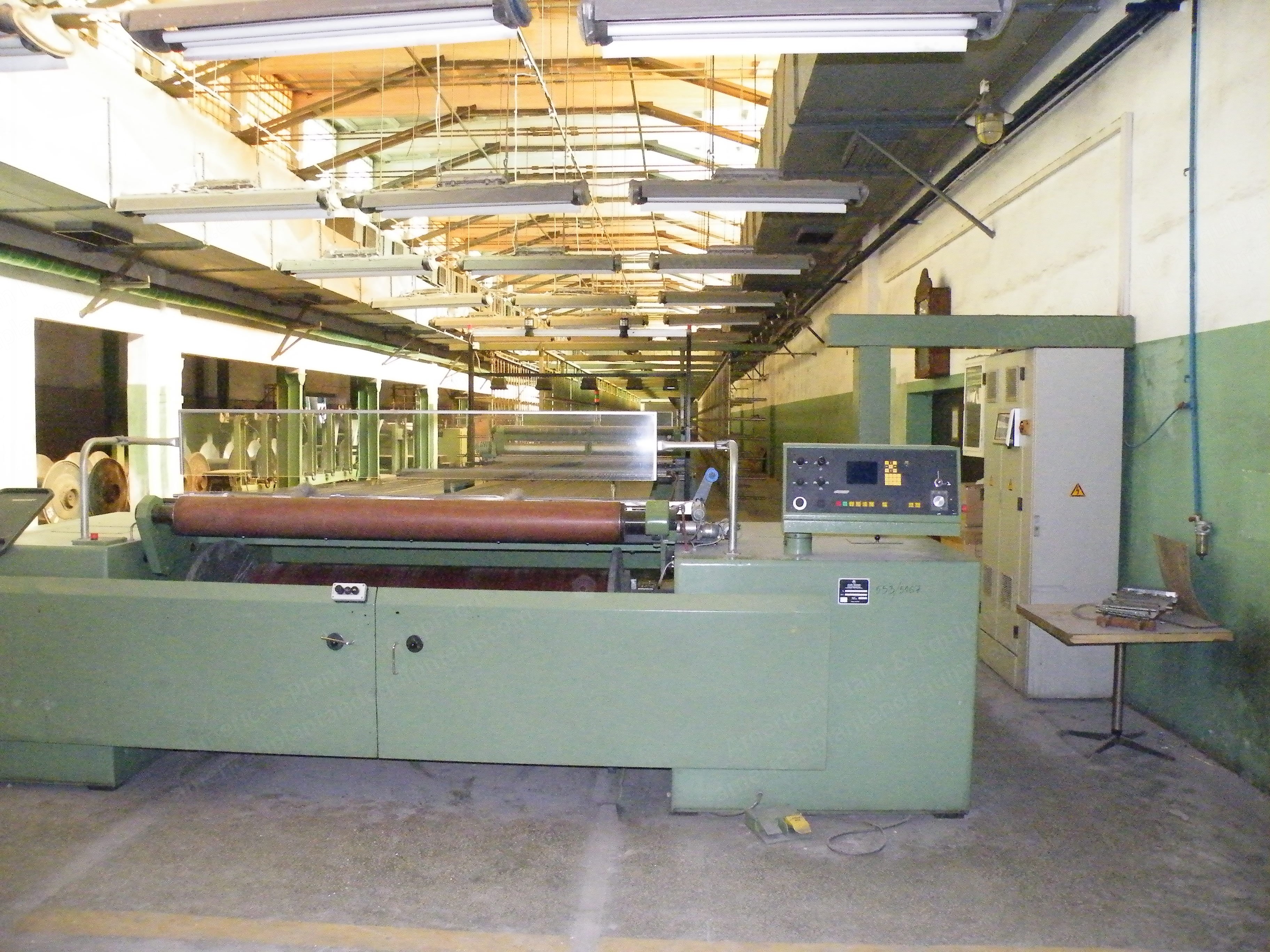

Karl Mayer, ZM-1-1800/100, 1996, Beam Warping Machine with Karl Mayer Rotal Assembling Machine, 1800mm Warp Width, 1000mm Beam Diameter

Karl Mayer, ZM-1-1800/100, 1996, Beam Warping Machine with Karl Mayer Rotal Assembling Machine, 1800mm Warp Width, 1000mm Beam Diameter

Description

  1. Karl Mayer Beam Warping Machine
    1. Model: ZM-1-1800/100
    2. Year: 1996
    3. Speed of warping: up to 1000 m/min
    4. Warp width: 1800 mm
    5. Beam diameter: 1000 mm
    6. Creel type GD for 1000 yarn packages
    7. Creel gauge: 250 mm
    8. With KFD yarn tensioners
    9. For filament and spun yarns
    10. Count range: dtex 17 up to dtex 110
  2. Karl Mayer Rotal Assembling Machine
    1. Type: ID270/100
    2. Year: 1996
    3. For 12 warp beams
    4. Max. warp beam diameter: 1000 mm
    5. Max. warp beam weight: 1500 kg
    6. With pneumatic yarn crossing device
    7. Assembly head with cylinder diameter up to 1000 mm
    8. Max. warp width: 2700 mm
