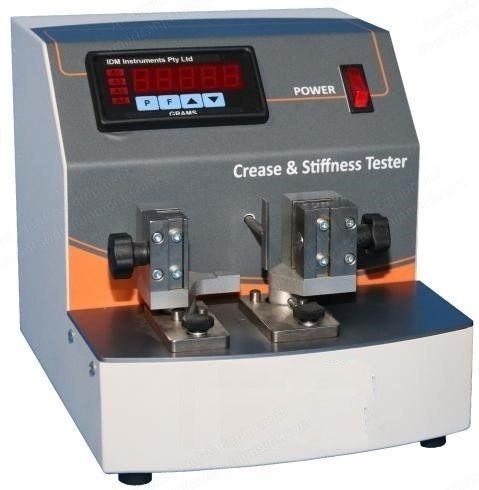

IDM Instruments, C0039-M1, Crease and Stiffness Tester, Range 0-1000gf, Bending Angle 90 Degrees (New)

IDM Instruments, C0039-M1, Crease and Stiffness Tester, Range 0-1000gf, Bending Angle 90 Degrees

Description

  1. Overview
    1. Easy to use, dual purpose instrument
    2. Measures board stiffness and crease stiffness
    3. Robust construction
  2. Specifications
    1. Range: 0 - 1000.0 gf
    2. Digital display in grams
    3. Bending angle: 90°
    4. Stiffness bending: 15°
    5. Crease stiffness sample: 38 x 36 mm
    6. Board stiffness sample: 70 x 38 mm
    7. Accuracy: 0.5 g
    8. Test time: 15 seconds
    9. Calibration weights: 200 g included
    10. RS 232 output: included
  3. Applications
    1. Paper and carton board manufacturers
    2. Ink and coating
    3. Packaging manufacturers
    4. Packaging development
  4. Options
    1. 90 degree standard jaw, adjustable bend length
    2. Radius folding jaw
    3. Crease and stiffness cutter required (to cut samples) C0016
  5. Standards
    1. BS 6965
    2. BS 3748
    3. ISO 493: 1992
  6. Connections
    1. Electrical: 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz (please specify when ordering)
  7. Dimensions
    1. Height: 140 mm
    2. Width: 275 mm
    3. Depth: 150 mm
    4. Weight: 5.5 kg
