Hitex, HPR6, Robotic Tufting Machine, 3 Sizes Available, Hitex Pro-Tuft Head, 400V (New)

Hitex, HPR6, Robotic Tufting Machine, 3 Sizes Available, Hitex Pro-Tuft Head, 400V

Description

  1. Overview
    1. Robotic tufting machine available in three sizes: 6 x 4 meters, 4 x 3 meters, and 3 x 2 meters

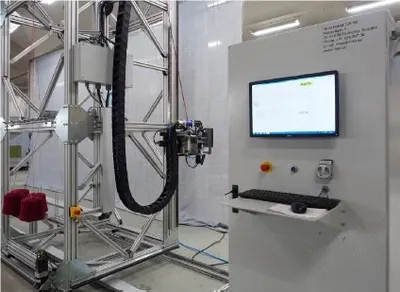

    2. Electronic control cabinet with PC
    3. Software included
  2. Tufting Head

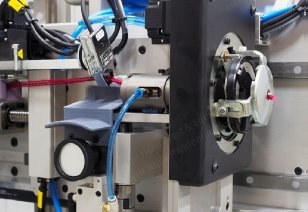

    1. Tufting head: Hitex Pro-Tuft
    2. Dynamic pile height device
    3. Dynamic cut/loop function
    4. Pile heights: 12 to 45 mm, 20 to 110 mm
    5. Loop pile: 4 to 45 mm
  3. Frame and Creel

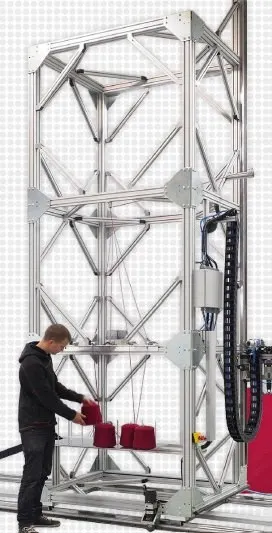

    1. Frame: 1 x moveable steel frame, including holders
    2. Creel: Hitex creel with 6 individual yarn sensors
  4. Robot Dimensions
    1. Robot size 6 x 4 meters: 1100 mm long x 450 mm wide x 500 mm high
    2. Robot size 4 x 3 meters: 900 mm long x 450 mm wide x 400 mm high
    3. Robot size 3 x 2 meters: 700 mm long x 450 mm wide x 300 mm high
  5. Electrical and Pneumatic Specifications
    1. Voltage: 400 volts, 50/60 Hz (as per client’s request)
    2. Power: 1 kW
    3. Air consumption: approx. 300 liters per minute
    4. Minimum working pressure: 8 bar
    5. Recommended power of compressor: 600 liters per minute, 10 bar
  6. Recommended Accessories and Backing
    1. To be used with a shearing machine, vacuum system, and pile preparation machine
    2. Recommended backing: woven polyester 60/60
  7. Condition and Availability
    1. More information is available upon request
