Trutzschler, Open End and Ring Spinning Plant, 2006, 7,000 Spindles, 1,800 Rotors

Trutzschler, Open End and Ring Spinning Plant, 2006, 7,000 Spindles, 1,800 Rotors

Description

  1. Opening Plant Cotton Line

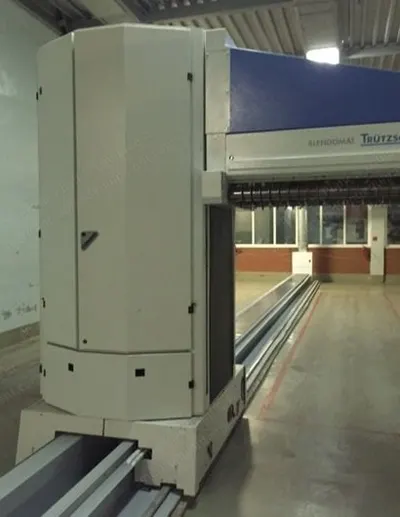

    1. Automatic bale opener blendomat bo-a 1720, width of treatment max 1720 mm up to 3 groups of bale of each side, feeding up to free lines, total length 18185 mm, microcomputer control, installed power 12.5 kw, brand Trutzschler, year 2007.
    2. Feed unit of the opener plant p-1, working width 1060 mm max, maximum output 320 kg/h, length of converted fiber 25-65 mm, degree of opening (weight of one patch) 0.3-1.0 gr, installed power 1.5 kw, brand Kalinin Furfactory, year 1984.
    3. Integrated separator of heavy particles (electronic metal separator) sp-em, with integrated spark signaling, fire sensor and cylinder co2, microcomputer control system, maximum output 1800 kg/h, brand Trutzschler, year 2007.
    4. Fire signaling device lc-f1 for the entire system of the opener line (early warning system of fire fmz 4100 gab-6), year 2006.
    5. Support of the condenser br-co staend, steady for mounting the condenser br-co; condenser br-coi, material separator with a built-in fan, separate drive for the filter drum and fan, frame width on light 1000 mm, installed power 8.6 kw, brand Trutzschler, years 2006 and 2007.
    6. Precleaner cl-p, double shaft cleaner to clean cotton, computer control system, installed power 7.87 kw, brand Trutzschler, year 2006.

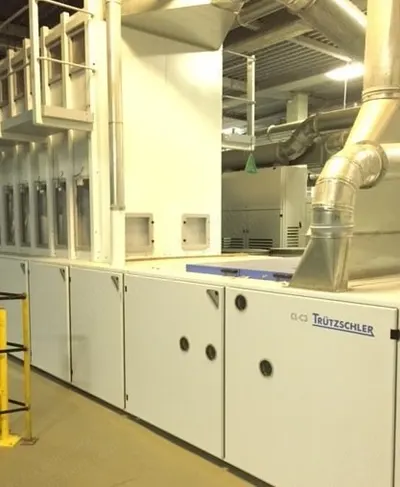

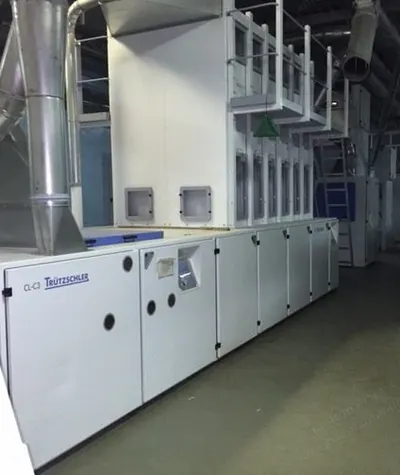

    7. Integrated blending machine mx-16, blend with mixer 6 bunkers for controlled mixing, microcomputer control system, installed power 5.3 kw; cleaner gleanomat cl-c3, with 3 cleaning shafts, microcomputer control system, installed power 13.61 kw, brand Trutzschler, year 2006.
    8. Separator of foreign particles securomat sp-e, machine for the selective separation of foreign particles and fibers, fitted units of loosening with integrated system of dedusting, 2 digital cameras, 32 injectors to separate foreign particles, microcomputer control system, installed power 6.5 kw; condenser br-ms1600, width on light 1600 mm, installed power 6.6 kw, brand Trutzschler, year 2007.
    9. Fan br-fd 425, fan for material transportation, diameter of the blade 425 mm, the fan speed is controlled by the motor controlled by frequency, installed power 3 kw, brand Trutzschler, years 2006 and 2007.
    10. Magnetic catcher br-mt, integrated in the pipe line for collecting metal objects passing through the pipeline, brand Trutzschler, year 2006.
    11. Switching manual damper br-mc for changing the direction of flow of the material inserted into the pipeline; switching manual damper br-mc 180; switching manual damper br-fd 425, brand Trutzschler, year 2006.
    12. Fire damper br-fp (fsk), safety device integrated into pipeline which automatically closes in the event of fire, brand Trutzschler, years 2006 and 2007.
    13. Waste collector br-wc, movable container for waste collection, year 2006.
    14. Electronic control installation lc-m, electronic control system of installation includes switchgear for all connected machines (excluding carding machines and tape), brand Trutzschler, year 2006.
    15. T-shaped separator br-td, built-in pipeline for separating the locks of fibers into 2 groups carding machine, brand Trutzschler, year 2007.
  2. Carding Line (For Cotton)

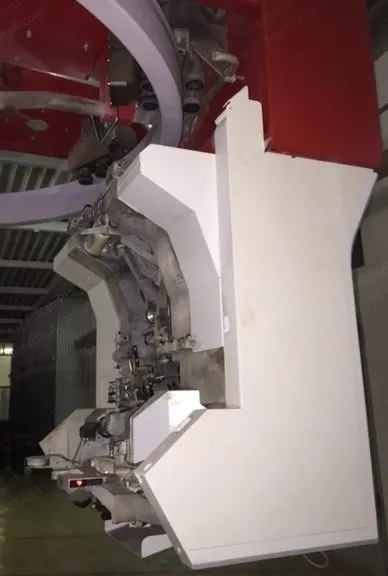

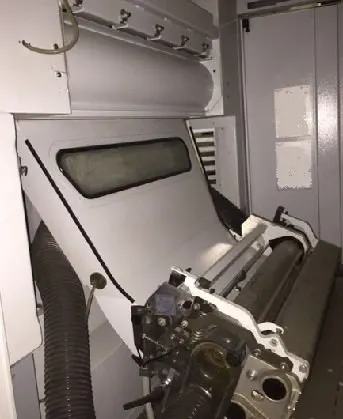

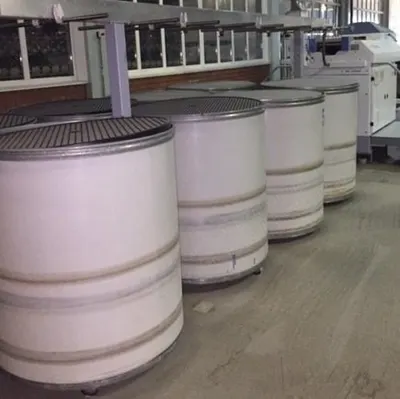

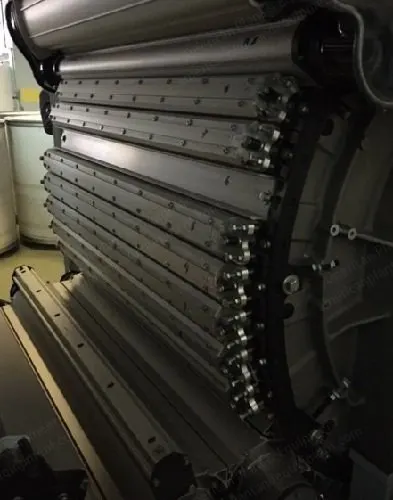

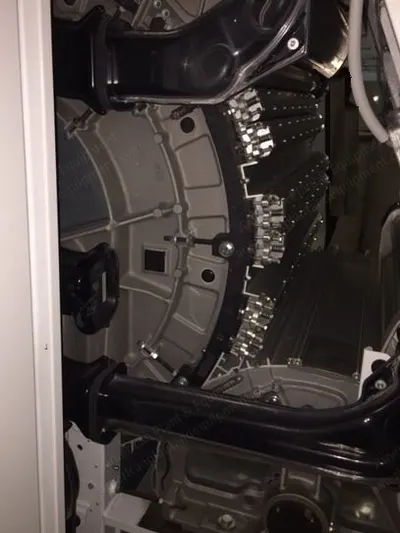

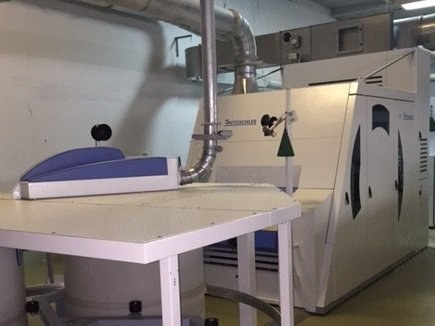

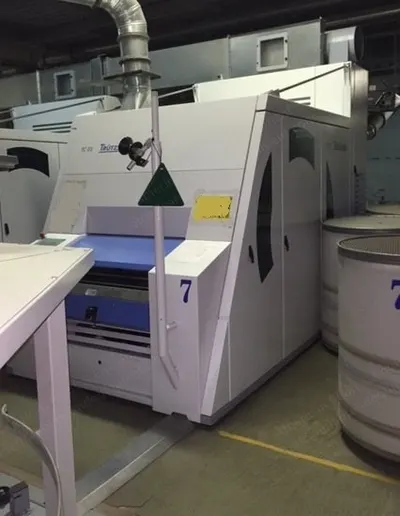

    1. High-carding machine tc-03, has integral bunker feeder directfeed, detection of the thickening and the presence of metal in the stream, node of pre-opening webfeed with three opener shafts, multifunctional package of technology of intensive cleaning multiwebclean, microcomputer control system with color touch screen, extensive quality control (linear density of the tape, unevenness of the tape, spectrogram, thickenings), output 150 kg/h, installed power 9.5 kw; device for can changer tc-cc 1000, for installation underfloor, for the can with the diameter 1000 mm, brand Trutzschler, years 2006 and 2007.
    2. Support for grinding system tc-sf, pair of adapters for shaft removal during the grinding of flat tc-03, brand Graf, years 2006 and 2007.
    3. Tapes grinding machine tsg, for set grinding of the main drum of carding machine tc-03, brand Graf, year 2005.
    4. Tapes grinding machine psg, transportable tapes grinding roller for grinding of flat of carding machine tc-03, brand Graf, year 2005.
    5. Device tc-me for main and removable cylinder covering of carding machines tc-03, brand Graf, year 2006.
    6. Machine for removing flats, for removing of flat tops with cast or aluminum rod, power consumption 0.75 kw, output 15 m/min, brand Trutzschler, year 2007.
    7. Pneumatic machine for mounting accessories on flat rfm-40, for mounting of movable flats on cast or aluminum rod, length 2150 mm, width 750 mm, height 1750 mm, weight 500 kg, power 0.75 kw, output 0.5 m/sec, brand Trutzschler, year 2007.
  3. Cotton Drawing Frame

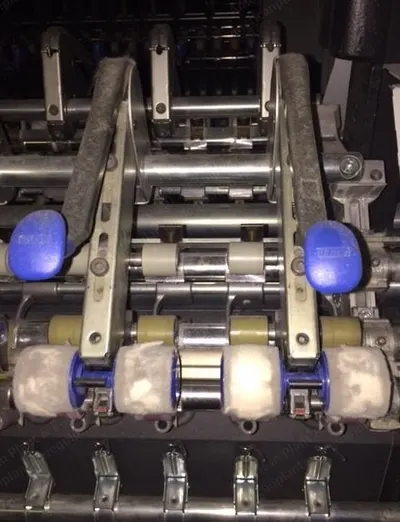

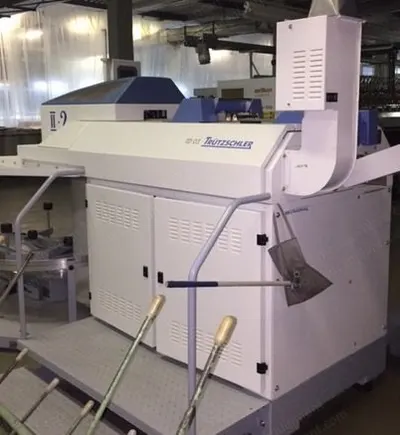

    1. Cotton drawing frames with high performance td-03, highly dynamic servo drives, separate drives for adjusting of speed, release and extraction, drafting system “four to free” with adjustable pressure, pneumatic regulator load on each of the upper shafts, computer control with touch display, centralized exhaust of air, also the system td-al for adjustment in servod.
