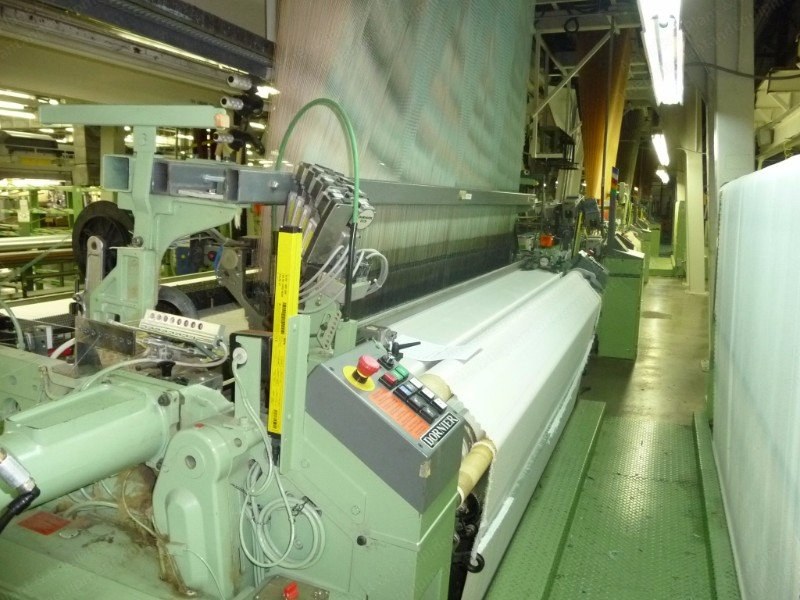

Dornier, HTV8/J and LTV8/J, 1996 to 2000, Bonas Jacquards, 3200 to 3400mm Width, 8 Colors

Dornier, HTV8/J and LTV8/J, 1996 to 2000, Bonas Jacquards, 3200 to 3400mm Width, 8 Colors

Description

  1. Overview
    1. Listing quantity: 2
  2. Machine 1
    1. Model: LTV8/J air jet
    2. Width: 3200 mm
    3. Year: 2000
    4. 8 colors
    5. Electronic let-off and take-up
    6. Off-loom take-up
    7. 1000 mm warp beam
    8. Bonas SSJ jumbo jacquard head (5,376 hook capacity, 3,840 installed)
  3. Machine 2
    1. Model: LTV8/J air jet
    2. Width: 3400 mm
    3. Year: 1999
    4. 8 colors
    5. 1000 mm max warp beam
    6. With electronic let-off and take-up
    7. 8 x Roj Electrotex Super Elf weft feeders
    8. With Bonas SSJ jumbo jacquard head (5,376 hook capacity, 3,840 installed)
  4. Machine 3
    1. Model: LTV8/J air jet
    2. Width: 3400 mm
    3. Year: 1998
    4. 8 colors
    5. 1000 mm max warp beam
    6. With electronic let-off and take-up
    7. 8 x Roj Electrotex Super Elf weft feeders
    8. With Bonas SSJ jumbo jacquard head (5,376 hook capacity)
    9. 2 x looms with 2,400 hooks installed
    10. 1 x loom with 1,920 hooks installed
  5. Machine 4
    1. Model: LWV8/J air jet
    2. Width: 3400 mm
    3. Year: 1996
    4. 8 colors
    5. 1000 mm max warp beam diameter
    6. With electronic let-off and take-up
    7. Off-loom take-up
    8. 8 x Roj Electrotex Super Elf weft feeders
    9. With Bonas CSJ jacquard (2,600 hook capacity, 1,200 installed)
  6. Machine 5
    1. Model: LWV8/J air jet
    2. Width: 3200 mm
    3. Year: 1998
    4. 8 colors
    5. 1000 mm max warp beam diameter
    6. With electronic let-off and take-up
    7. 8 x Roj Electrotex Super Elf weft feeders
    8. With Bonas DSJ jacquard head (3,200 hook capacity, 2,400 installed)
  7. Machine 6
    1. Model: LTV6/J air jet
    2. Width: 2500 mm
    3. Year: 2000
    4. 6 colors
    5. 1000 mm warp beam diameter
    6. With electronic let-off and take-up
    7. Off-loom take-up
    8. 4 x Roj Electrotex Super Elf weft feeders
    9. With Bonas DSJ jacquard head (3,200 hook capacity, 1,600 installed)
  8. Additional Information
    1. More information is available upon request.
