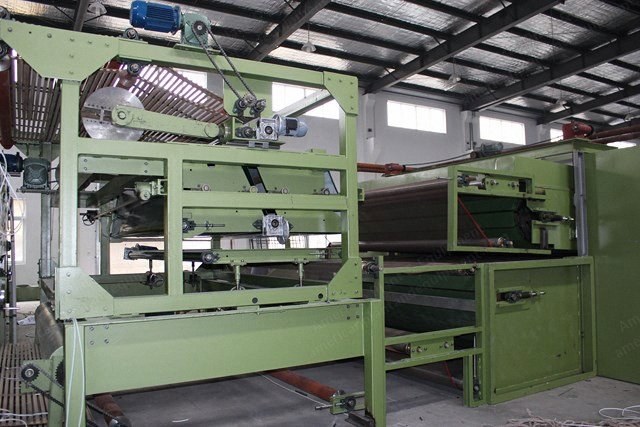

Description Overview Linear speed: 45 m/min With inclined apron, double-roll clamp, reciprocating lapping, bottom-apron outlet Vertical thickness controlled by reciprocating lapping: 30 mm to 150 mm All motors controlled by inverter Clamp apron for lapping: anti-static PVC leather apron Input apron width: 2700 mm Input apron speed: ≤ 40 m/min (adjustable) Output apron width: 2700 mm Output apron speed: 1 to 12 m/min (adjustable) Irregularity of fiber web: ≤ 3% (any 3 points at right, middle and left side) Standard Design Specifications Dimensions: 2700 mm wide x 3750 mm long x 2700 mm high Grams per square meter: 3,000 and less Number of motors: 5 Power of each motor: 1.5 + 2.2 + 0.55 + 0.75 + 0.75 kW Speed (for weight of 800 to 1500 grams): 1.5 to 3 meters per minute Maximum thickness: 150 mm New Design Specifications Dimensions: 3000 mm wide x 3820 mm long x 2850 mm high Grams per square meter: 5,000 and less Number of motors: 4 Power of each motor: 0.75 + 5.5 + 5.5 + 5.5 kW Speed (for weight of 800 to 1500 grams): 1.5 to 3 meters per minute Maximum thickness: 80 mm Additional Information More information is available upon request.
