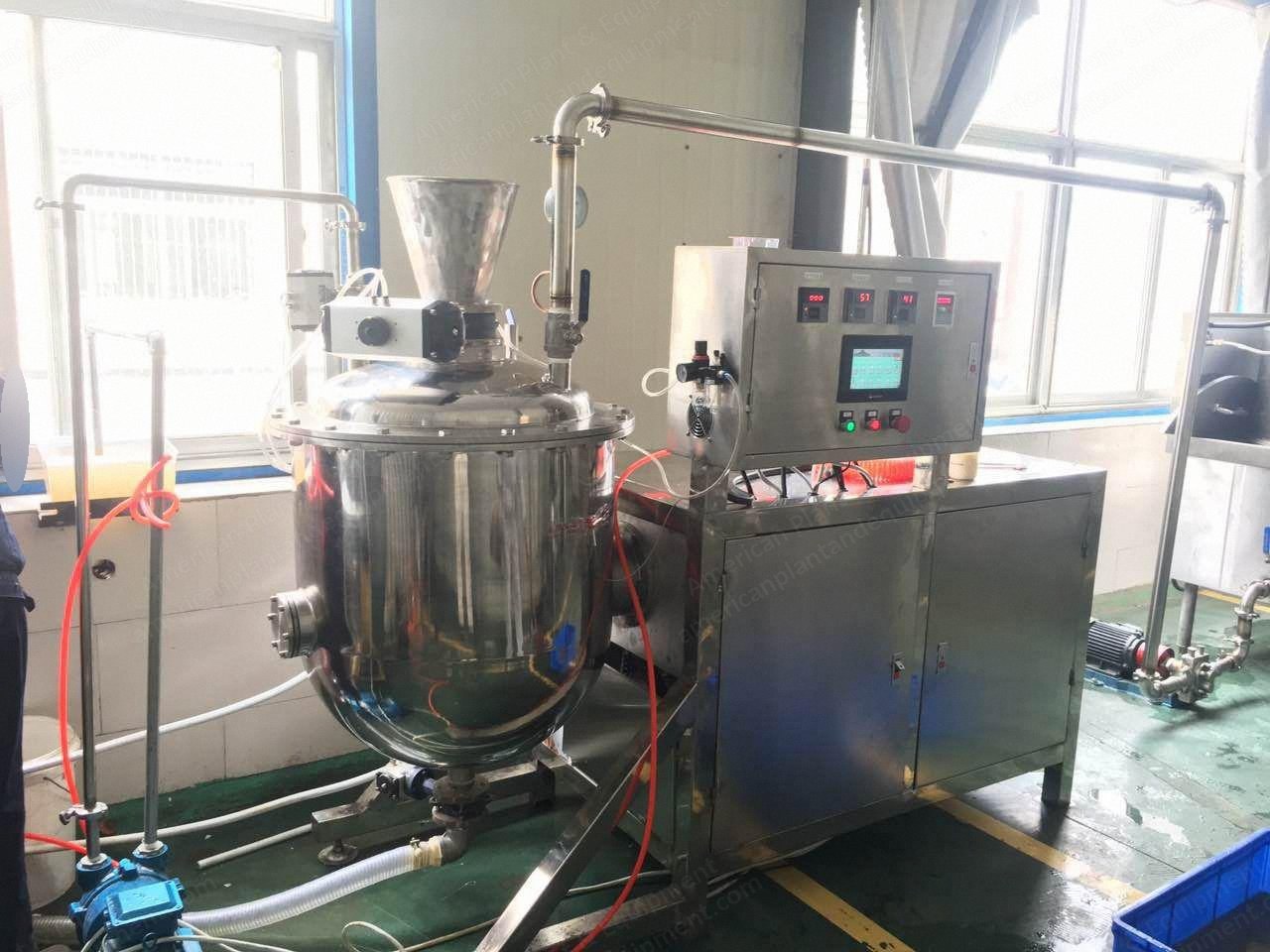

NovaStar, CY117, New, 100-150 kg/h Capacity, 4 Colors, 6 Heads, SS304 Steel (New)

NovaStar, CY117, New, 100-150 kg/h Capacity, 4 Colors, 6 Heads, SS304 Steel

Description

  1. Overview
    1. Consisting of two electromagnetic syrup cookers, one aerating pot, one heat insulation storage tank, one vibrating starch removal machine, one marshmallow screw extruding unit with cooling conveyor and cutting unit, and one set of pipes and valves.

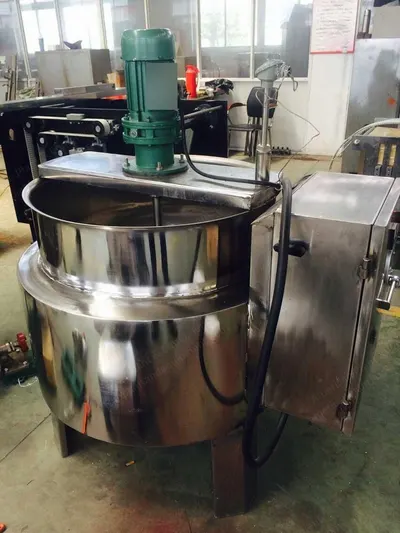

  2. Electromagnetic Syrup Cookers
    1. Quantity: 2 units.
    2. Model: X-800.
    3. Capacity: 150 liters each.
    4. Mixing power: 15 kW each.
    5. Weight: 300 kgs each.
    6. Dimensions: 1200 x 1500 mm each.
    7. One for melting sugar, and one for melting gelatin.
  3. Aerating Pot
    1. Model: X-800.
    2. With four color adjusting station.
    3. Stainless steel 304.
    4. Motor power: 7.5 kW.
    5. Dimensions: 1500 x CY117 x 1600 mm.
    6. For mixing gelatin.
    7. Weight: 600 kgs.

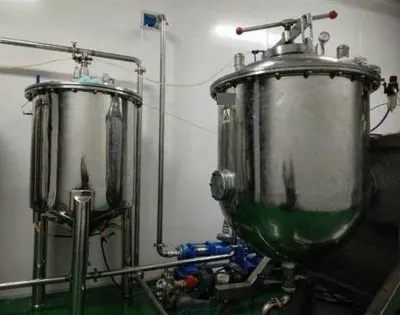

  4. Heat Insulation Storage Tank
    1. Model: X-800.
    2. Capacity: 200 liters.
    3. Total power: 3 kW.
    4. Dimensions: 600 x 600 x 1600 mm.
    5. Weight: 200 kgs.
  5. Vibrating Starch Removal Machine
    1. Model: X-800.
    2. Capacity: 100 kgs per hour.
    3. Total power: 2 kW.
    4. Stainless steel 304.
    5. Dimensions: 2000 x CY117 x 1000 mm.
    6. Weight: 160 kgs.

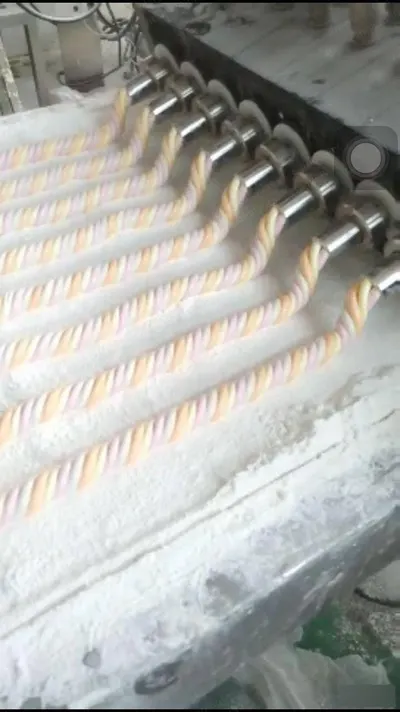

  6. Marshmallow Screw Extruding Unit With Cooling Conveyor And Cutting Unit
    1. Model: X-800.
    2. 4 colors, 6 heads.
    3. Total power: 7.5 kW.
    4. Weight: 1600 kgs.
    5. Dimensions: 18000 x 1500 x 1550 mm.
    6. Output capacity: 100 kgs per hour to 150 kgs per hour.
    7. Framework: SS304 steel.
    8. Conveyor belt: PU.
    9. Extruding nozzles: SS304 steel.
    10. Compressed air: 0.6 cubic meters per minute.
    11. Pressure: 0.5 to 0.6 MPa.
    12. Includes PLC cabinet, starch conveyor, screw extruding unit, forming, and cutting unit.
    13. Product shapes: square, screw, watermelon, and heart shapes.
  7. Pipes And Valves
    1. One set of pipes and valves.
  8. Additional Information
    1. More information is available upon request.
