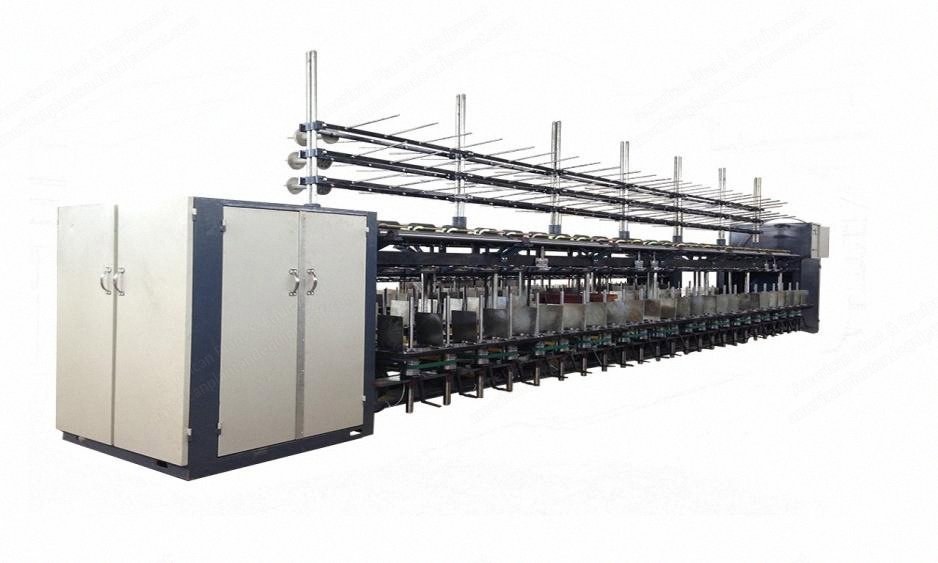

Description Primary Twister 8 spindles per group, 9 groups, 72 spindles total Lifting movement of traveler ring: 300 mm Spindle speed: 1800 to 2800 rpm Roller diameter: 57 mm Spindle distance: 208 mm Ring: 204 mm (8) Twisting direction: Z or S Includes 600 bobbins Bobbin size: 175 x 300 mm Length: 13 meters Machine width: 1100 mm Motor: 22 kW One machine with single motor, single frequency converter One machine with double motor, double frequency converter Secondary Twister 6 spindles per group, 7 groups, 42 spindles total Lifting movement of traveler ring: 300 mm Spindle speed: 1800 to 2100 rpm Roller diameter: 57 mm Spindle distance: 375 mm Ring: 254 mm (10) Twisting direction: Z or S Motor: 22 kW Length: 11 meters Machine width: 1100 mm One machine with single motor, single frequency converter One machine with double motor, double frequency converter Additional Equipment One winder, six spindles, 10 in traverse x 3.25 in (83 mm) Produces 1260 denier nylon (6) 2 ply = 2520 denier in Z-twist Then take that and twist it in S-twist or 3, 4, or 5 ends 1000 nylon hooks included per machine
