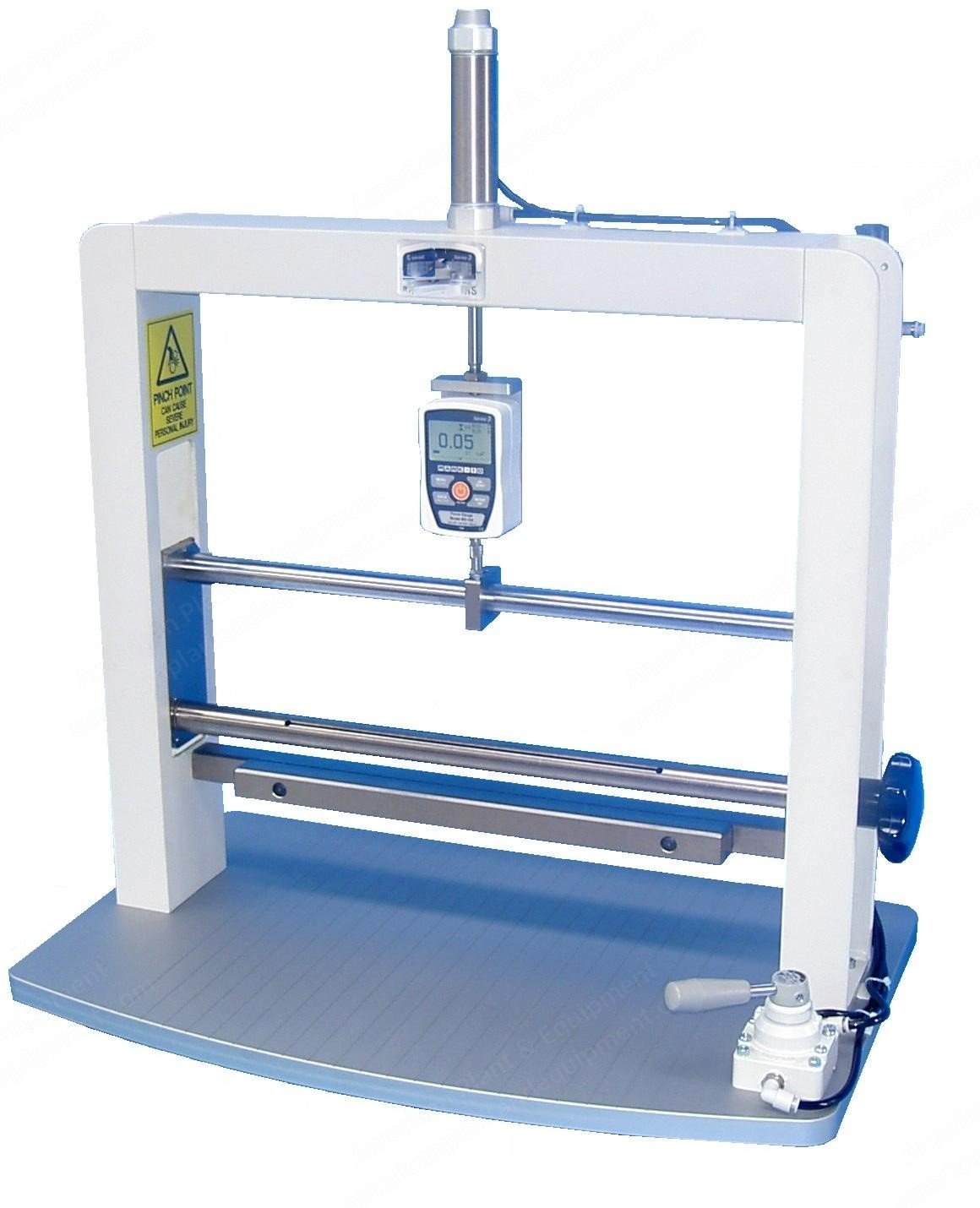

IDM, P0011, Page Pull Tester, 500 N Capacity, Max Book Width 300mm (New)

IDM, P0011, Page Pull Tester, 500 N Capacity, Max Book Width 300mm

Description

  1. Overview
    1. Pneumatic operation
    2. Powdercoated, sturdy construction
    3. Aluminium base plate with marked guide lines for central positioning
    4. Easy to use
    5. Fast results
    6. Accurate
  2. Applications
    1. Books
    2. Magazines
  3. Specifications
    1. Capacity/resolution of force gauge: 500 x 0.5 N, will read in lbf
    2. Digital force gauge with peak hold function
    3. Max book thickness: 60 mm
    4. Max book width: 300 mm
    5. Test results reading can be changed between lbf, kgf and N
    6. Reading can be exported to computer via USB output which communicates to the PC using Mark-10’s Mesur Lite data collection software (install disc included, please install along with its USB drivers before plugging in the gauge)
  4. Dimensions And Weight
    1. Height: 720 mm
    2. Width: 640 mm
    3. Depth: 400 mm
    4. Weight: 50 kg
  5. Connections
    1. Air supply: 80 psi
    2. Electrical: 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz (please specify when ordering)
  6. Force Gauge Specifications
    1. 9-12 V DC
    2. 500 mA
    3. Center positive polarity
    4. USB output on the force gauge
  7. Standards
    1. N/A
  8. Options
    1. Spacer block
    2. Custom sizes to suit larger books and magazines
  9. Spare Parts
    1. Clamp bar #0023-M-P0011-1
    2. Pull bar #0007-M-P0011-1
    3. Winding roller #0008-M-P0011-1
    4. Force gauge #0021-P-P0011-1
    5. Pneumatic cylinder #00070-PC-1-0
    6. Filter regulator #00069-PR1-0
    7. Flow controller #00021-PF1-0
    8. Hand valve #00023-PV1-0
    9. Hand knob #00018-HK1-0
