NovaStar, BR115, Potato Chip Production Line, 100 kg/h Capacity, Stainless Steel 304 (New)

NovaStar, BR115, Potato Chip Production Line, 100 kg/h Capacity, Stainless Steel 304

Description

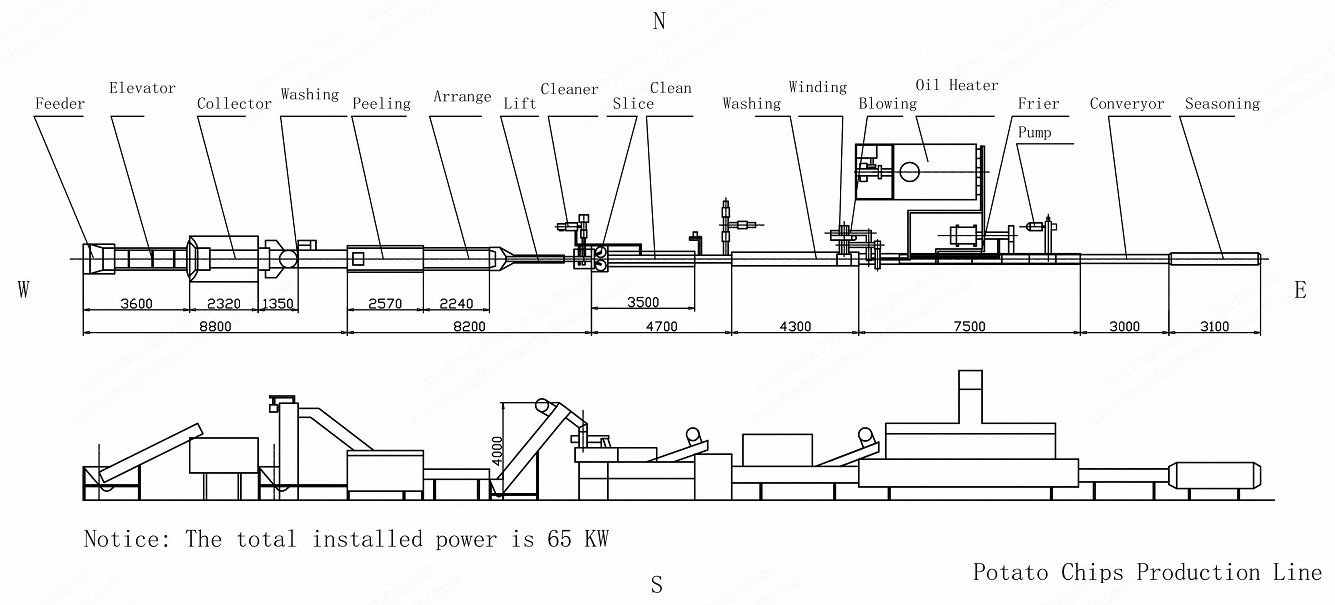

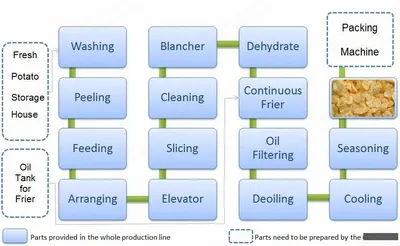

  1. Overview
    1. Complete potato processing line comprising washing, peeling, feeding, conveying, slicing, cleaning, blanching, dehydrating and frying equipment.
  2. Washing Machine
    1. Function: wash the potatoes with water.
    2. Motor: 1.1 kW.
    3. Includes speed reducer.
    4. 304 stainless steel container and frame.
    5. 304 stainless steel screw cleaner.
    6. Carbon steel valve.
    7. Size: 1.1 x 1.0 x 2.5 m.
    8. Weight: 300 kg.

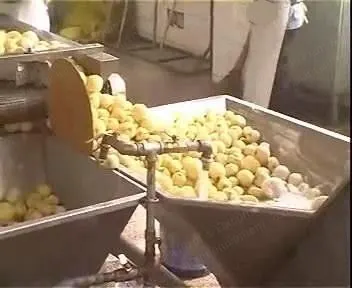

  3. Peeling Machine
    1. Function: used for peeling the potato (remove the skin of the potato).
    2. Motor: 0.75 kW.
    3. Transmission system with carborundum material for grinding.
    4. 304 stainless steel barrel and cover.
    5. 304 stainless steel frame, carbon steel grinding wheel, barrel liner.
    6. 304 stainless steel inlet and outlet hopper.
    7. Size: 1.0 x 0.9 x 1.4 m.
    8. Weight: 280 kg.

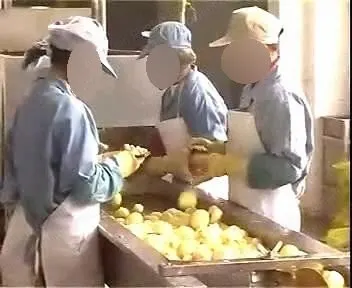

  4. Feeding Machine
    1. Function: feeding the washed and peeled potato to the conveyor.
    2. Control system.
    3. 304 stainless steel frame.
    4. 304 stainless steel container.
    5. Size: 0.7 x 0.7 x 1.8 m.
    6. Weight: 100 kg.
  5. Arrange Conveyor
    1. Function: select the suitable size potato and conveying to the next step.
    2. 304 stainless steel conveyor belt.
    3. 304 stainless steel frame.
    4. Motor: 0.55 kW.
    5. Stainless steel drive shaft, chain, chain wheel.
    6. Size: 4.0 x 0.6 x 1.2 m.
    7. Weight: 300 kg.

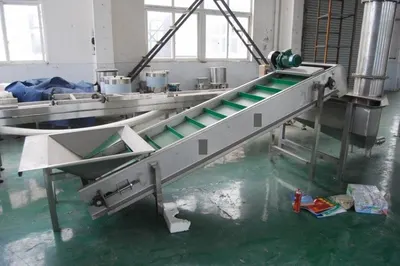

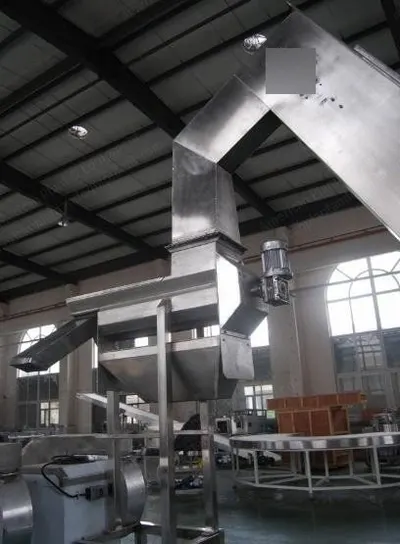

  6. Elevator / Lift
    1. Function: slope type conveyor, conveying the potato to the slice machine.
    2. 304 stainless steel conveyor belt.
    3. 304 stainless steel frame and hopper.
    4. Speed reducer: 0.75 kW.
    5. Stainless steel drive shaft, chain, chain wheel.
    6. Size: 2.5 x 0.8 x 2.2 m.
    7. Weight: 380 kg.
  7. Slicer
    1. Function: cutting the potato to slicer and chips; the thickness and size of each piece is adjustable by your requirement.
    2. Alloy steel frame.
    3. 304 stainless steel inlet.
    4. 304 stainless steel cover.
    5. Speed reducer: 1.5 kW.
    6. Size: 0.9 x 0.7 x 1.0 m.
    7. Weight: 200 kg.
    8. Knife, knife clamp and knife holder from Urschel.

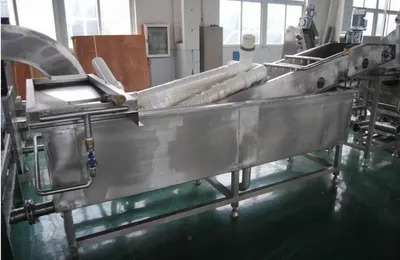

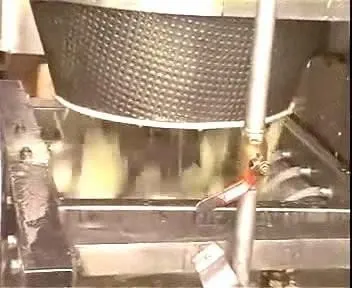

  8. Cold Water Cleaner
    1. Function: use cold water, washing the sliced potato to remove the starch on the surface.
    2. Two sets of speed reducers: 0.75 kW + 0.55 kW.
    3. Stainless steel conveyor belt.
    4. 304 stainless steel container, frame, cover, shaft, chain, chain wheel.
    5. 304 stainless steel drum.
    6. 304 stainless steel inlet hopper, pipe.
    7. 0.75 kW circulation pump.
    8. Size: 3.8 x 1.0 x 1.4 m.
    9. Weight: 600 kg.

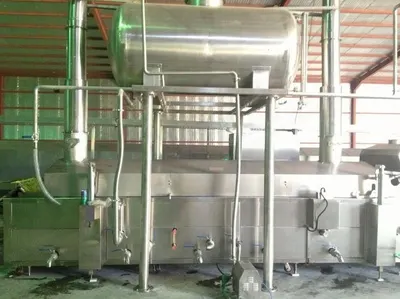

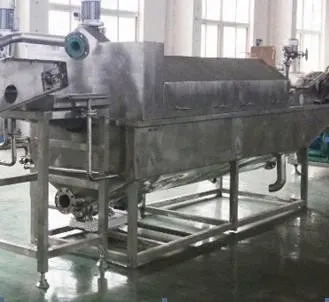

  9. Blancher
    1. Function: use hot water to balancing the potato for better oil frying.
    2. Speed reducers: 0.75 kW + 1.1 kW.
    3. 304 stainless steel drum.
    4. 304 stainless steel frame, container, cover, shaft, chain, chain wheel; safety anti-hot material.
    5. 304 stainless steel hot water generator.
    6. 304 stainless steel inlet hopper.
    7. 0.75 kW hot water pump, stainless steel pipe.
    8. Isolation materials.
    9. Size: 5.4 x 1.0 x 1.5 m.
    10. Weight: 750 kg.
  10. Dehydrate System
    1. Function: remove the water in the potatoes.
    2. 0.2 kW fans.
    3. Frequency converts control.
    4. Stainless steel conveyor belt.
    5. Heat exchanger, hot air pipe Ø200, blower.
  11. Continuous Frier
    1. No specifications provided.
