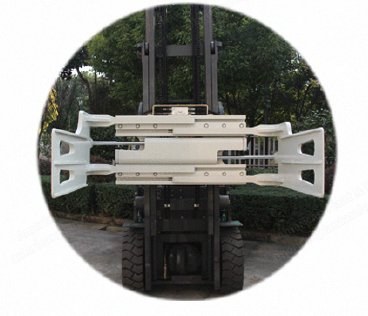

NovaStar, FK117, Bale Clamp Attachment for Forklifts, 1900kg Capacity, 450-1730mm Opening Range (New)

NovaStar, FK117, Bale Clamp Attachment for Forklifts, 1900kg Capacity, 450-1730mm Opening Range

Description

  1. Specifications
    1. Capacity: 1900 to 500 kgs (arm length 1000 mm, width 450 to 1730 mm, arm height 415 mm, arm thickness 65 mm, frame width 1040 mm, vertical center of gravity 218 mm, horizontal center of gravity 312 mm, weight 430 kg).
    2. Capacity: 1900 to 500 kgs (arm length 1200 mm, width 450 to 1730 mm, arm height 415 mm, arm thickness 65 mm, frame width 1040 mm, vertical center of gravity 218 mm, horizontal center of gravity 398 mm, weight 466 kg).
    3. Capacity: 2700 to 500 kgs (arm length 1000 mm, width 560 to 1900 mm, arm height 450 mm, arm thickness 70 mm, frame width 1015 mm, vertical center of gravity 252 mm, horizontal center of gravity 320 mm, weight 588 kg).
    4. Capacity: 2700 to 500 kgs (arm length 1200 mm, width 560 to 1900 mm, arm height 450 mm, arm thickness 70 mm, frame width 1015 mm, vertical center of gravity 252 mm, horizontal center of gravity 320 mm, weight 588 kg).
    5. Capacity: 2700 to 500 kgs (arm length 1000 mm, width 560 to 1900 mm, arm height 450 mm, arm thickness 70 mm, frame width 1015 mm, vertical center of gravity 252 mm, horizontal center of gravity 400 mm, weight 530 kg).
    6. Capacity: 2700 to 500 kgs (arm length 1200 mm, width 560 to 1900 mm, arm height 450 mm, arm thickness 70 mm, frame width 1015 mm, vertical center of gravity 252 mm, horizontal center of gravity 400 mm, weight 598 kg).
    7. Capacity: 2200 to 500 kgs (arm length 1200 mm, width 490 to 2300 mm, arm height 450 mm, arm thickness 70 mm, frame width 1600 mm, vertical center of gravity 250 mm, horizontal center of gravity 248 mm, weight 732 kg).
    8. Capacity: 2200 to 500 kgs (arm length 1200 mm, width 490 to 2300 mm, arm height 450 mm, arm thickness 70 mm, frame width 1600 mm, vertical center of gravity 250 mm, horizontal center of gravity 248 mm, weight 732 kg).
    9. Capacity: 2700 to 500 kgs (arm length 1000 mm, width 575 to 2150 mm, arm height 450 mm, arm thickness 70 mm, frame width 1220 mm, vertical center of gravity 250 mm, horizontal center of gravity 308 mm, weight 560 kg).
