Bematic, Automatex, Fehrer, Nonwoven Thermobonding Production Line, 1984 to 2016, 3600mm, 600 kg/h
Scroll to zoom
100%
Description
Overview
Allows for production in two technologies
Line is able to produce vertical wadding using the Fehrer K-12 4000 mm, year 1990 without high loft or producing horizontal wadding by using the bypass oven

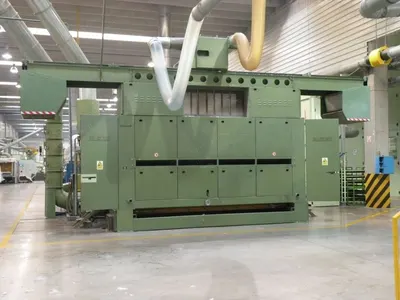

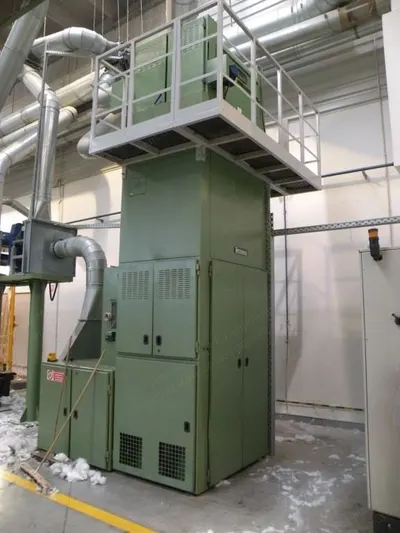

Technology 1: Vertical batt forming using Fehrer K-12
From 150 g/m² to 450 kgs per hour above 200 g/m² to 600 kgs per hour
Technology 2: Horizontal lapping
From 80 g/m² to 1500 g/m²
Max capacity of 80 g/m² to 250 kgs per hour
120 g/m² to 350 kgs per hour
200 g/m² to 450 kgs per hour
Above 200 g/m², max 600 kgs per hour at 6.7 dtex
60 mm fibers PES = 600 kgs per hour
Components

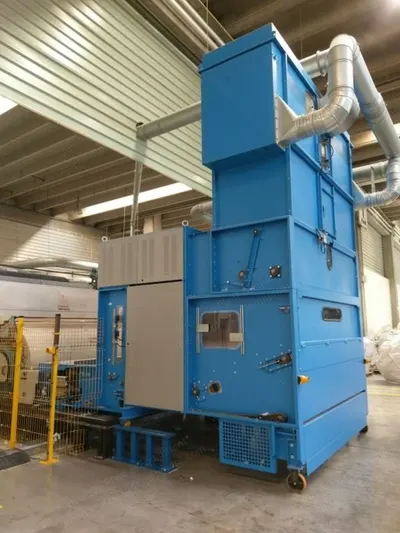

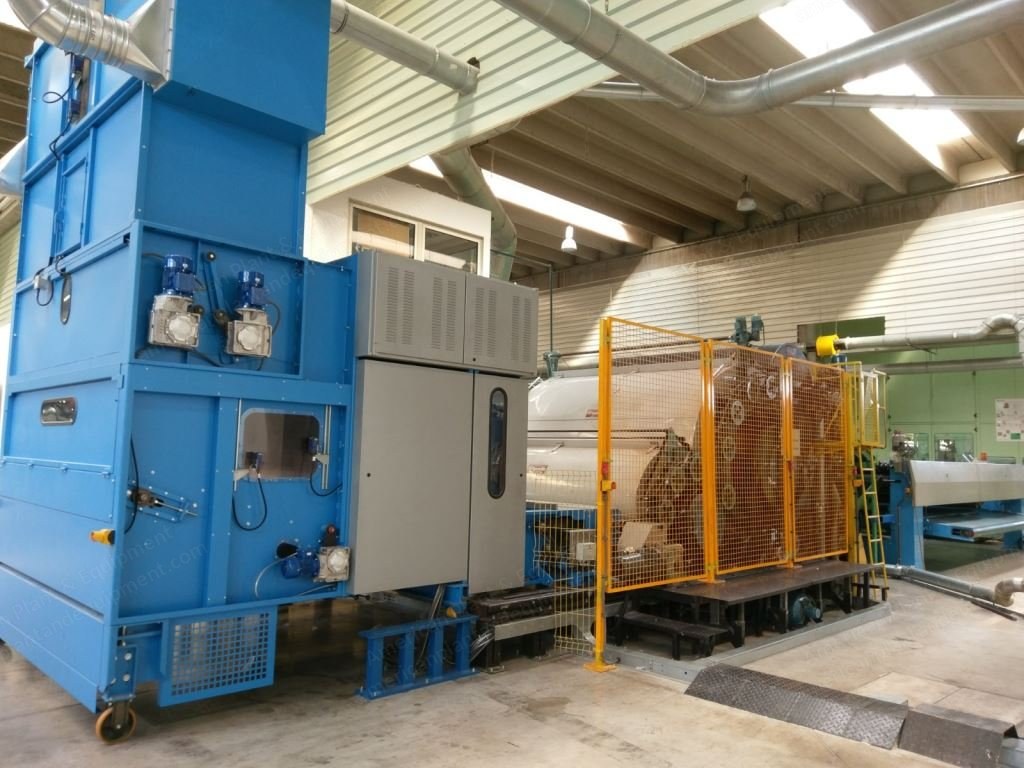

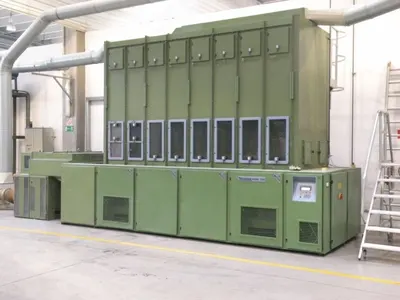

Bematic hopper feeder BCV feeding unit, year 2016, width 3000 mm

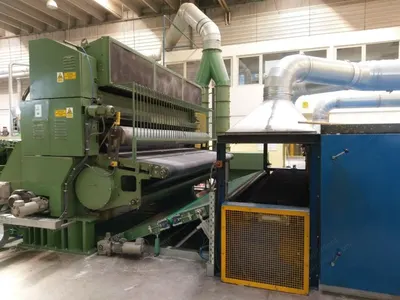

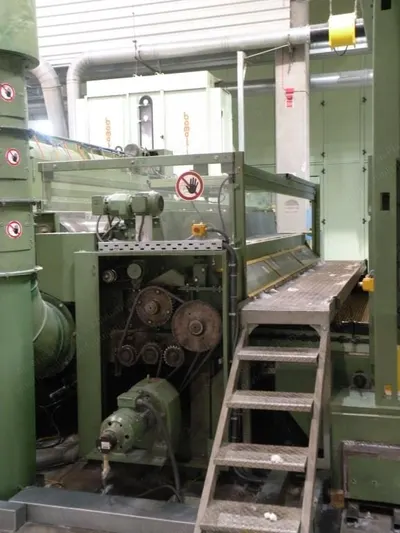

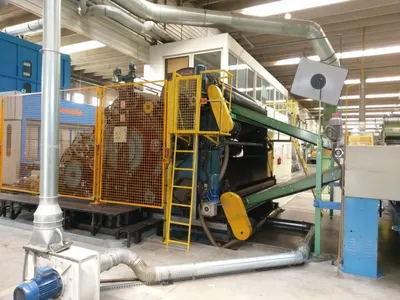

Bematic carding machine HL-30-SS, year 1984, width 3000 mm

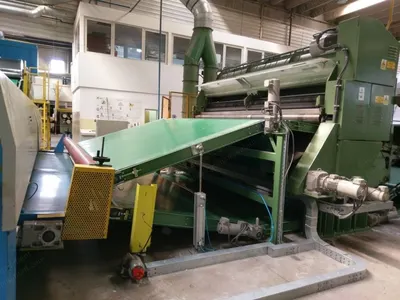

Automatex FA-2000/6 crosslapper, year 1997, renovated in 2009, inlet width 3000 mm, outlet width 4500 mm

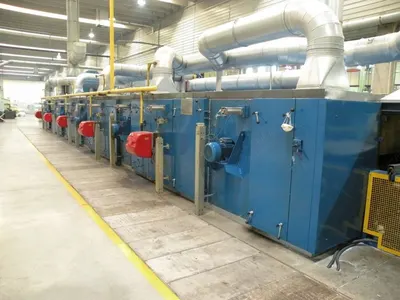

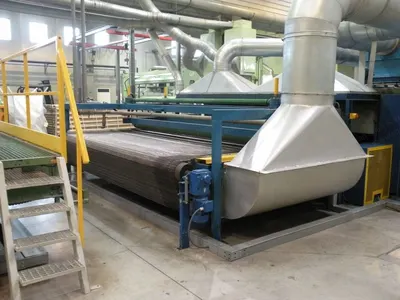

Promont 1PTB oven, year 2007, width 4000 mm, one level with 5 heating zones (4 meters long each) and one cooling zone (4 meters long)

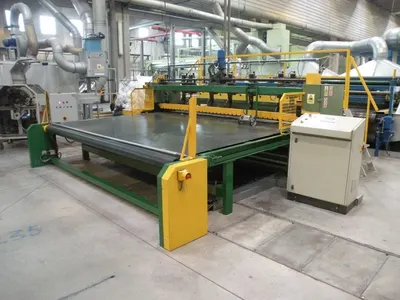

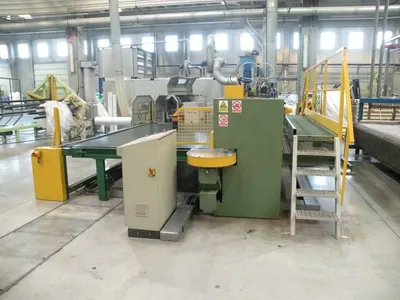

Cutting and winding
7 longitudinal knives
Transverse cutting with tape knives
Final product width: 3600 mm
Power connections
Rated power connections: 400 volts, 3 phase, 50 Hz, around 300 kW installed
Around 200 kWh effective
