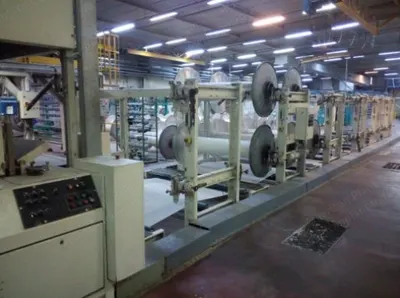

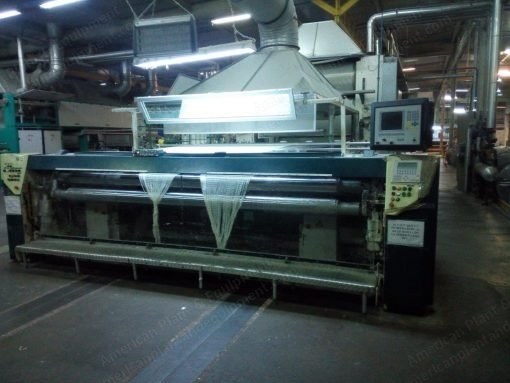

Sucker Muller Hacoba, C-40, 1999, 1800mm Pan Width, 3500mm Exit Width, 12 Cylinders

Sucker Muller Hacoba, C-40, 1999, 1800mm Pan Width, 3500mm Exit Width, 12 Cylinders

Description

  1. Overview
    1. Working width: 1800 mm
    2. 360 V alternating current motors
    3. Type: SD-C40
    4. Dryer type: ZS-12
    5. Beaming machine type: WE-10
    6. Mahlo humidity control type: RMRS-7
  2. Creel
    1. Creel ANP-8, 6 groups with 4 beams in each group = 24 beams total
    2. With return cylinders and brakes for each beam

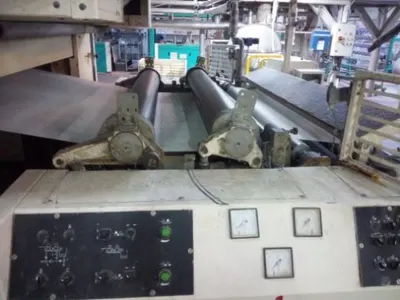

  3. First Sizing Box
    1. Type: SD-C40
    2. Width of the rolls is 2000 mm
    3. 2 pairs of squeezing rollers
    4. 1 x cylinder set
    5. 1 x engine on drawing cylinder
    6. 1 x engine on squeezing roller alternating current
    7. AC inverter / sizing recycling pump
  4. Second Sizing Box
    1. Type: SD-C40

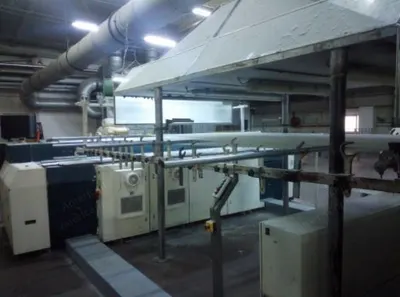

  5. Pre-Dryer Group
    1. 4 teflon drying cylinders + 1 extractor fan
  6. Final Dryer Group
    1. 8 cylinders (4 teflon) + 1 extractor fan
  7. Additional Equipment
    1. Waxing device: yes
    2. Group separator sortings: 18 supports, dust extraction hood
    3. Centralized control process: squeezing, stretching, temperature
    4. Sizing cooking system: Ramallumin from 700 liters final storage tank with power pump
