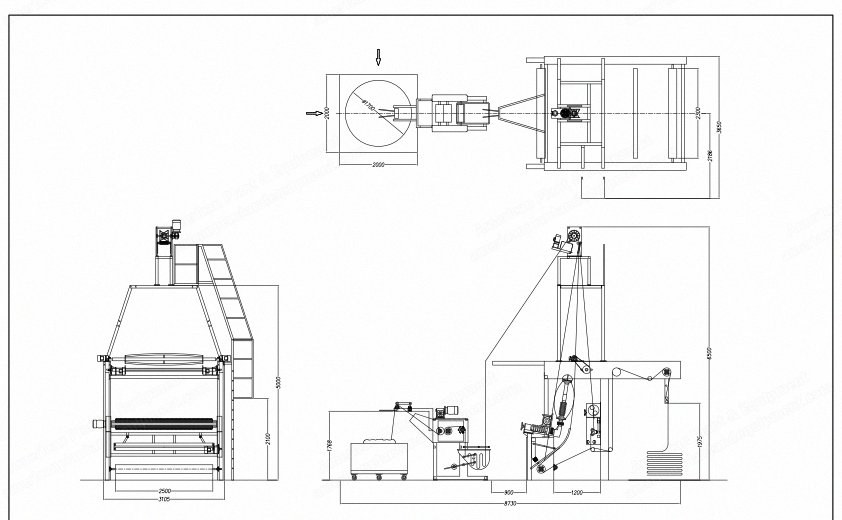

NovaStar, SR190, New, Automatic Slitting Opener with Squeezing, Width 1800mm (New)

NovaStar, SR190, New, Automatic Slitting Opener with Squeezing, Width 1800mm

Description

  1. Overview
    1. With squeezing, width 1800 mm.
    2. Model: 1800-EL.
    3. Slitting device 1800 mm wide.
    4. Speed: 5 to 80 meters per minute.
    5. Power: 480 volts, 60 Hz, 3 phase (or as per customer’s requirements).
    6. Compressed air: 7 kg/cm³.
  2. Turntable And Relaxed J-Box
    1. Turntable: SS41 steel made with stainless steel cover, rotation disc diameter 2000 mm. It is driven by hydraulic motor and this motor turning is controlled by detwisting head, also it can be controlled by manuals.
    2. Relax device: made of stainless steel.
    3. Photocell detector: if the rope type knitted fabrics is twisted or tangled, the detector will flash on and stop the machine.
    4. Press roll and squeezer: 2 rubber rollers and one press roller to remove the water, feed the fabric, it controlled by inverter.
    5. Relaxed trough: this trough is reduce the tension of feed fabrics, it accumulate the fabrics and control the feed fabrics speed.
    6. Safety device: when there are no fabrics in the trough, the whole system including de-twister will immediately stop.
  3. Detwister
    1. Body frame: made from stainless steel.
    2. Detwisting transmission: the rope type twisting power come from 3 wheels and it controlled by one 1/4 hp motor, with inverter controlled.
    3. Photocell detector: circular detector all protected by a safety cover.
    4. Driven: by one 2 hp motor with gear reducer, speed control by inverter.
  4. Beater
    1. Body frame: made by stainless steel tube and bearing.
    2. Electric motor: each beater is driven by 1 hp motor.
  5. Centering Device
    1. Body frame: made by SS41 steel.
    2. Scroll roller: 2 pcs of stainless steel scroll roller driven by 2 sets of 1 hp induction motor and center scroll roll can be adjusted by tandem.
    3. Detector and calibrator: by infrared detector and calibrated by air cylinder.
  6. Fabric Driven Roller And Plaiter
    1. Driven roller and transmission: the fabric driven rollers outside dia. 220 mm are covered by rubber and driven by one 2 hp inverter motor.
    2. Plaiter: controlled by one 2 hp inverter motor and the speed calibrated by potentiometer.
  7. Body Frame
    1. Frame: whole body frame is made of stainless steel.
    2. Stair and high stand platform: made by stainless steel plate and with safety fence.
  8. Control Cabinet
    1. Control box: control by push button, driver system by inverter brand “Danfoss”, electric components are brand “Fuji”.
  9. Automatic Slitting (E&L) Device
  10. Shipping
    1. Will be shipped in one 20 foot container.
