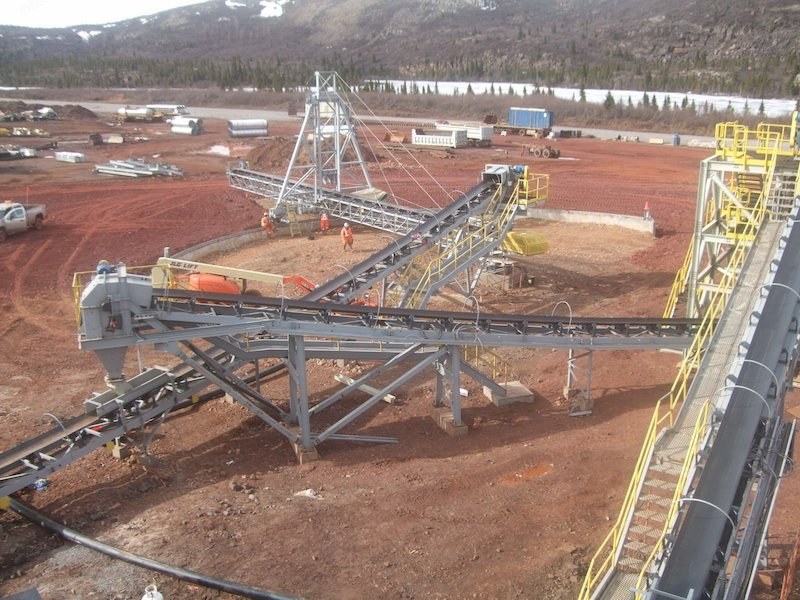

Complete Iron Ore Mining and Processing Plant

Complete Iron Ore Mining and Processing Plant

Description

  1. Overview
    1. Iron mine processing plant
  2. Hydrosizers
    1. Outotec hydrosizer, model LPF 2140T HM, ds# 7014
    2. Outotec hydrosizer, model LPF 2140T HM, ds# 7015
  3. Feeders
    1. Vibramech FCV-06 feeder, vibrating pan, 2.2 kW (2.9128 hp), ds# 7018
    2. Vibramech CCA-38 feeder, vibrating pan, 2.2 kW (2.9128 hp), ds# 7019
  4. Screens
    1. Vibramech lump vibrating screen, double deck, horizontal, 22 kW (29.128 hp), ds# 7022
  5. Desliming Cyclones
    1. Mill-Ore desliming cyclone #3, FLSmidth Krebs gMAX 15-3117, ds# 7030
    2. Mill-Ore desliming cyclone #1, FLSmidth Krebs gMAX 15-3117, ds# 7031
    3. Mill-Ore desliming cyclone #2, FLSmidth Krebs gMAX 15-3117, ds# 7032
    4. Mill-Ore desliming cyclone cluster, FLSmidth Krebs gMAX6 cyclo pack, ds# 7033
  6. Pan Filter
    1. FLSmidth pan filter, model HPF 10 m^3, 20.18 kW (27.00 hp), ds# 7037
  7. Thickener
    1. WesTech thickening cone, model THS 12, tank model TKE12, 4.103 kW (5.50 hp), ds# 7042
  8. Disc Filter
    1. WesTech vacuum disc filter, model FRV21H, 3.2 m diameter x 12 discs, 753.087 kW (1000.00 hp), ds# 7043
  9. Scrubbers
    1. Burhig ore scrubber #1, 90 kW (120.00 hp), ds# 7051
    2. Burhig ore scrubber #2, 90 kW (120.00 hp), ds# 7052
    3. Burhig ore scrubber #3, 90 kW (120.00 hp), ds# 7053
  10. Wet High Intensity Magnetic Separator (WHIMS)
    1. MBE WHIMS, model Jones DP-335, 125 kW, ds# 7054
  11. Pumps
    1. Canamix hydrosizer #2 underflow discharge tank pump #1, model CANAFLEX L80, 5.6 kW (7.51 hp), ds# 7055
    2. Canamix hydrosizer #2 underflow discharge tank pump #2, model CANAFLEX L80, 5.6 kW (7.51 hp), ds# 7056
    3. Canamix thickening cone underflow pump, model CANAFLEX L100, 15 kW (20.12 hp), ds# 7057
    4. Canamix thickening cone underflow pump (standby), model CANAFLEX L100, 15 kW (20.12 hp), ds# 7058
    5. KAD Industrial Services Inc. diesel powered water pump #1, Ruth pit water pump, ds# 7059
    6. KAD Industrial Services Inc. diesel powered water pump #2, Ruth pit water pump, ds# 7060
  12. Slurry Water Pumps
    1. Monoflo hydrosizer #1 lubrication water pump #1, model C22AC11RMH/E, 1.5 kW (2.01 hp), ds# 7089
    2. Monoflo hydrosizer #1 lubrication water pump #2, model C22AC11RMH/E, 1.5 kW (2.01 hp), ds# 7090
    3. Monoflo hydrosizer #2 lubrication water pump #1, model C22AC11RMH/E, 1.5 kW (2.01 hp), ds# 7091
    4. Monoflo hydrosizer #2 lubrication water pump #2, model C22AC11RMH/E, 1.5 kW (2.01 hp), ds# 7092
    5. Monoflo gland seal water pump, model 3ML3, 1.5 kW (2.01 hp), ds# 7093
    6. Monoflo gland seal water pump #1, model C1XDC10RMA/E, 1.5 kW (2.01 hp), ds# 7094
    7. Monoflo gland seal water pump #2, model C1XDC10RMA/E, 1.5 kW (2.01 hp), ds# 7095
    8. Monoflo gland seal water pump #3, model C1XDC10RMA/E, 1.5 kW (2.01 hp), ds# 7096
  13. Conveyors
    1. Metso under-crusher conveyor, ds# 7006
    2. TS Manufacturing scrubber #1 feed conveyor, 18.8 kW (25.21 hp), ds# 7097
    3. TS Manufacturing scrubber #2 feed conveyor, 18.8 kW (25.21 hp), ds# 7098
    4. TS Manufacturing scrubber #3 transfer conveyor, 18.8 kW (25.21 hp), ds# 7099
    5. TS Manufacturing scrubber #3 feed conveyor, 18.8 kW (25.21 hp), ds# 7100
    6. TS Manufacturing lump ore transfer conveyor, 18.8 kW (25.21 hp), ds# 7101
    7. TS Manufacturing oversize recycle conveyor, 18.8 kW (25.21 hp), ds# 7102
    8. TS Manufacturing crushed ore recycle conveyor, 18.8 kW (25.21 hp), ds# 7103
