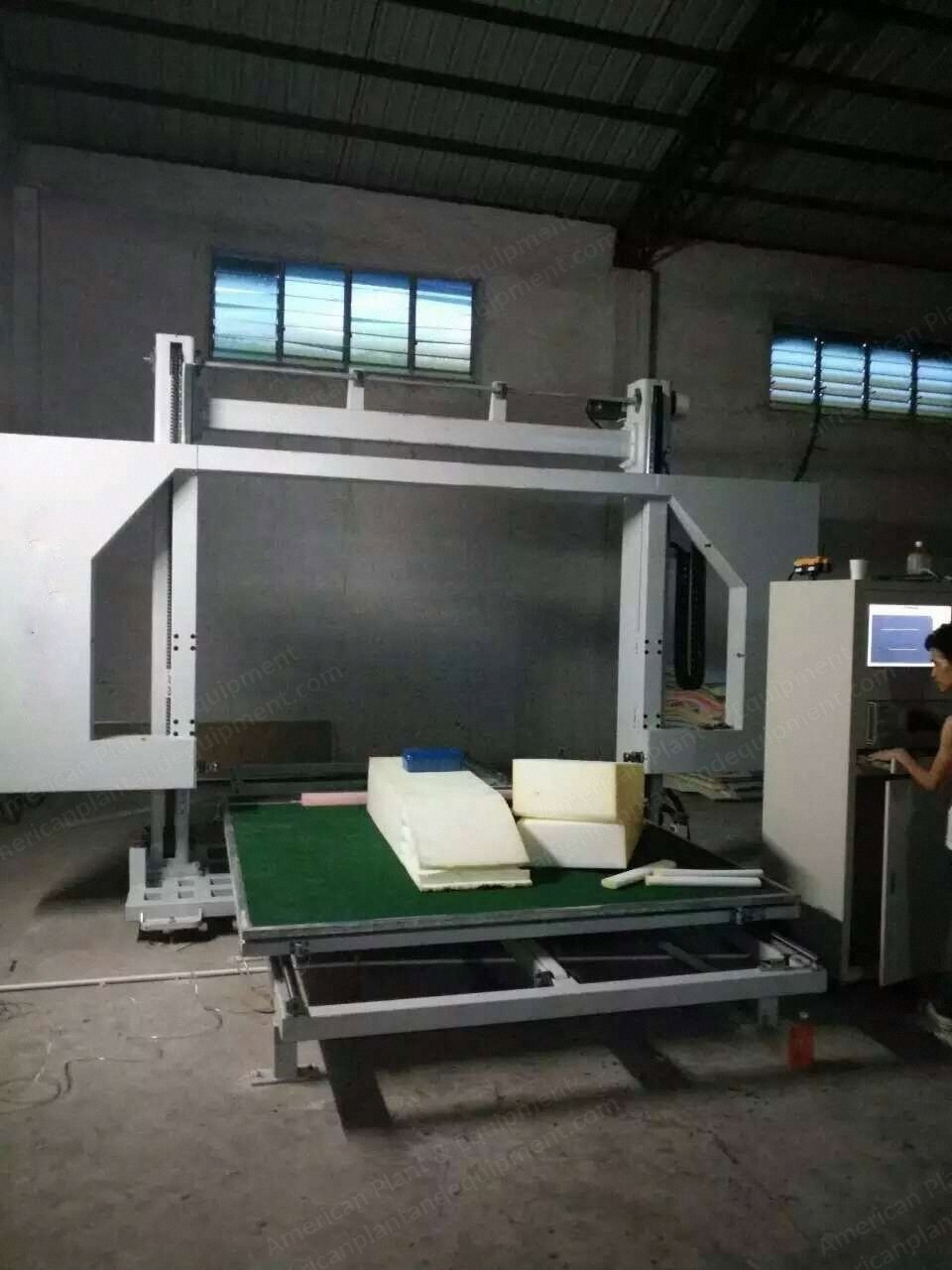

NovaStar, FN366, CNC Horizontal Cycle Knife Foam Cutting Machine, 2500x2200x1100mm, 4.5 kW (New)

NovaStar, FN366, CNC Horizontal Cycle Knife Foam Cutting Machine, 2500x2200x1100mm, 4.5 kW

Description

  1. Overview
    1. Max processing length: 2500 mm
    2. Max processing width: 2200 mm
    3. Max processing height: 1100 mm
    4. Processing precision: ±0.5 mm
    5. Min cutting size radius: 10 mm
  2. Specifications
    1. Vibration blade speed: 0 to 40 meters per minute
    2. Blade size: 9000 x 3 x 0.6 mm
    3. Operating system of computer: Windows 7
    4. Compressed air: 6 bar
    5. Total power: 4.5 kW / 8.5 kW
    6. Total weight: 2800 kg
    7. Dimensions: 5000 mm long x 4000 mm wide x 2800 mm tall
  3. Condition
    1. Blade break protection: included
    2. Self-diagnosis system: included
