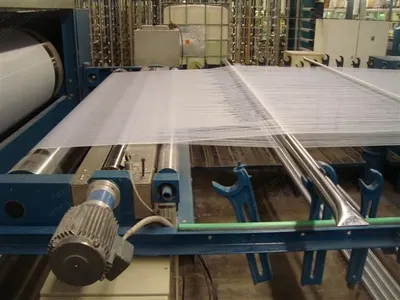

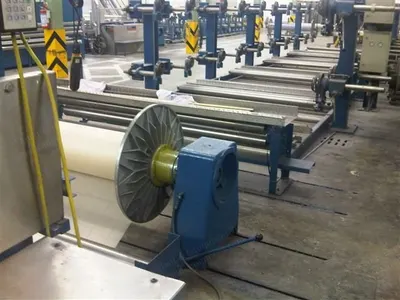

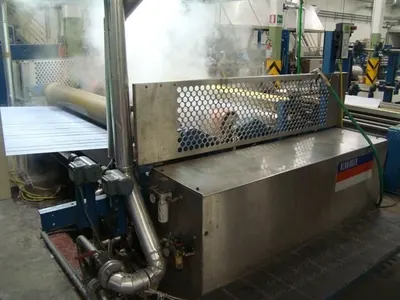

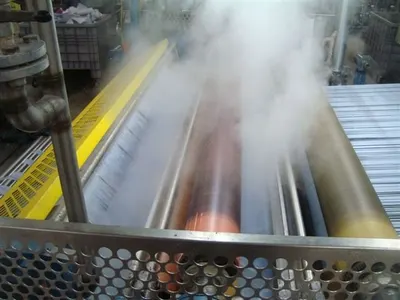

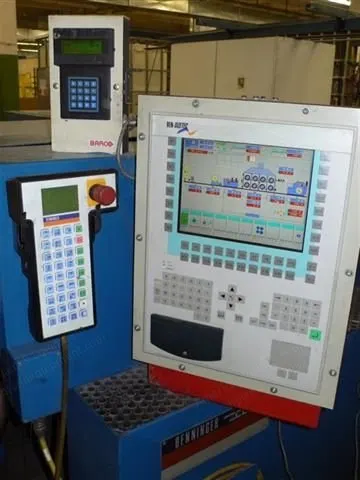

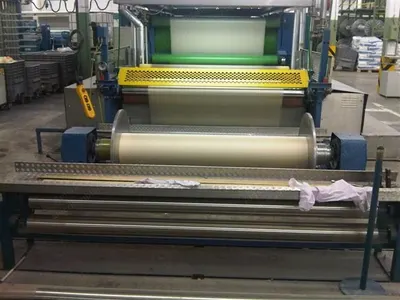

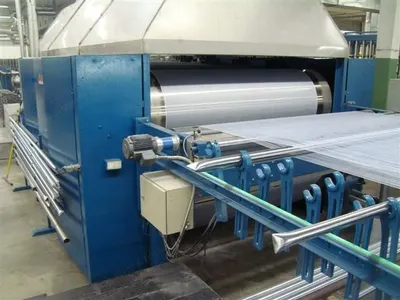

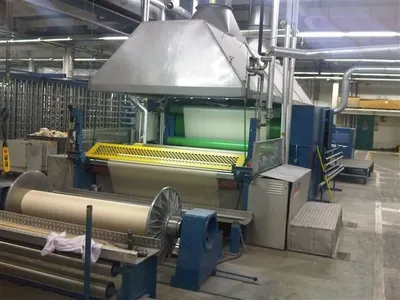

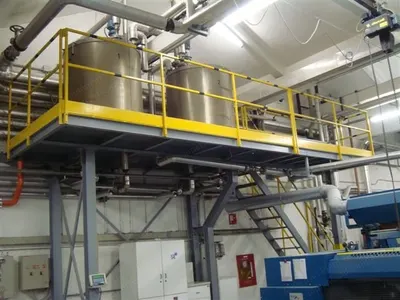

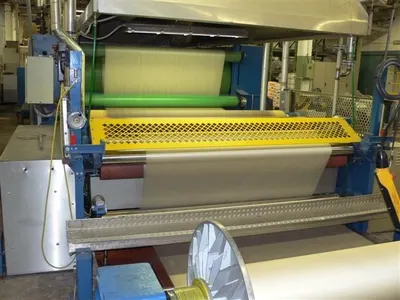

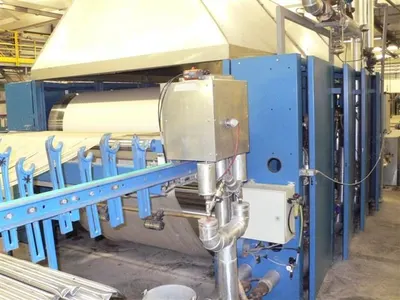

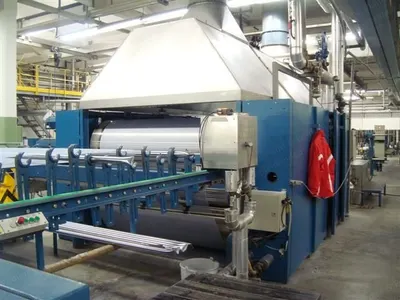

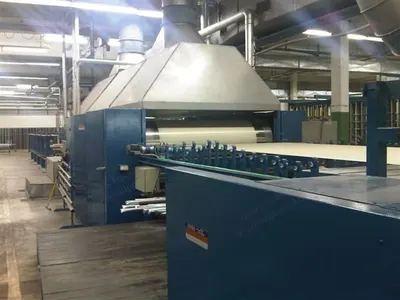

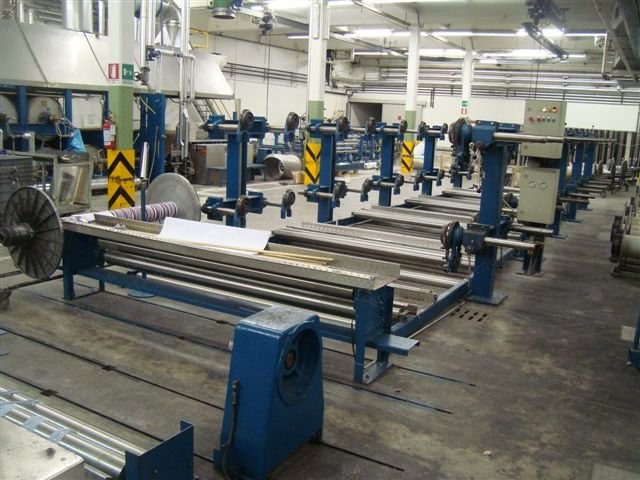

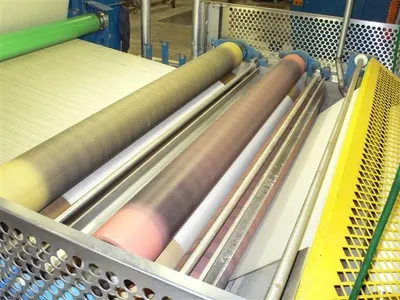

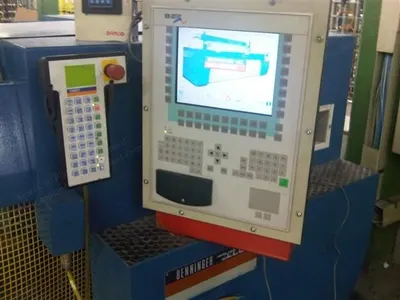

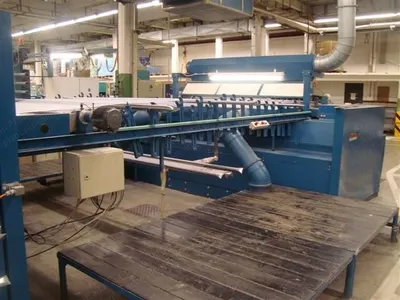

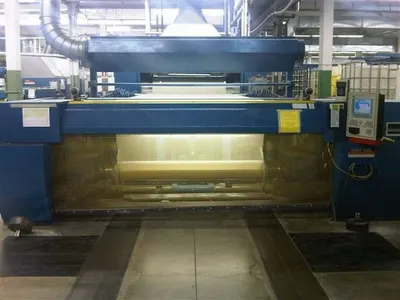

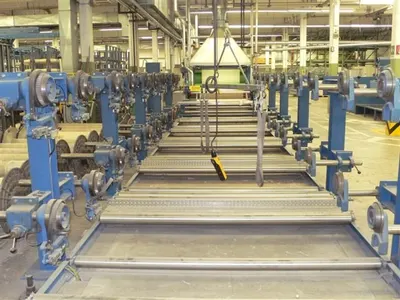

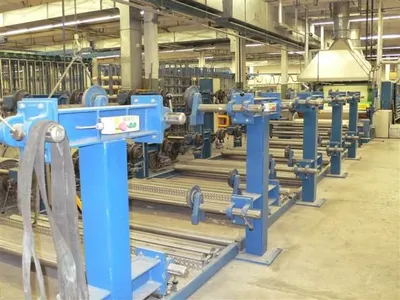

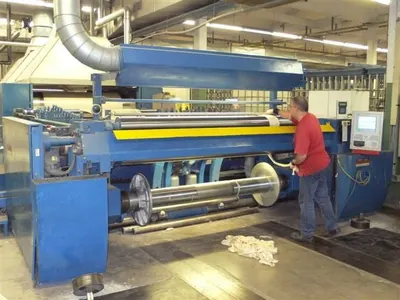

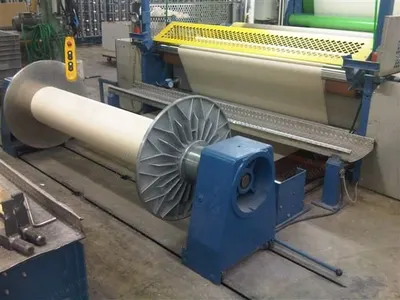

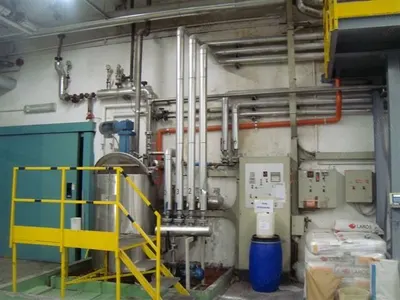

Description Overview Sectional beam un-winder desk, model SWA Sectional cloth rollers un-winder desk for 20 positions Sizing unit (Marne) TDK Division of humid cotton by 2 bars with load cell for tension control Drying machine with cylinders model ZT8 – W.220 Desc/division area at dry cotton Residual humidity control device Mahlo type RMS-7S Beam winding at high production model BB for beam till Ø1000mm Ben Sizetec process automatizzator Sectional Beam Un-Winder Desk Model SWA With load cell for the exit tension Max diameter of the beam 1000mm Un-winder electro-pneumatic regulation brake lining Sizing Unit (Marne) TDK W.2200mm (W.2400 between the cylinders) Stainless steel tube – capacity 240L – with heated with direct steam Reserve tube with double bottom with indirect heating Direct and automatic feeding of sizing Composed of introduction group with 3 rollers: take-up rubber rollers 205mm diameter and 2 accompany rollers in stainless steel 2 x diving cylinders (squeezing by springs) 2 x sets of squeezing cylinders, in hard rubber, diameter 205mm Automatic regulation of squeezing pressure 1 x drive Handimat Division of Humid Cotton By 2 bars Load cell for tension control Drying Machine with Cylinders Model ZT8 – W.220 8 x drying cylinders (nr.2 with Teflon) 4 x temperature regulations 2 x fan with chimney 1 x dancing cylinder electronic pneumatic in the exit + tension control 1 x oiling and waxing device model CV Desc/Division Area at Dry Cotton With nr.7 bars for sectional beams 19 bars for direct warp Residual Humidity Control Device Mahlo type RMS-7S Beam Winding at High Production Model BB for Beam Till Ø1000mm Warp take-up group at 3 cylinders 1 x pressing device 1 x automatic beam load and unload with adapter for Vamatex and Dornier 1 x expanding reed with lowing cylinder and checking mirror 1 x lighting for beams 1 x Handimat 1 x application tape device 1 x dust aspiration device Ben Sizetec Process Automatizzator Hardware with primary elaborator and hardware PLC Software primary elaborator and software PLC (Siemens S5 – CPU 928B)
